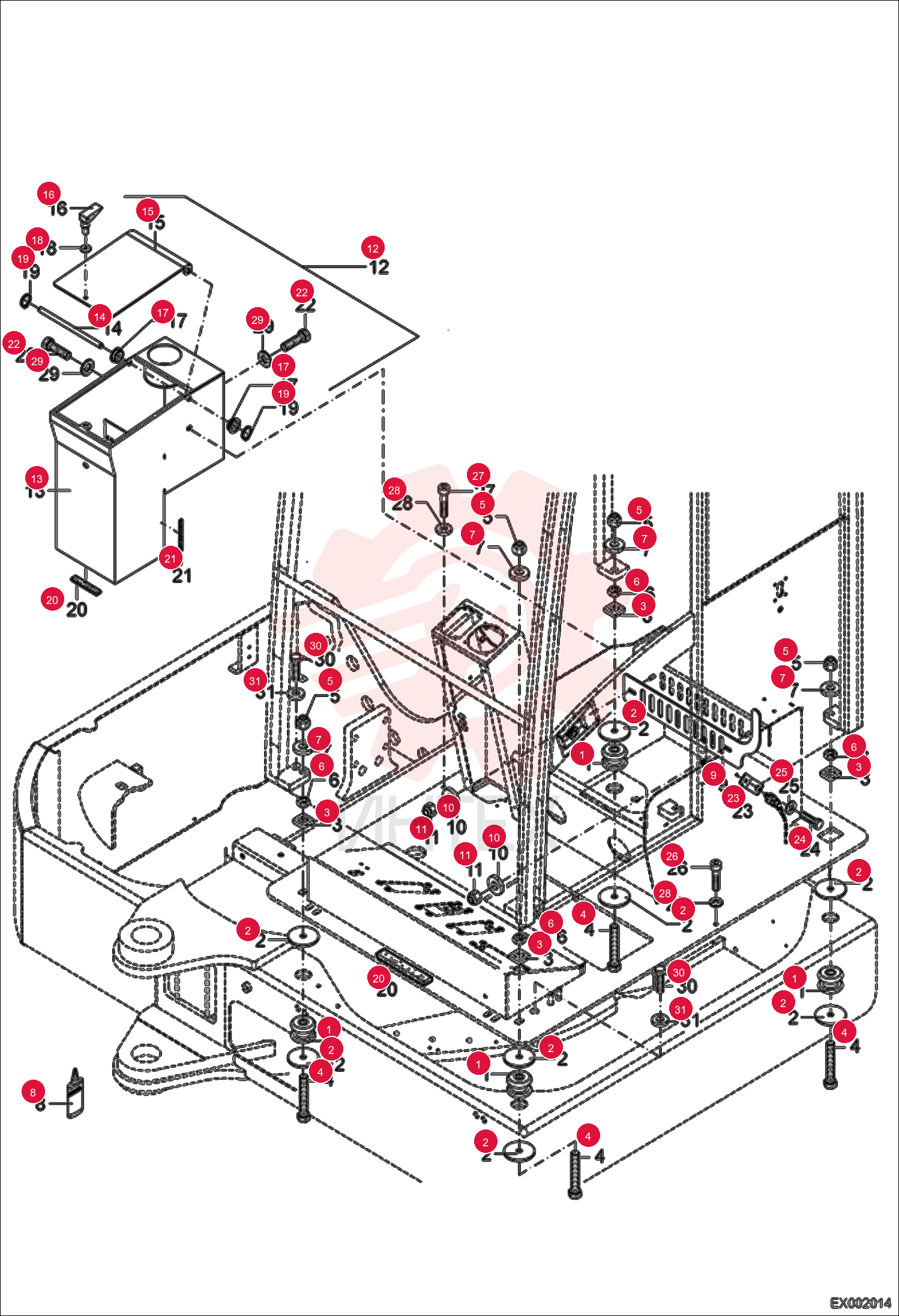

RUBBER MOUNT 5101290962

RUBBER MOUNT 5101290962

RUBBER MOUNT 5101290962

1 5101290962

  • 5101290962 - RUBBER MOUNT

2 5153656312

  • 5153656312 - SHIM

3 0190026081

  • 0190026081 - TORSION LOCK

4 1008707237

  • 1008707237 - BOLT

5 1212251015

  • 1212251015 - NUT

6 1211707015

  • 1211707015 - NUT

7 1343707063

  • 1343707063 - WASHER

8 5075632325

  • 5075632325 - THREADLOCKER

9 6190026090

  • 6190026090 - AIR BAFFLE

10 1307707018

  • 1307707018 - WASHER

11 1212251011

  • 1212251011 - NUT

12 6190026068

  • 6190026068 - BOX
  • W/Ref. 13-19

13 6190026070

  • 6190026070 - BOX

14 0190026077

  • 0190026077 - SHAFT

15 6190026078

  • 6190026078 - COVER

16 5354606001

  • 5354606001 - LOCKING

17 5657199001

  • 5657199001 - PLAIN BEARING

18 1307707014

  • 1307707014 - WASHER

19 1455622311

  • 1455622311 - CIRCLIP

20 5354640120

  • 5354640120 - RUBBER

21 5354600020

  • 5354600020 - RUBBER
  • 1 METER

22 1008707018

  • 1008707018 - BOLT

23 6190026032

  • 6190026032 - BRACKET

24 1008707213

  • 1008707213 - BOLT

25 1290707014

  • 1290707014 - WASHER

26 1045707430

  • 1045707430 - BOLT

27 1045707730

  • 1045707730 - BOLT

28 1343707061

  • 1343707061 - WASHER

29 1290707018

  • 1290707018 - WASHER

30 1008707124

  • 1008707124 - BOLT

31 1343707059

  • 1343707059 - WASHER
