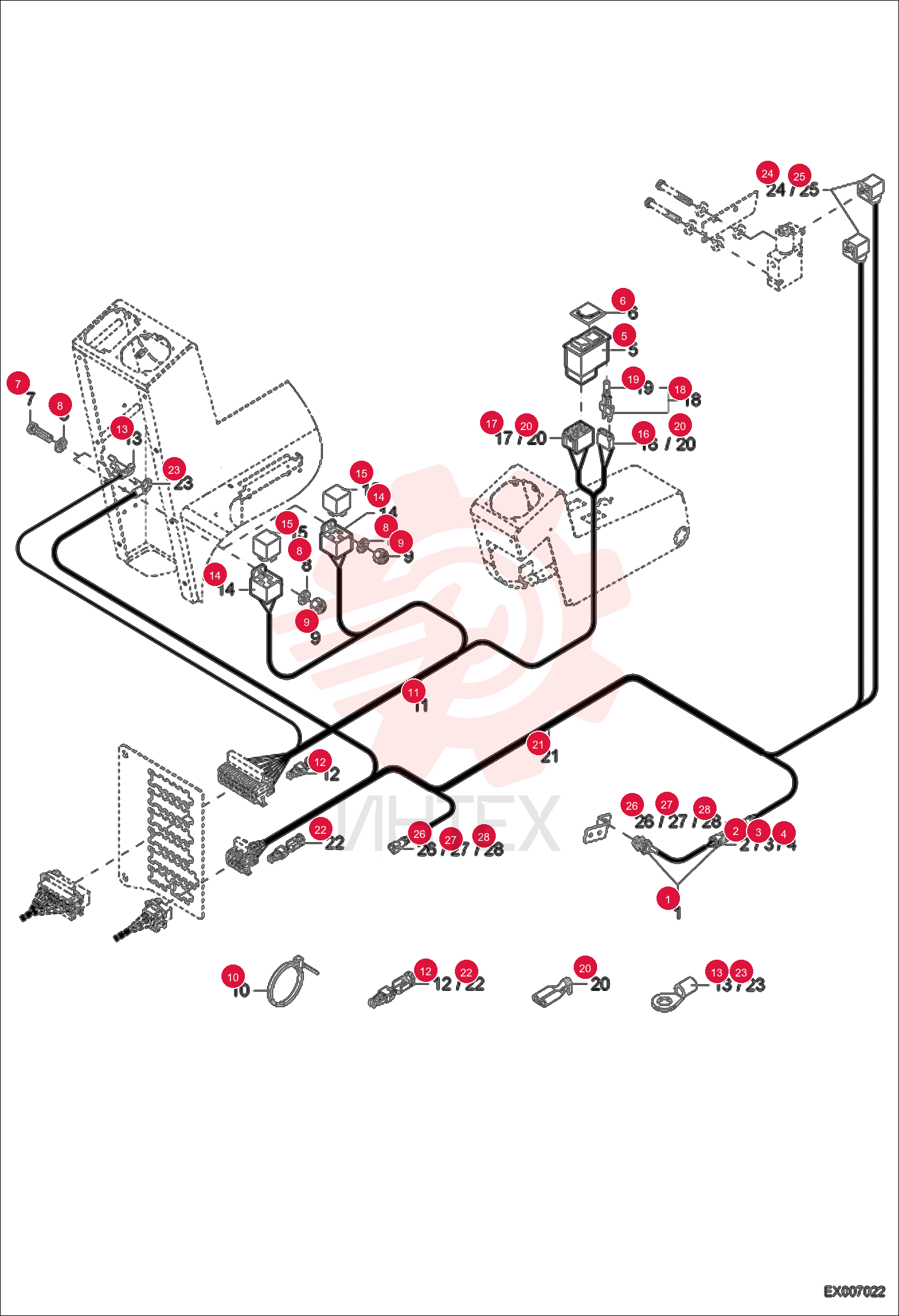

SWITCH 5350639017 (1)

SWITCH 5350639017 (1)

SWITCH 5350639017 (1)

1 5350639017

  • 5350639017 - SWITCH
  • W/Ref. 2-4

2 5350555315

  • 5350555315 - HOUSING (MALE)

3 5350555307

  • 5350555307 - LOCK

4 5350555321

  • 5350555321 - MALE TERMINAL

5 5050651363

  • 5050651363 - ROCKER SWITCH

6 5358650266

  • 5358650266 - SYMBOL
  • boom height limitation

7 1008707909

  • 1008707909 - BOLT

8 1290707012

  • 1290707012 - WASHER

9 1212251007

  • 1212251007 - NUT

10 5653093560

  • 5653093560 - BINDER

11 0234241030

  • 0234241030 - WIRE HARNESS
  • W/Ref. 12-20 - Was 0207741030

12 5350249552

  • 5350249552 - CONNECTOR

13 5350246610

  • 5350246610 - CABLE CONNECTOR

14 5050093090

  • 5050093090 - RELAY BRACKET

15 5050247335

  • 5050247335 - RELAY

16 5050650231

  • 5050650231 - HOUSING

17 5050650225

  • 5050650225 - HOUSING

18 5050650226

  • 5050650226 - LAMP

19 1813000021

  • 1813000021 - ROUND BULB
  • Was 1913000021

20 5350246805

  • 5350246805 - TERMINAL FEMALE

21 0234241031

  • 0234241031 - WIRE HARNESS
  • W/Ref. 22-28 - Was 0207741031

22 5350249552

  • 5350249552 - CONNECTOR

23 5350249597

  • 5350249597 - CABLE CONNECTOR

24 5552659550

  • 5552659550 - BOX
  • W/Ref. 25

25 5552659513

  • 5552659513 - SEAL

26 5350555317

  • 5350555317 - HOUSING (FEMALE)

27 5350555308

  • 5350555308 - LOCK

28 5350555325

  • 5350555325 - FEMALE TERMINAL
