Главная
/
Бренды
/
Bobcat
/
463
/

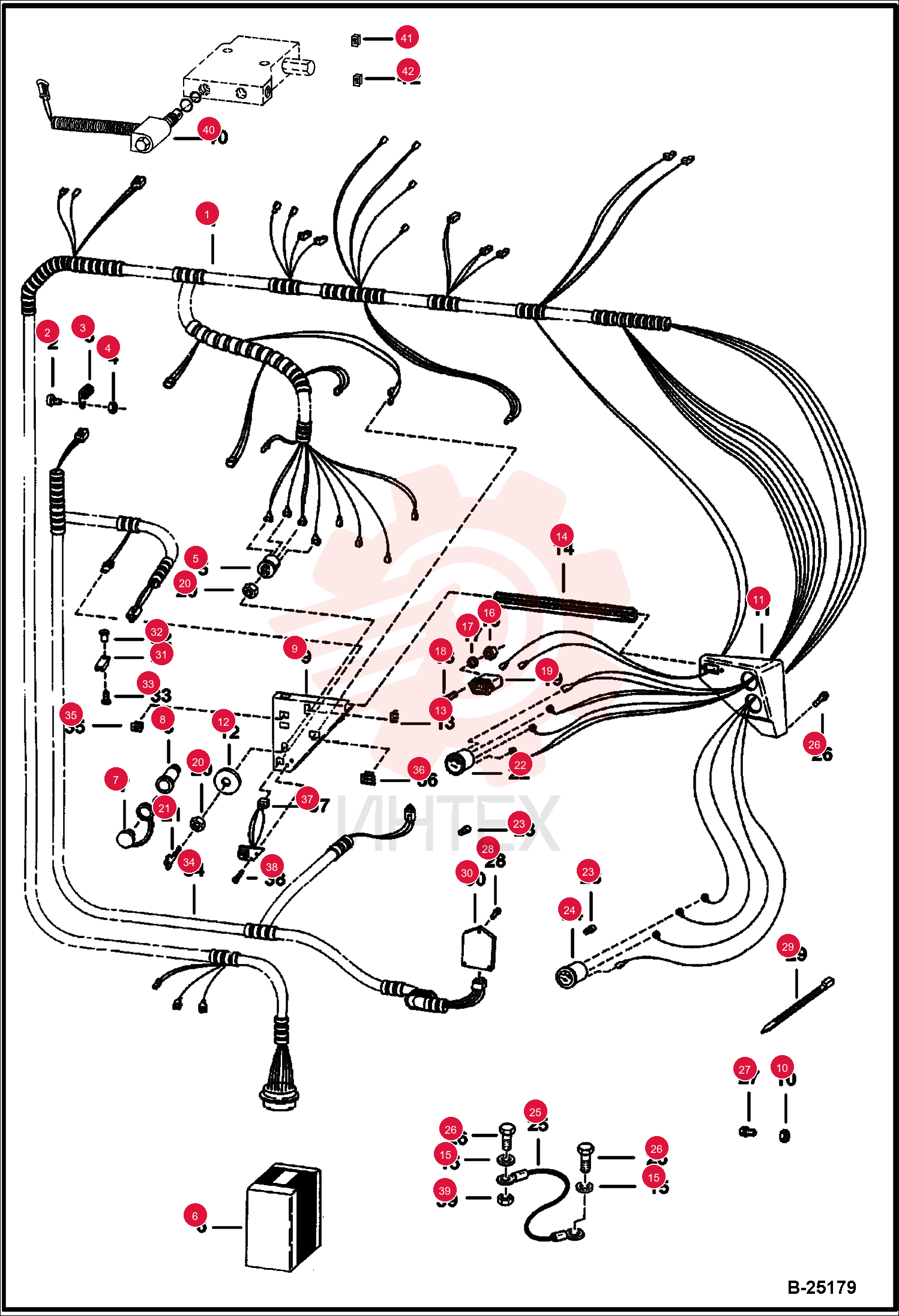

HARNESS CAB 6729788

HARNESS CAB 6729788

HARNESS CAB 6729788

1 6729788

  • 6729788 - HARNESS CAB
  • cab

2 6707498

  • 6707498 - HARNESS
  • cab

3 35C410

  • 35C410 - SCREW HEX HD W/F GR5

4 30H56

  • 30H56 - CLIP INSULATED

5 83D4

  • 83D4 - LKNUT HEX FLG GR8

6 6665606

  • 6665606 - SWITCH
  • IGN

7 6724282

  • 6724282 - KIT
  • SWITCH IGN
  • W/Ref. 5
  • 12 & 21

8 6664224

  • 6664224 - CAP
  • European

9 6664223

  • 6664223 - OUTLET ELECTRICAL
  • Electrical - European

10 6708425

  • 6708425 - PANEL
  • Domestic

11 6708426

  • 6708426 - INSTPANEL
  • European

12 6730034

  • 6730034 - PANEL 400/500 INSTR

13 12D4

  • 12D4 - NUT

14 6708584

  • 6708584 - PANEL

15 6709028

  • 6709028 - PLATE 10
  • brake start

16 6636018

  • 6636018 - LIGHT INDICATOR
  • indicator

17 6531618

  • 6531618 - CROSSMEMBER INSTR

18 25E15

  • 25E15 - WASHER FLAT PLAIN

19 12D6

  • 12D6 - NUT HEX MACH SCREW

20 12E6

  • 12E6 - WASHER

21 85G608

  • 85G608 - SCREW

22 6664886

  • 6664886 - METER HOUR

23 6674202

  • 6674202 - NUT

24 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

25 6669664

  • 6669664 - GAUGE VOLT
  • W/O clamp

26 6599696

  • 6599696 - SOCK AND BULB
  • assy

27 895771

  • 895771 - #161 BULB

28 6669663

  • 6669663 - GAUGE COOLANT TEMP
  • eng temp - W/O clamp

29 6594283

  • 6594283 - WIRE ASSY NEGATIVE
  • ground

30 6702642

  • 6702642 - SCREW WSHRD PLASTITE

31 84G3112

  • 84G3112 - SCREW THD ROLLING TT

32 91G412

  • 91G412 - SCREW
  • cross recess pan head

33 25G412

  • 25G412 - SCREW SKT BTN HD CAP
  • hex socket button head

34 6610510

  • 6610510 - STRAP
  • TIE 10

35 6680411

  • 6680411 - CONTROLLER
  • PEDALS FOOT BICS
  • Was 6674222

36 6680411REM

  • 6680411REM - CONTROLLER
  • PEDALS FOOT BICS

37 6665000

  • 6665000 - BRACKET MOUNTING

38 6665321

  • 6665321 - RIVET PLASTIC MALE
  • plastic male

39 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • plastic female

40 6717581

  • 6717581 - HARNESS
  • controller

41 6729863

  • 6729863 - HARNESS CONTROLLER
  • controller

42 6665314

  • 6665314 - PLUG ROCKER SW
  • domestic - Was 6719038

43 6665410

  • 6665410 - SWITCH
  • HEADLIGHT
  • European

44 6665318

  • 6665318 - SWITCH
  • glow plug

45 6674220

  • 6674220 - SWITCH
  • OVERRIDE TRACTION
  • push to operate

46 6669225

  • 6669225 - SCREW
  • Was 58G000408B

47 61D5

  • 61D5 - NUT HEX FINISHED GR5

48 6672863

  • 6672863 - VALVE
  • SOLENOID

49 6668814

  • 6668814 - SWITCH
  • bucket level - Was 6665319

50 6678203

  • 6678203 - SWITCH PARK BRAKE
  • park brake
