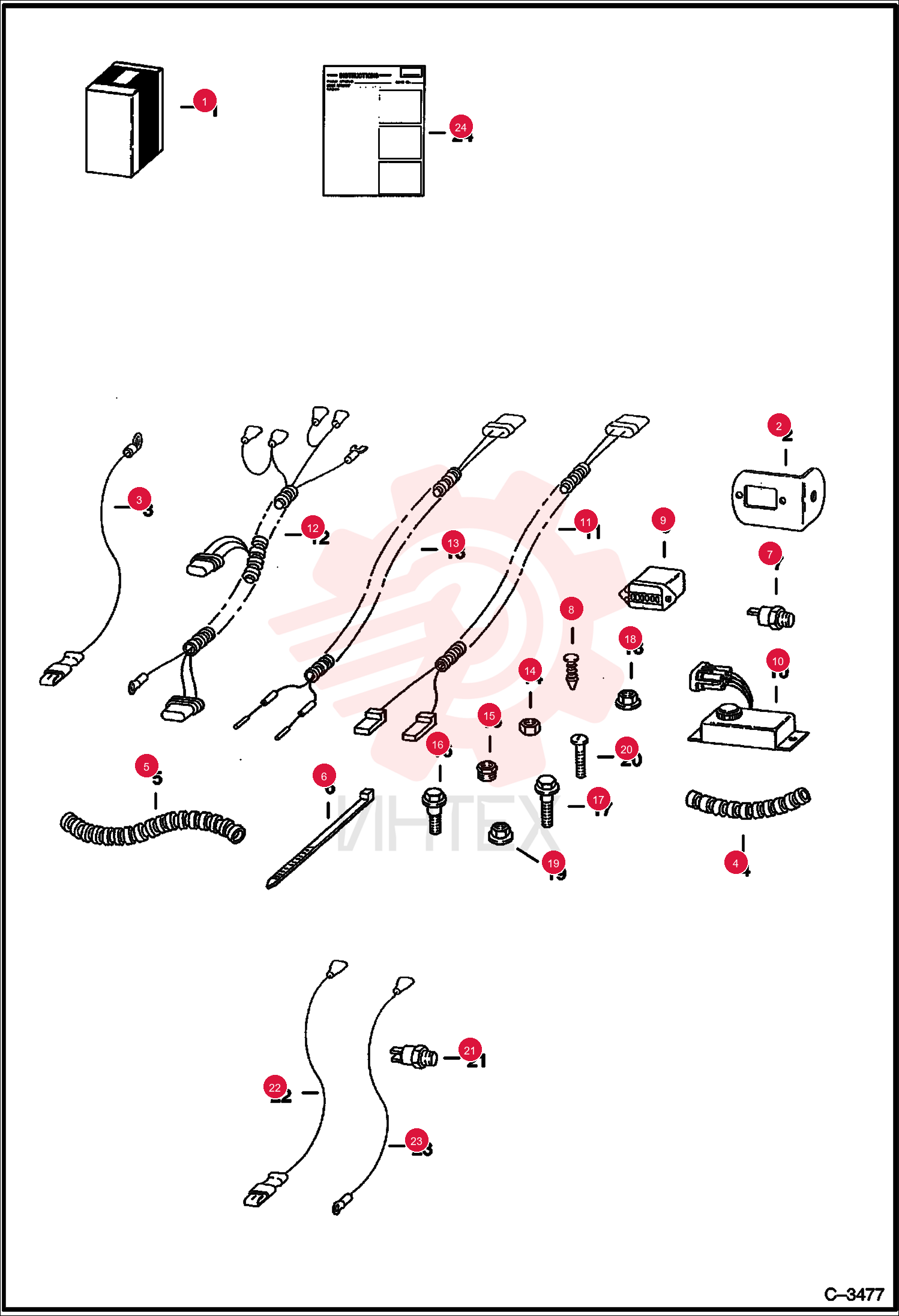

KIT, RENTAL 6712750 (1)

KIT, RENTAL 6712750 (1)

KIT, RENTAL 6712750 (1)

1 6712750

  • 6712750 - KIT
  • RENTAL
  • W/Ref. 2-21

2 6552906

  • 6552906 - BRACKET

3 6567968

  • 6567968 - WIRE ASSEMBLY
  • assy.

4 614142

  • 614142 - SLEEVE 10

5 733611

  • 733611 - TERMINAL
  • female

6 30R107

  • 30R107 - TERMINAL

7 6517924

  • 6517924 - CONNECTOR

8 6584978

  • 6584978 - CONDUIT BULK/FT
  • bulk - sold per foot

9 6610510

  • 6610510 - STRAP
  • TIE 10

10 6630821

  • 6630821 - SWITCH
  • temp.

11 6664221

  • 6664221 - RETAINER

12 6664886

  • 6664886 - METER HOUR

13 6669420

  • 6669420 - CONTROLLER

14 733611

  • 733611 - TERMINAL
  • female

15 6517924

  • 6517924 - CONNECTOR

16 6640690

  • 6640690 - PIN
  • male

17 6641176

  • 6641176 - SEAL
  • cable

18 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

19 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

20 6700228

  • 6700228 - HARNESS
  • Hourmeter

21 6641178

  • 6641178 - CONNECTOR METRI PACK
  • 2-pin

22 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

23 6641181

  • 6641181 - LOCK
  • 6-pin

24 6641176

  • 6641176 - SEAL
  • cable

25 6640691

  • 6640691 - TERMINAL
  • female

26 6714038

  • 6714038 - HARNESS

27 733616

  • 733616 - TERMINAL
  • male

28 6714039

  • 6714039 - HARNESS

29 6640690

  • 6640690 - PIN
  • male

30 6641176

  • 6641176 - SEAL
  • cable

31 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

32 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

33 12D6

  • 12D6 - NUT HEX MACH SCREW

34 19F5

  • 19F5 - BSHG

35 35C408

  • 35C408 - BOLT

36 35C716

  • 35C716 - BOLT

37 55D4

  • 55D4 - NUT

38 55D7

  • 55D7 - NUT

39 85G608

  • 85G608 - SCREW

40 6671964

  • 6671964 - SENDER
  • 800 MODELS ONLY

41 6714990

  • 6714990 - WIRE ASSEMBLY
  • assy. - 800 models only

42 6714991

  • 6714991 - WIRE ASSEMBLY
  • assy. - 800 models only

43 6900133

  • 6900133 - INSTRUCTIONS
