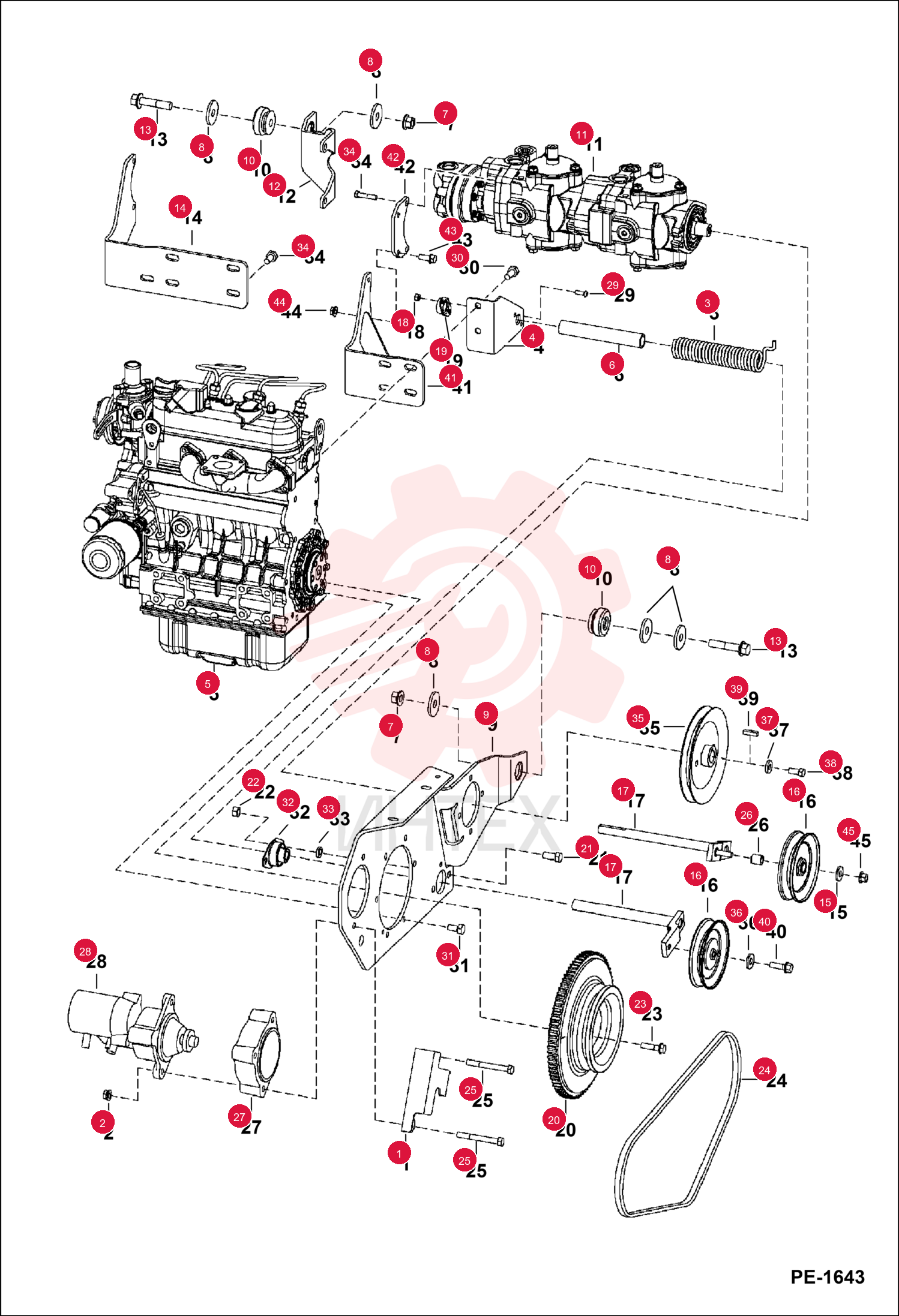

SHIELD 6713874 (3)

SHIELD 6713874 (3)

SHIELD 6713874 (3)

1 6713874

  • 6713874 - SHIELD
  • starter

2 83D6

  • 83D6 - LKNUT HEX FLG GR8

3 83D6

  • 83D6 - LKNUT HEX FLG GR8

4 6680315

  • 6680315 - SPRING
  • TORSION
  • Was 6678782

5 6730814

  • 6730814 - MOUNT IDLER
  • idler

6 6733662

  • 6733662 - SPACER TUBE
  • Was 6564788

7 83D8

  • 83D8 - LKNUT HEX FLG GR8

8 6515817

  • 6515817 - WASHER
  • Was 6564692

9 7112187

  • 7112187 - MOUNT
  • ENG/PUMP
  • Engine - Was 6730733

10 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • Rubber

11 6727711

  • 6727711 - MOUNT PUMP HYDRAULIC

12 35C840

  • 35C840 - BOLT

13 6563914

  • 6563914 - WASHER
  • not used with 6689692 pulley

14 6689692

  • 6689692 - PULLEY
  • IDLER
  • Was 6689645

15 7104424

  • 7104424 - BRACKET
  • IDLER

16 83D4

  • 83D4 - LKNUT HEX FLG GR8
  • Was 61D000004B

17 6685122

  • 6685122 - BEARING FLANGE

18 6730760

  • 6730760 - FLYWHEEL ASSEMBLY
  • W/Ring Gear

19 6510470

  • 6510470 - ВЕНЕЦ МАХОВИКА
  • BOBCAT

20 RG60000

  • RG60000 - ВЕНЕЦ МАХОВИКА
  • AUTOWELT

21 17C716

  • 17C716 - BOLT

22 85D7

  • 85D7 - NUT PRETRQ HEX LOCK

23 6661636

  • 6661636 - BOLT
  • Washer face

24 6678973

  • 6678973 - BELT
  • FAN
  • drive

25 17C652

  • 17C652 - BOLT

26 6532347

  • 6532347 - TUBE SPACER

27 6562198

  • 6562198 - SPACER

28 25G412

  • 25G412 - SCREW SKT BTN HD CAP

29 6719825

  • 6719825 - SCREW FLTHD HEX CAP

30 6733378

  • 6733378 - SCREW FL THD CAP

31 6681504

  • 6681504 - BEARING

32 6701097

  • 6701097 - WASHER

33 6677601

  • 6677601 - CAP SCREW

34 6731766

  • 6731766 - PULLEY

35 25E18

  • 25E18 - WASHER FLAT PLAIN
  • not used with 6689692 pulley

36 616783

  • 616783 - WASHER

37 18C616

  • 18C616 - BOLT 5

38 6598880

  • 6598880 - KEY

39 45C620

  • 45C620 - BOLT

40 7113616

  • 7113616 - MOUNT ASSEMBLY
  • Use with Ref. 42

41 7110299

  • 7110299 - MOUNT

42 35C516

  • 35C516 - SCREW HEX HD W/F GR5

43 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

44 81D6

  • 81D6 - NUT
  • Use with 6689692 pulley
