Главная
/
Бренды
/
Bobcat
/
463
/

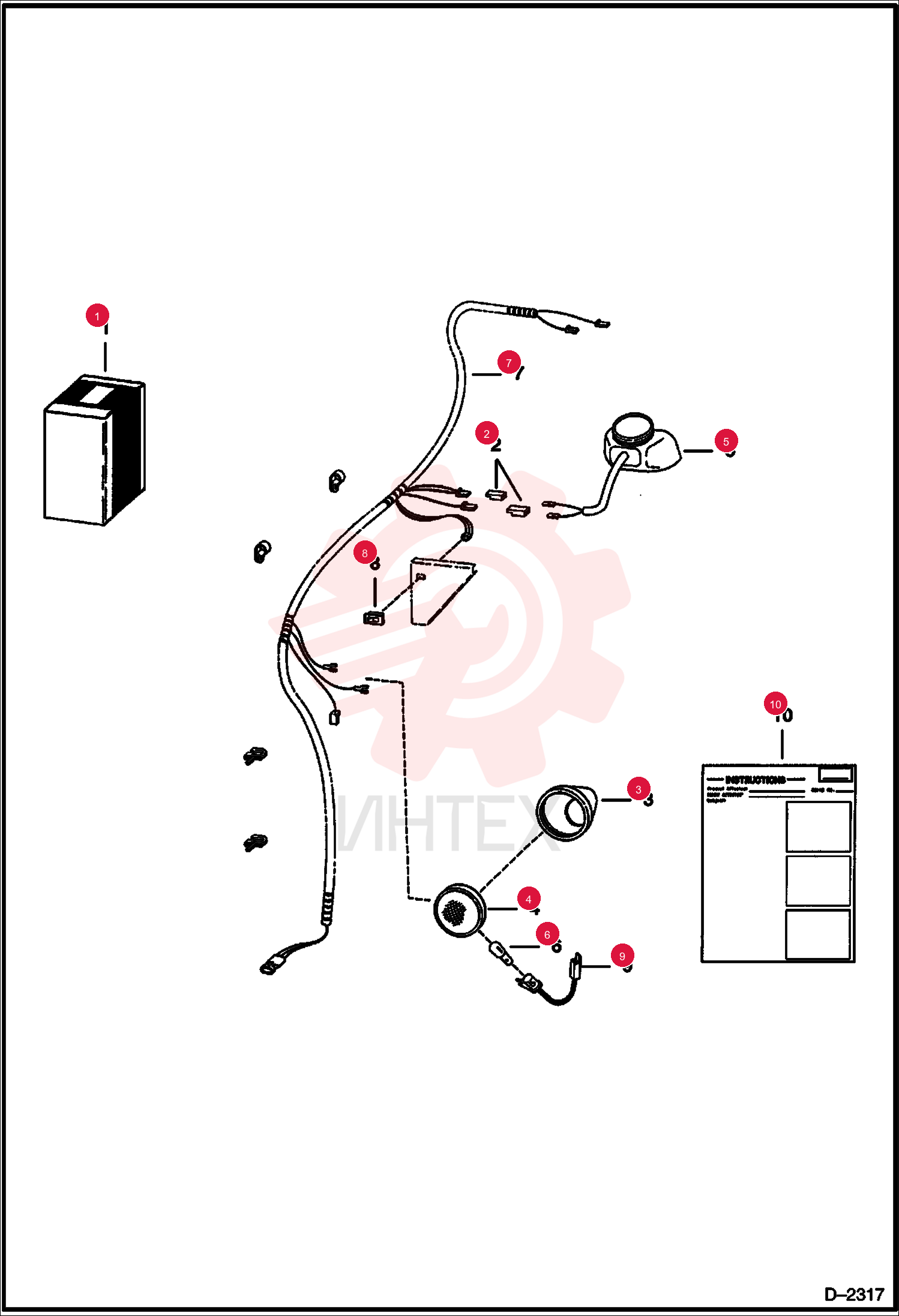

LIGHT KIT 6708719

LIGHT KIT 6708719

LIGHT KIT 6708719

1 6708719

  • 6708719 - LIGHT KIT
  • Ref. 2-6
  • 8-10

2 6519548

  • 6519548 - CONN BODY

3 6558142

  • 6558142 - HOUSING
  • LAMP
  • rubber

4 6563740

  • 6563740 - LIGHT
  • SEALED BEAM
  • W/Ref. 6

5 6577801

  • 6577801 - LIGHT
  • FRONT ASSY

6 6667934

  • 6667934 - LIGHT
  • BULB

7 898731

  • 898731 - LAMP

8 6707498

  • 6707498 - HARNESS
  • not in kit

9 6665410

  • 6665410 - SWITCH
  • HEADLIGHT

10 6564907

  • 6564907 - SOCKET ASSY LAMP

11 6724070ENUS

  • 6724070ENUS - INSTRUCTIONS
  • Was 6724070
