Главная
/
Бренды
/
Bobcat
/
463
/

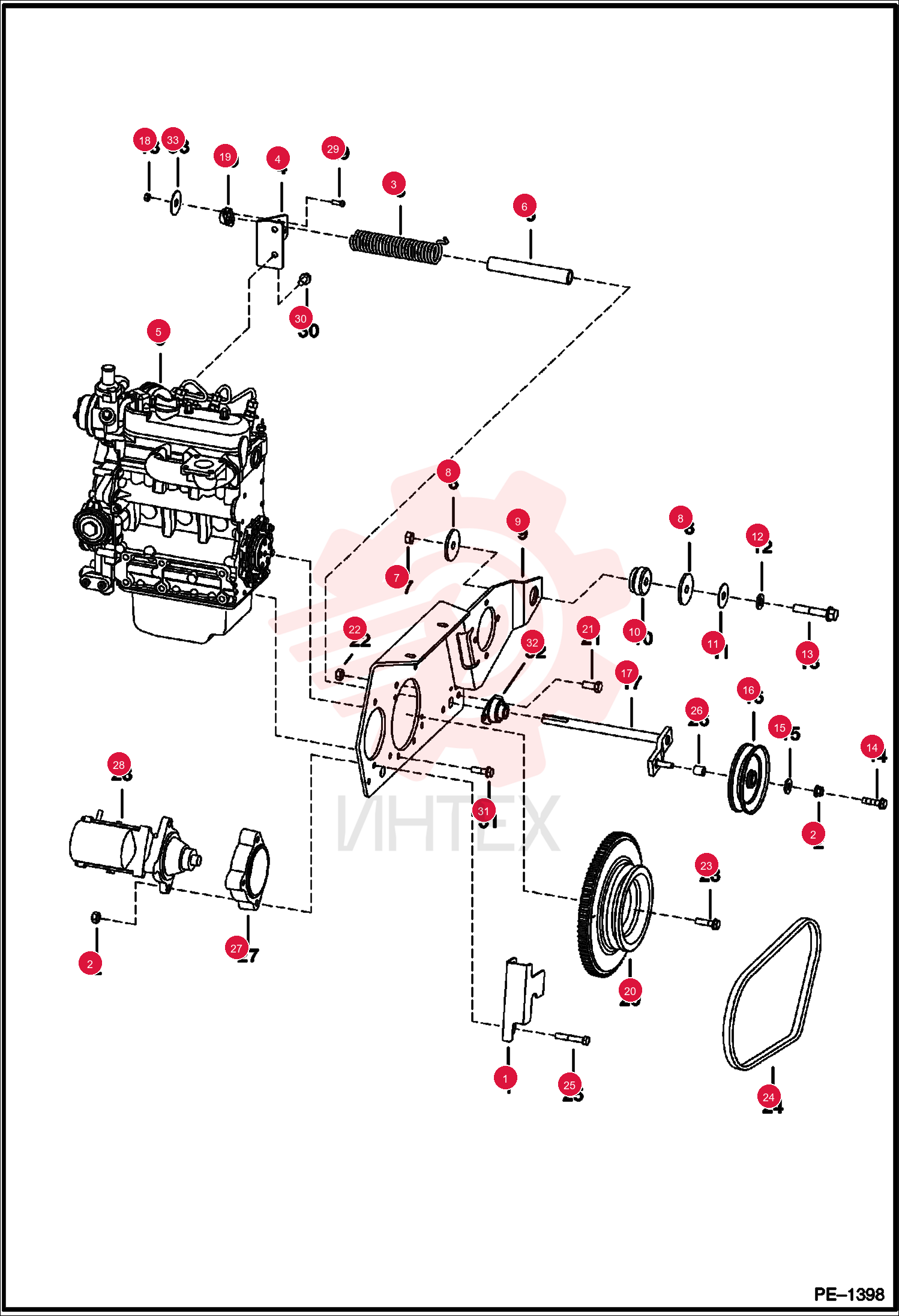

SHIELD 6713874 (2)

SHIELD 6713874 (2)

SHIELD 6713874 (2)

1 6713874

  • 6713874 - SHIELD
  • starter

2 83D6

  • 83D6 - LKNUT HEX FLG GR8

3 6678782

  • 6678782 - SPRING
  • Was 6564892

4 6730864

  • 6730864 - IDLER MOUNT
  • idler

5 6564788

  • 6564788 - TUBE

6 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

7 6564692

  • 6564692 - WASHER

8 6730934

  • 6730934 - MOUNT
  • ENG
  • Engine

9 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • Rubber

10 6565472

  • 6565472 - WASHER
  • .53 " ID

11 25E21

  • 25E21 - WASHER FLAT PLAIN

12 35C840

  • 35C840 - BOLT
  • Was 17C000844B

13 6719825

  • 6719825 - SCREW FLTHD HEX CAP

14 6563914

  • 6563914 - WASHER
  • Was 27E000006B

15 6689692

  • 6689692 - PULLEY
  • IDLER
  • Was 6689645

16 6730949

  • 6730949 - BRACKET
  • IDLER
  • With Stud

17 61D4

  • 61D4 - NUT 5

18 6599468

  • 6599468 - BEARING

19 6713599

  • 6713599 - FLYWHEEL ASSEMBLY
  • W/Ring Gear

20 6800424

  • 6800424 - GEAR

21 17C716

  • 17C716 - BOLT

22 85D7

  • 85D7 - NUT PRETRQ HEX LOCK

23 6661636

  • 6661636 - BOLT
  • Washer face

24 6727727

  • 6727727 - BELT
  • drive

25 17C640

  • 17C640 - BOLT
  • Was 17C000636B

26 6532347

  • 6532347 - TUBE SPACER

27 6713778

  • 6713778 - BLOCK

28 25G412

  • 25G412 - SCREW SKT BTN HD CAP

29 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

30 55CM816

  • 55CM816 - SCREW HEX HEAD CAP
  • Was 1CM00816B

31 25E13

  • 25E13 - WASHER FLAT PLAIN
