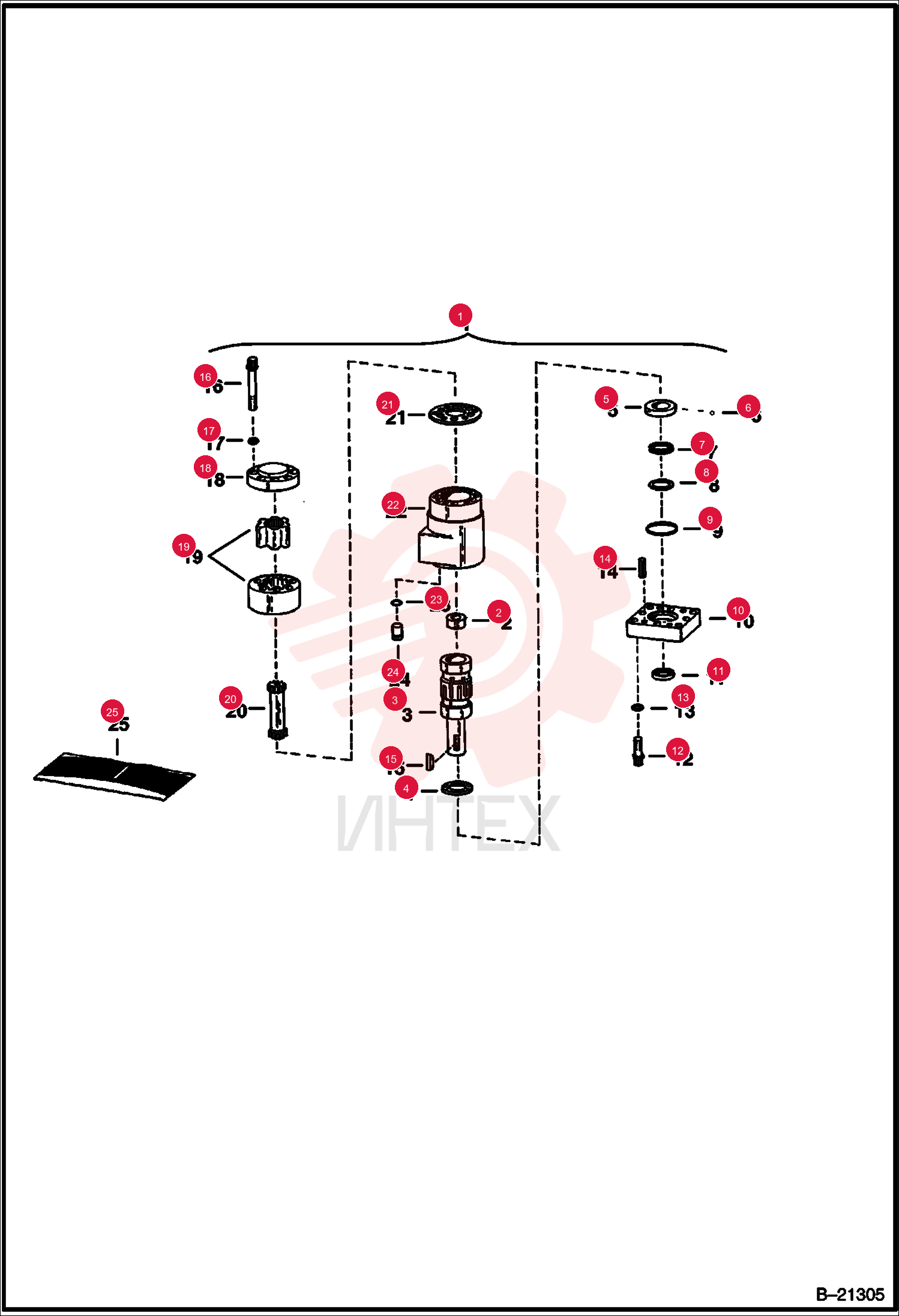

MOTOR 6517490 (2)

MOTOR 6517490 (2)

MOTOR 6517490 (2)

1 6517490

  • 6517490 - MOTOR
  • hydraulic - Ref. 2 - 24

2 6518097

  • 6518097 - SPACER
  • gerotor drive

3 6519141

  • 6519141 - SHAFT
  • output - W/Sleeve

4 6519142

  • 6519142 - BUSHING

5 6519144

  • 6519144 - BALL

6 6519150

  • 6519150 - BEARING
  • thrust

7 6E5

  • 6E5 - WASHER INTL T LOCK

8 302602

  • 302602 - ROLL PIN

9 6J808

  • 6J808 - KEY
  • WOODRUFF

10 6519147

  • 6519147 - CAP SCREW
  • cap

11 6517947

  • 6517947 - 24-WASHER
  • seal

12 993537

  • 993537 - CAP
  • end

13 6519145

  • 6519145 - GEROTOR SET

14 6519146

  • 6519146 - SHAFT
  • gerotor

15 1567084

  • 1567084 - PLATE
  • spacer

16 6519143

  • 6519143 - KIT
  • ball check

17 6517948

  • 6517948 - KIT
  • SEAL
  • Ref. 4
  • 8
  • 9
  • 11
  • 17 & 23
