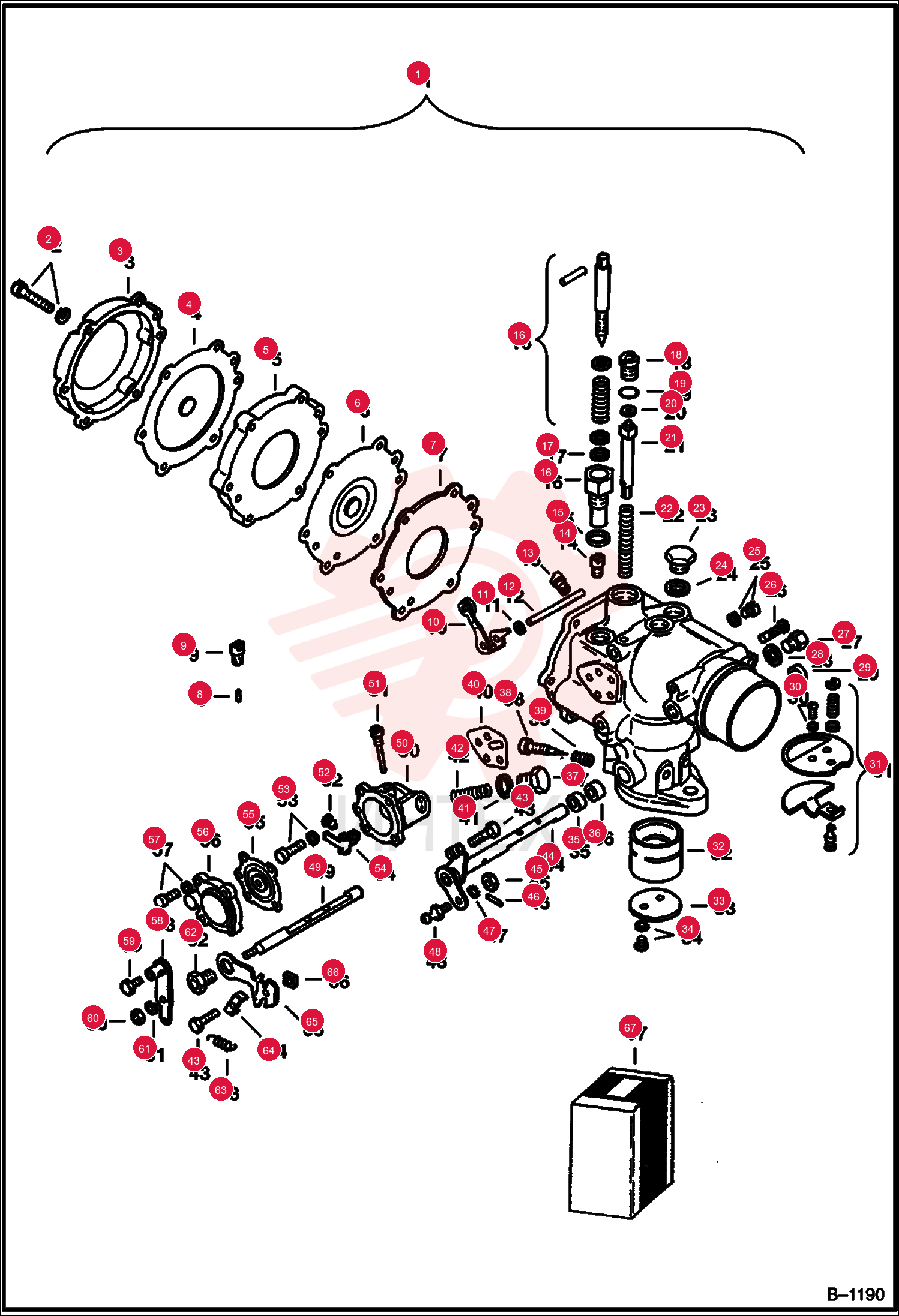

CARBURETOR 6517147
1 6517147
- 6517147 - CARBURETOR
- LPG
2 891058
- 891058 - COVER
3 6517239
- 6517239 - DIAPHRAGM
- outer
4 891059
- 891059 - SPACER
5 891060
- 891060 - LEVER
- diaphragm
6 6517243
- 6517243 - JET
- main
7 882623
- 882623 - ORIFICE
- inlet
8 6517246
- 6517246 - VALVE
- fuel - W/Ref. 20
9 891057
- 891057 - SPRING
- valve
10 882635
- 882635 - PLUG
- cup
11 882617
- 882617 - PLATE
- choke - W/Ref. 30
12 6517248
- 6517248 - SHAFT
13 6513494
- 6513494 - PLATE
- throttle
14 891063
- 891063 - NEEDLE
- idle adjustment
15 850011
- 850011 - SPRING
16 6517250
- 6517250 - GASKET
- housing
17 871550
- 871550 - SHAFT
- throttle
18 301923
- 301923 - ROLL PIN
- throttle stop lever
19 12E10
- 12E10 - WASHER
- lock - ball joint
20 882610
- 882610 - SHAFT
- choke
21 891064
- 891064 - HOUSING
- idle
22 6517254
- 6517254 - DIAPHRAGM
- idle control
23 891062
- 891062 - COVER
- idle control housing
24 14D8
- 14D8 - NUT
- choke lever
25 17E10
- 17E10 - WASHER HLCL SPR LOCK
- lock - choke lever
26 6644952
- 6644952 - SPRING
- choke return - Was 850032B
27 882634
- 882634 - BRACKET
- choke - W/Ref. 43
- 64 & 66
