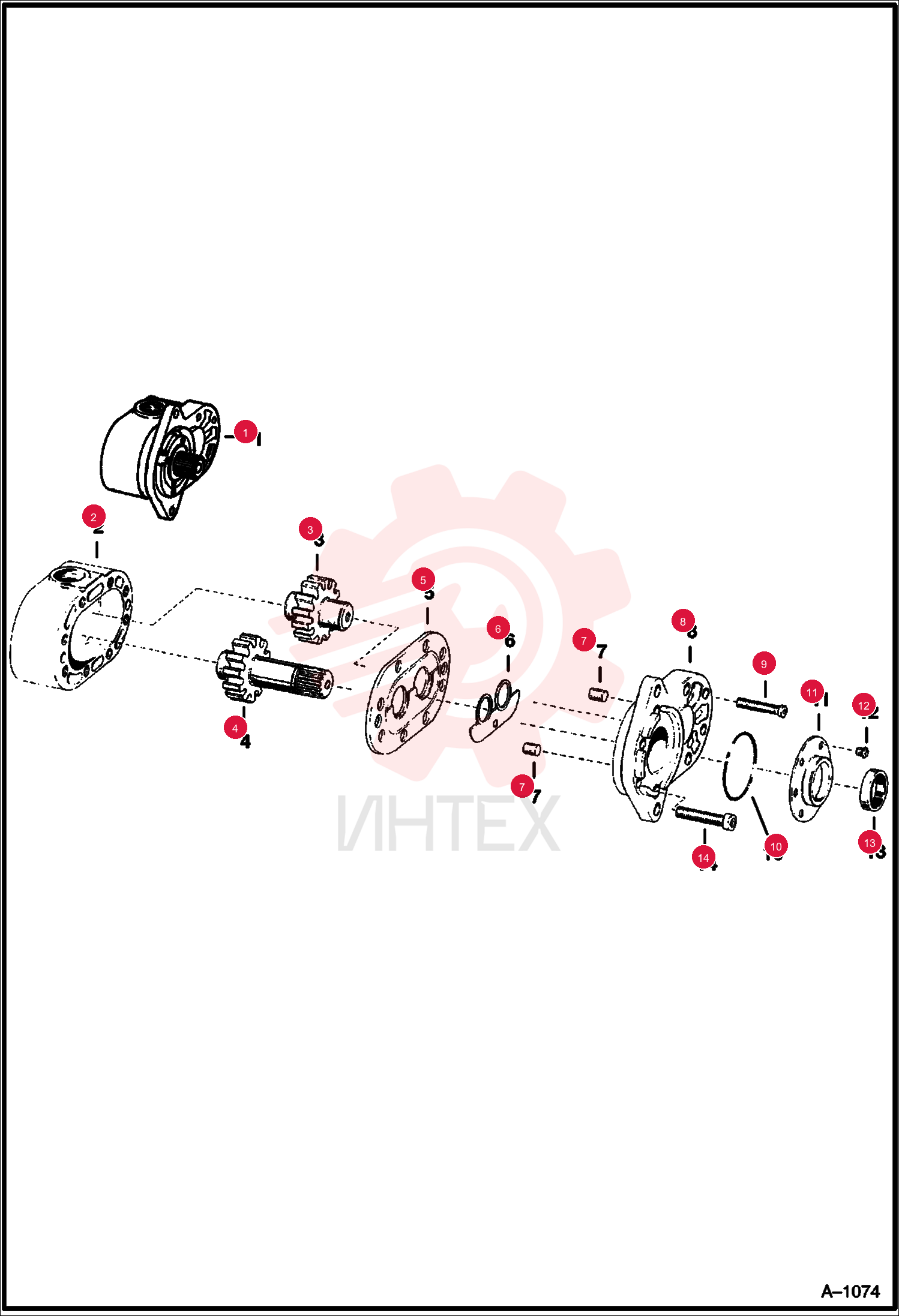

PUMP 6516281

PUMP 6516281

PUMP 6516281

1 6516281

  • 6516281 - PUMP
  • Webster - #116YC053-RC - See Ill. B1237 for pump drive parts

2 6516259

  • 6516259 - BODY

3 6516271

  • 6516271 - SHAFT
  • idler & gear

4 6516268

  • 6516268 - SHAFT
  • drive & gear

5 6516261

  • 6516261 - WEAR PLATE
  • wear & gear

6 6516264

  • 6516264 - DOWEL PIN

7 6516256

  • 6516256 - COVER

8 93G520

  • 93G520 - SCREW
  • cap

9 6516265

  • 6516265 - WASHER

10 54K30130

  • 54K30130 - O'RING
  • Was 25K30130

11 1318237

  • 1318237 - SEAL
  • oil

12 6516266

  • 6516266 - WASHER

13 93G520

  • 93G520 - SCREW
