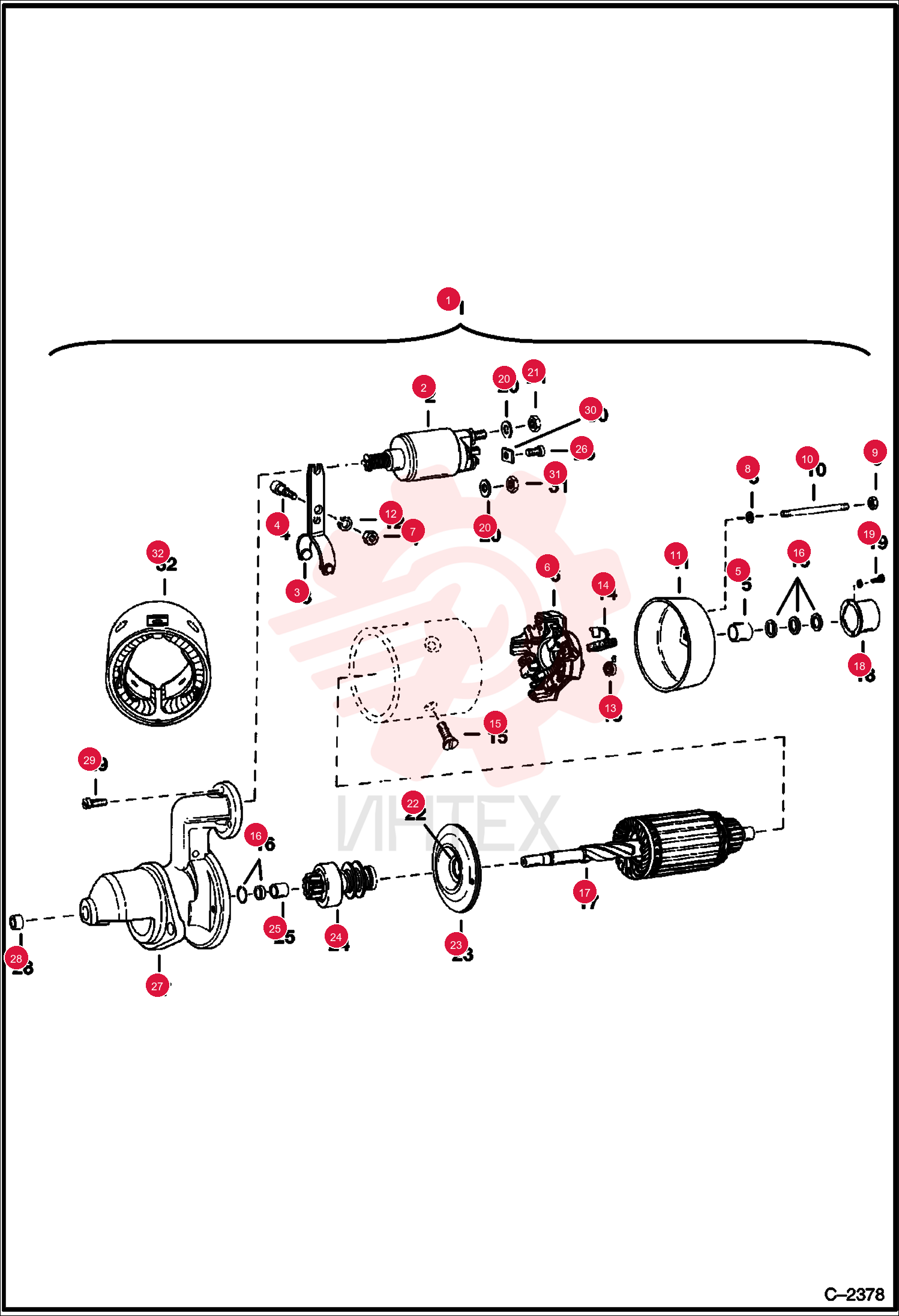

STARTER 6513391
1 6513391
- 6513391 - STARTER
- Bosch 0-001-362-0246
2 6513358
- 6513358 - RELAY ASY
3 6513355
- 6513355 - LEVER
- engaging
4 3734083
- 3734083 - SCREW
5 6513364
- 6513364 - BUSHING
6 6513361
- 6513361 - PLATE
- commutator end
7 6513366
- 6513366 - WASHER
8 1DM6
- 1DM6 - NUT
9 6513357
- 6513357 - BOLT
- thru
10 6513363
- 6513363 - COVER
- end
11 6513356
- 6513356 - LOCK WSHR
12 6513362
- 6513362 - SPRING
- brush
13 6513368
- 6513368 - KIT
- BRUSH
- w/o wires
14 6517909
- 6517909 - SCREW
15 6513369
- 6513369 - ARMATURE
- armature
16 6513350
- 6513350 - ARMATURE
17 6513367
- 6513367 - COVER
18 6513365
- 6513365 - SCREW
19 6EM100
- 6EM100 - WASHER
20 6517900
- 6517900 - NUT
21 6513352
- 6513352 - BUSHING
22 6513351
- 6513351 - BEARING ASSEMBLY
- W/Ref. 22
23 6513353
- 6513353 - DRIVE
- W/Ref. 25
24 3727307
- 3727307 - BUSHING
25 6517901
- 6517901 - SCREW
26 6513354
- 6513354 - FRAME ASSEMBLY
- drive end - W/Ref. 28
27 3726916
- 3726916 - BUSHING
- drive end frame
28 6664479
- 6664479 - SCREW
- Was 6513359
29 3726936
- 3726936 - BRACKET
30 1DM10
- 1DM10 - NUT
31 6513360
- 6513360 - COIL
- field
