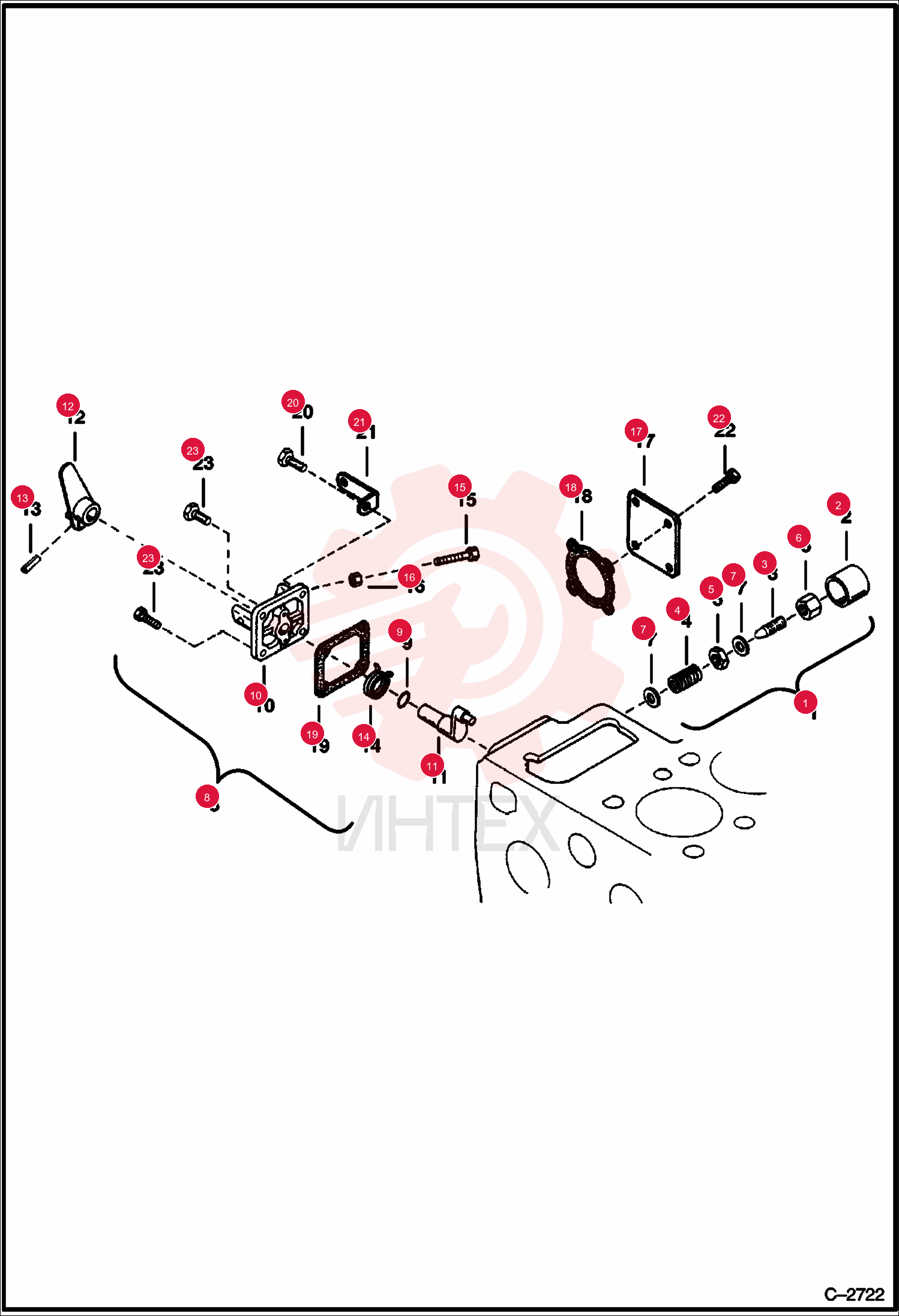

IDLER ASSEMBLY 6599025

IDLER ASSEMBLY 6599025

IDLER ASSEMBLY 6599025

1 6599025

  • 6599025 - IDLER ASSEMBLY
  • idle - Ref. 2-7

2 3974280

  • 3974280 - O RING

3 6653589

  • 6653589 - COVER

4 6599024

  • 6599024 - COVER

5 6599749

  • 6599749 - ASSY
  • LEVER

6 6598098

  • 6598098 - PIN

7 6598177

  • 6598177 - SPRING

8 6652712

  • 6652712 - BOLT
  • Was 3974284B

9 1DM6

  • 1DM6 - NUT

10 6598967

  • 6598967 - COVER

11 6666779

  • 6666779 - GASKET
  • Was 6599105

12 6666769

  • 6666769 - GASKET
  • Was 3974108B

13 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

14 6599032

  • 6599032 - HOLDER

15 1CM818

  • 1CM818 - BOLT
  • Was 4CM818

16 4CM618

  • 4CM618 - BOLT
