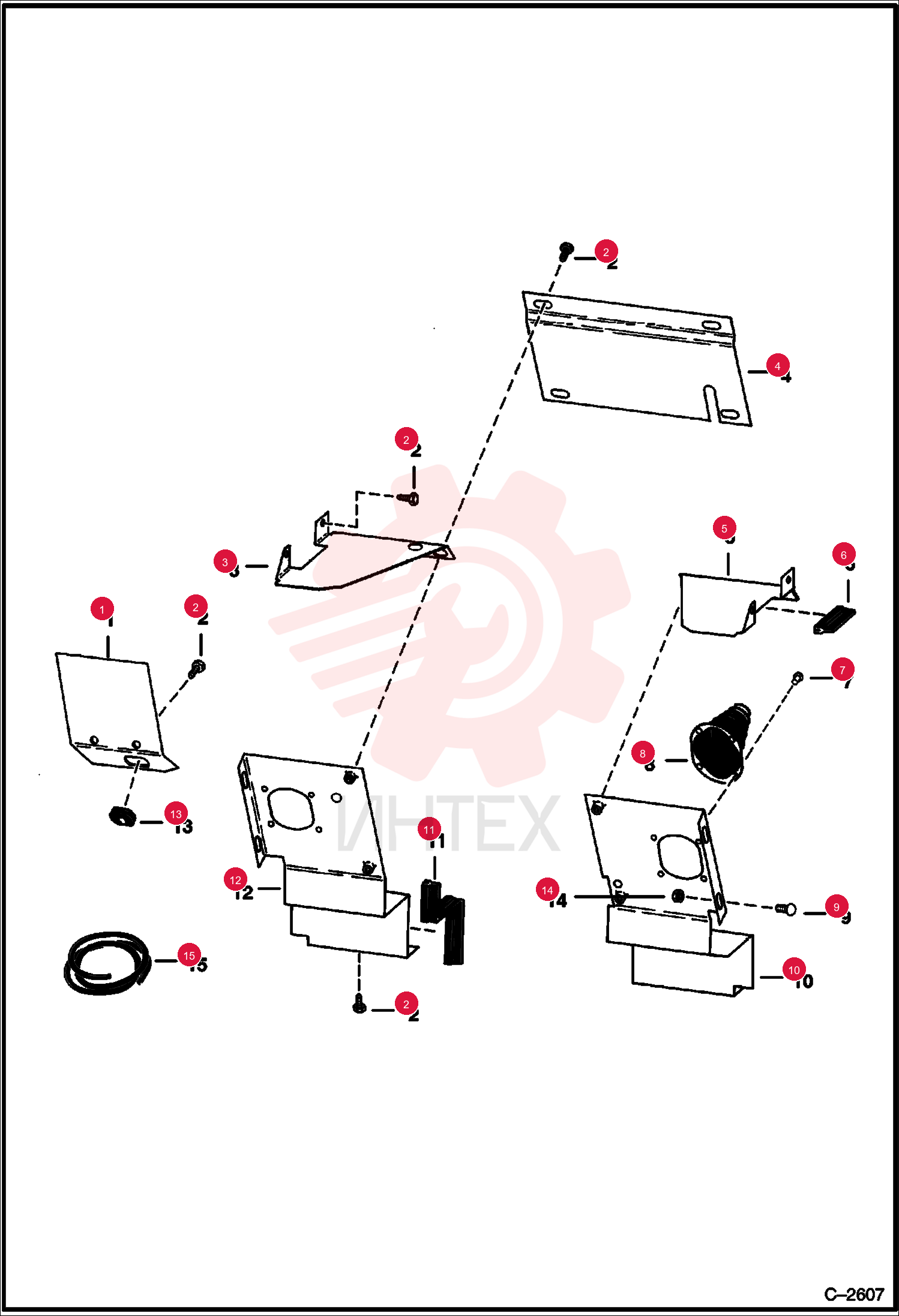

SHIELD 6562807 (1)

SHIELD 6562807 (1)

SHIELD 6562807 (1)

1 6562807

  • 6562807 - SHIELD

2 84G3716

  • 84G3716 - SCREW THD ROLLING TT

3 6562450

  • 6562450 - BRACE
  • L.H.

4 6554087

  • 6554087 - PLATE

5 6562451

  • 6562451 - BRACE
  • R.H.

6 6630207

  • 6630207 - RIVET POP
  • Was NLA

7 6532127

  • 6532127 - BOOT AND PLATE ASSY
  • rubber - Was 6563540

8 37C616

  • 37C616 - BOLT
  • Was 6514537

9 6563541

  • 6563541 - PANEL
  • R.H.

10 6563543

  • 6563543 - PANEL
  • L.H.

11 6553653

  • 6553653 - GROMMET

12 57D6

  • 57D6 - NUT HEX FLNG GR8

13 6646705

  • 6646705 - MOULDING BULK/FT
  • sold per foot - Was 6559764
