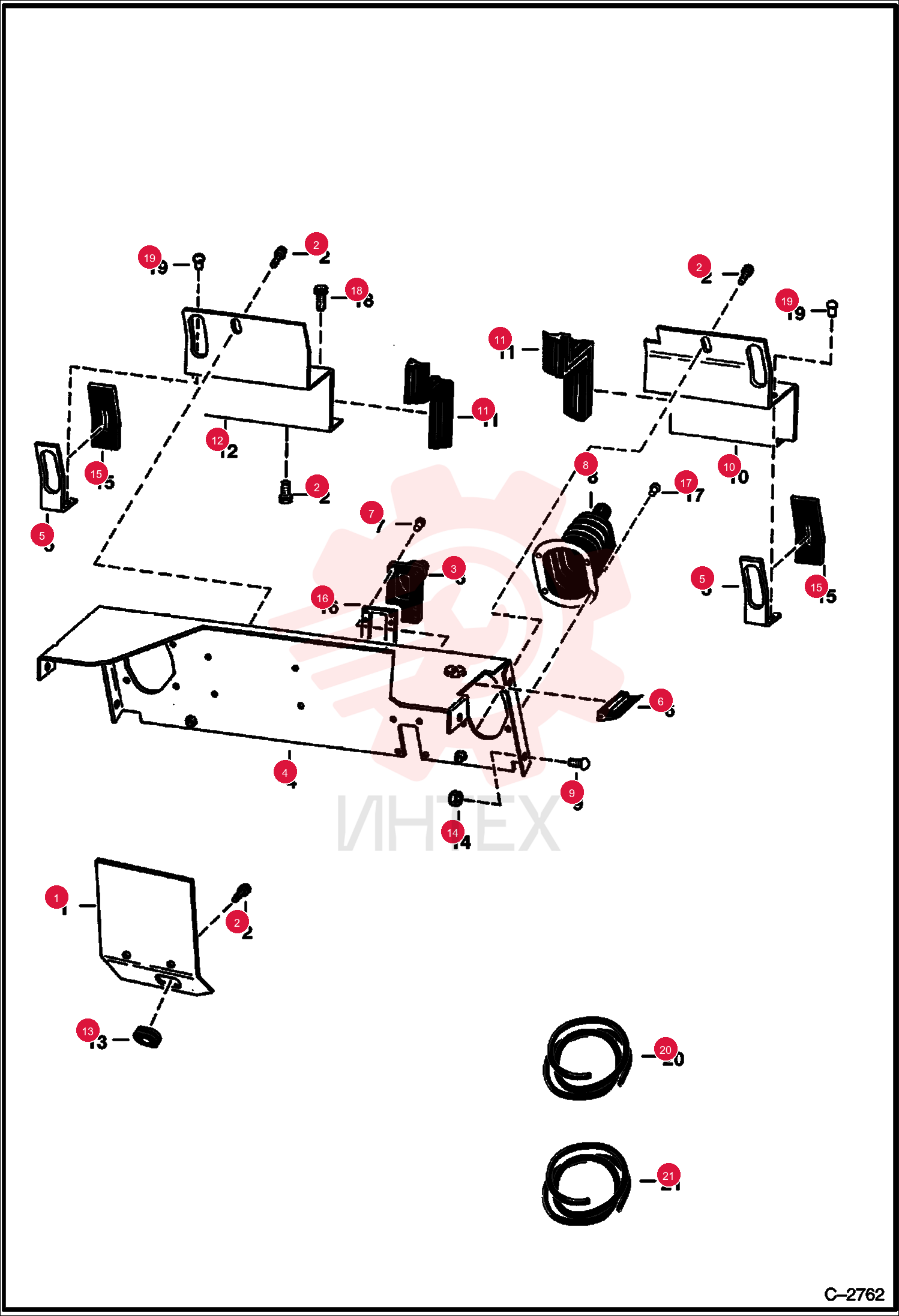

SHIELD 6562807 (2)

SHIELD 6562807 (2)

SHIELD 6562807 (2)

1 6562807

  • 6562807 - SHIELD

2 84G3716

  • 84G3716 - SCREW THD ROLLING TT

3 6564672

  • 6564672 - SHIELD

4 6564982

  • 6564982 - RETAINER

5 6630207

  • 6630207 - RIVET POP
  • Was 6512797

6 6532127

  • 6532127 - BOOT AND PLATE ASSY
  • rubber - Was 6563540

7 37C616

  • 37C616 - BOLT
  • carriage - Was 6514537

8 6564670

  • 6564670 - SHIELD
  • if both shield and floor plate are slotted
  • use bolt
  • washer & nut

9 6564671

  • 6564671 - PANEL
  • if both shield and floor plate are slotted
  • use bolt
  • washer & nut

10 6553653

  • 6553653 - GROMMET

11 57D6

  • 57D6 - NUT HEX FLNG GR8

12 6564976

  • 6564976 - SEAL
  • foam block

13 6565014

  • 6565014 - RETAINER
  • Not Use W/6571648 Boot

14 6630207

  • 6630207 - RIVET POP
  • Was 6513493

15 84G3712

  • 84G3712 - SCREW THD ROLLING TT

16 6630207

  • 6630207 - RIVET POP
  • Was 6598092

17 6646705

  • 6646705 - MOULDING BULK/FT
  • sold per foot - Was 6559764

18 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • bulk - sold per foot
