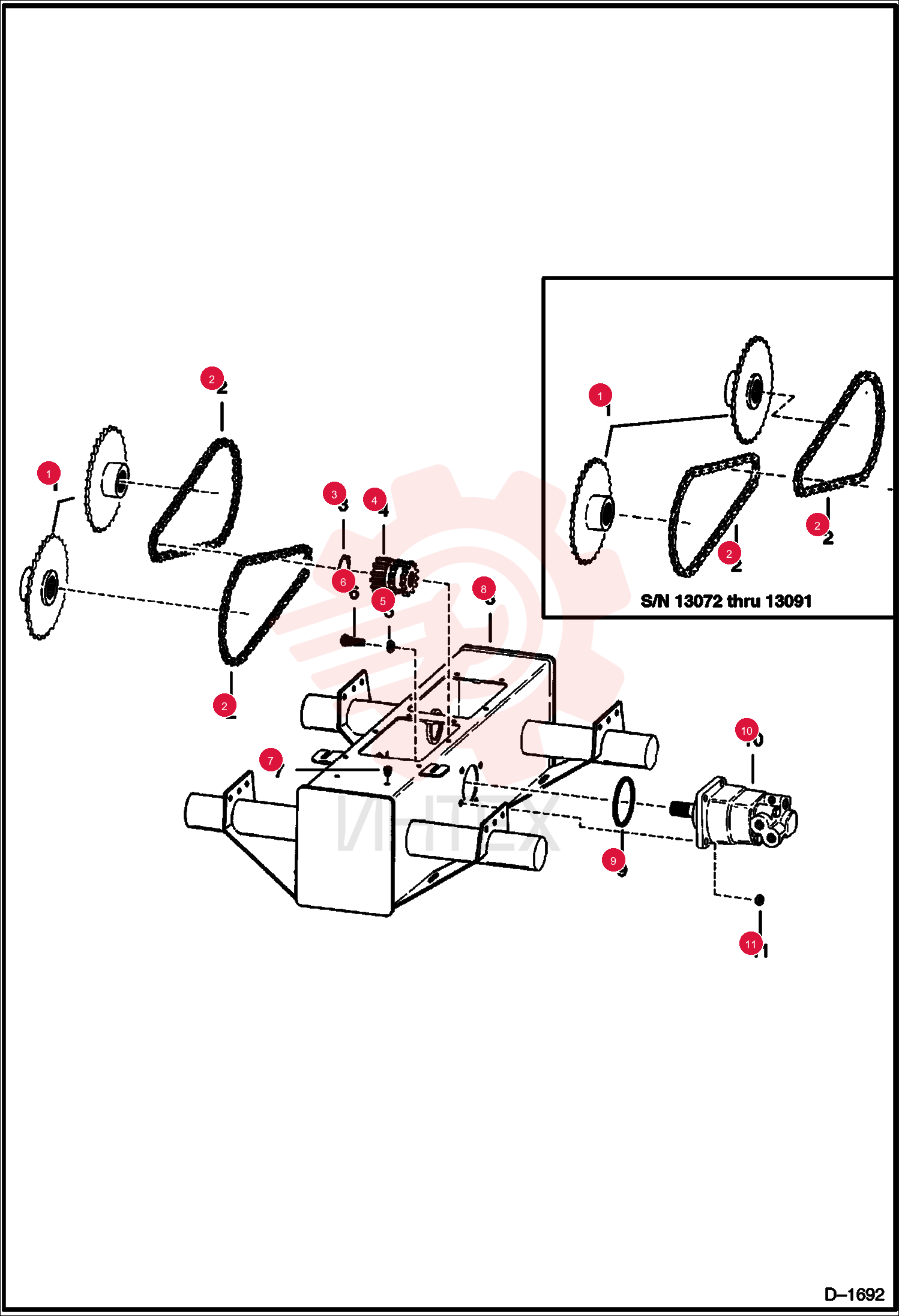

SPROCKET 6548891 (3)

SPROCKET 6548891 (3)

SPROCKET 6548891 (3)

1 6548891

  • 6548891 - SPROCKET

2 6691089

  • 6691089 - LINK
  • connector - Tsubaki - Use W/ 6690990 chain

3 6515191

  • 6515191 - LINK
  • connector - Diamond - Use W/ 6630205 chain

4 6690990

  • 6690990 - CHAIN
  • Tsubaki

5 6630205

  • 6630205 - CHAIN
  • DRIVE
  • Diamond

6 791442

  • 791442 - RING SNAP

7 6714469

  • 6714469 - SPROCKET
  • Was 6565185

8 6564740

  • 6564740 - WASHER

9 6564741

  • 6564741 - BOLT WHEEL

10 6558506

  • 6558506 - PLUG

11 6565284

  • 6565284 - CASE HSG

12 25K30424

  • 25K30424 - O RING 10

13 86D8

  • 86D8 - NUT PRETRQ HEX LOCK
