Bobcat
/
742.0
/

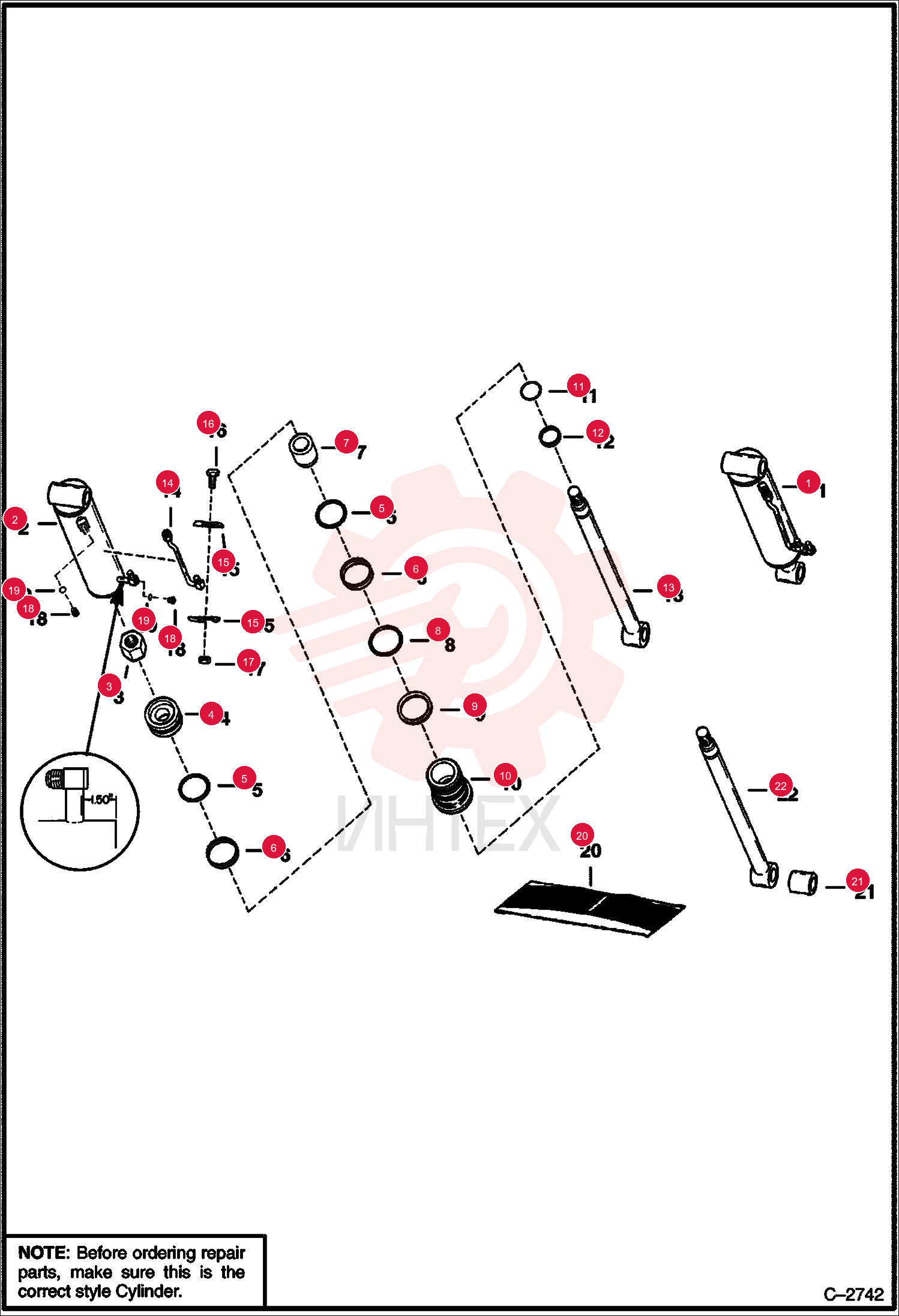

NUT 86D16

NUT 86D16

NUT 86D16

1 86D16

  • 86D16 - NUT

2 6592448

  • 6592448 - PISTON

3 6591800

  • 6591800 - SLEEVE

4 6591799

  • 6591799 - HEAD

5 6592019

  • 6592019 - TUBE

6 6591804

  • 6591804 - CLAMP

7 17C616

  • 17C616 - BOLT 5

8 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

9 24K5

  • 24K5 - PLUG
  • tapered boss face - Was 90KV5

10 79K6

  • 79K6 - O RING 10
  • flat boss face

11 95K6

  • 95K6 - O'RING
  • tapered boss face

12 6661297

  • 6661297 - SEAL KIT
  • Ref. 5
  • 6
  • 8
  • 9
  • 11 & 12 - Was 6591885

13 6589665

  • 6589665 - BUSHING
  • PRESS FIT
  • Use W/Ref. 22

14 6589785

  • 6589785 - SHAFT
  • ROD CYL TILT
