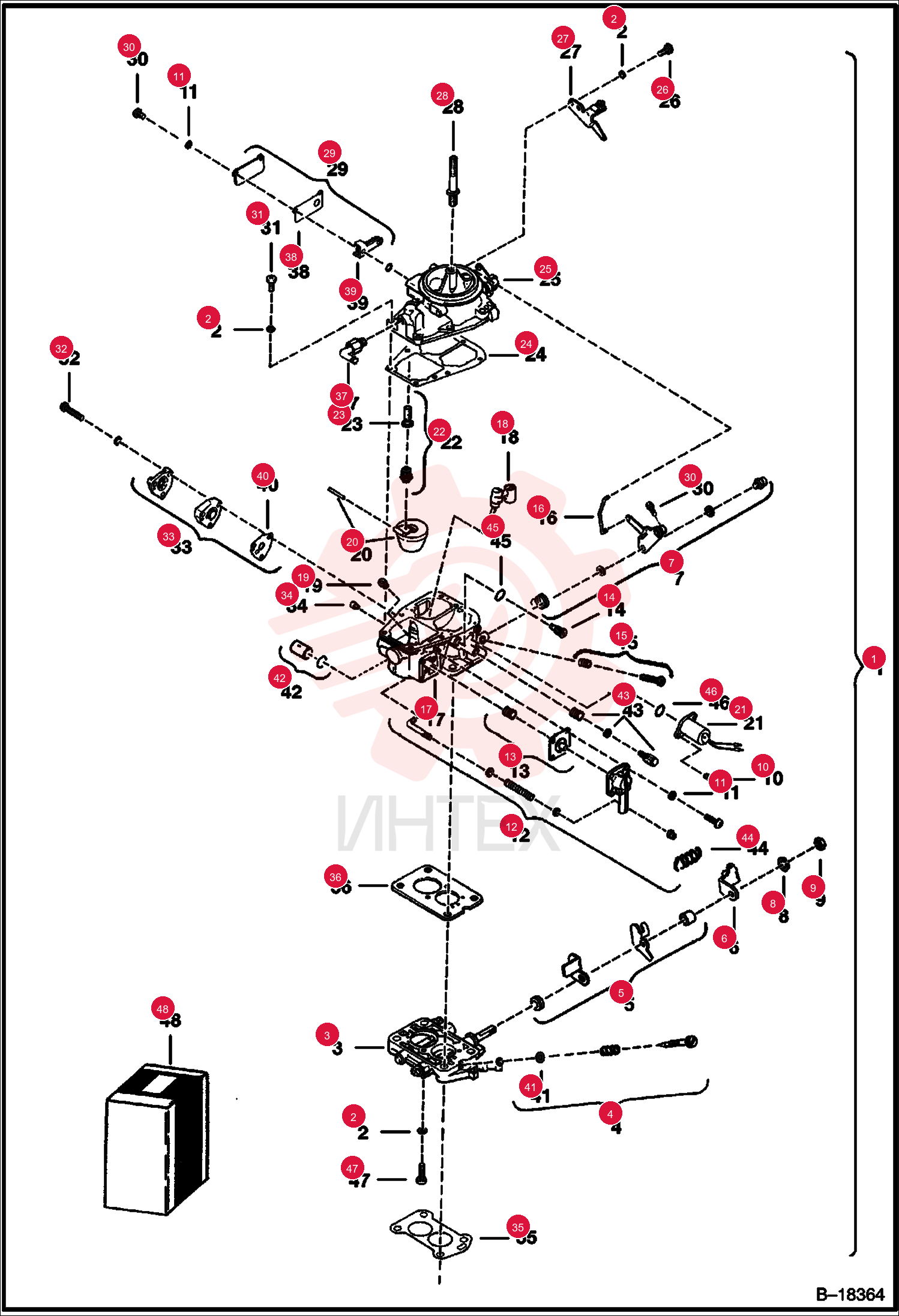

WASHER LOCK 6EM50 (1)

WASHER LOCK 6EM50 (1)

WASHER LOCK 6EM50 (1)

1 6EM50

  • 6EM50 - WASHER LOCK

2 6632801

  • 6632801 - SCREW KIT

3 6632866

  • 6632866 - LEVER KIT

4 6632868

  • 6632868 - LEVER
  • throttle

5 6632808

  • 6632808 - LEVER KIT
  • choke

6 6EM80

  • 6EM80 - WASHER
  • SPRING

7 6632788

  • 6632788 - NUT

8 13GM4010

  • 13GM4010 - SCREW

9 6EM40

  • 6EM40 - LOCKWHSR.

10 6632806

  • 6632806 - ASSY
  • COVER
  • pump

11 6632805

  • 6632805 - KIT
  • DIAPHRAGM
  • pump

12 6632786

  • 6632786 - JET
  • pilot screw

13 6632807

  • 6632807 - SCREW KIT
  • speed adj.

14 6632789

  • 6632789 - ROD
  • choke

15 6632793

  • 6632793 - JET
  • main

16 6665121

  • 6665121 - MAIN JET
  • main - High Altitude

17 6632804

  • 6632804 - FLOAT AND PIN SET

18 6632787

  • 6632787 - PACKING

19 7030191

  • 7030191 - GASKET
  • Was 6632783

20 6632865

  • 6632865 - ASSY
  • COVER

21 13GM5010

  • 13GM5010 - SCREW

22 6632799

  • 6632799 - BRACKET ASSEMBLY

23 6632869

  • 6632869 - STUD

24 6632802

  • 6632802 - COMPENSAT
  • compensator

25 13GM408

  • 13GM408 - SCREW

26 13GM5016

  • 13GM5016 - SCREW

27 13GM4025

  • 13GM4025 - BOLT

28 6632784

  • 6632784 - ASSY
  • VALVE
  • enrichment

29 6632790

  • 6632790 - JET
  • enrichment

30 6632676

  • 6632676 - GASKET
  • carb.

31 6632800

  • 6632800 - CHK VLKIT

32 13GM5022

  • 13GM5022 - SCREW
