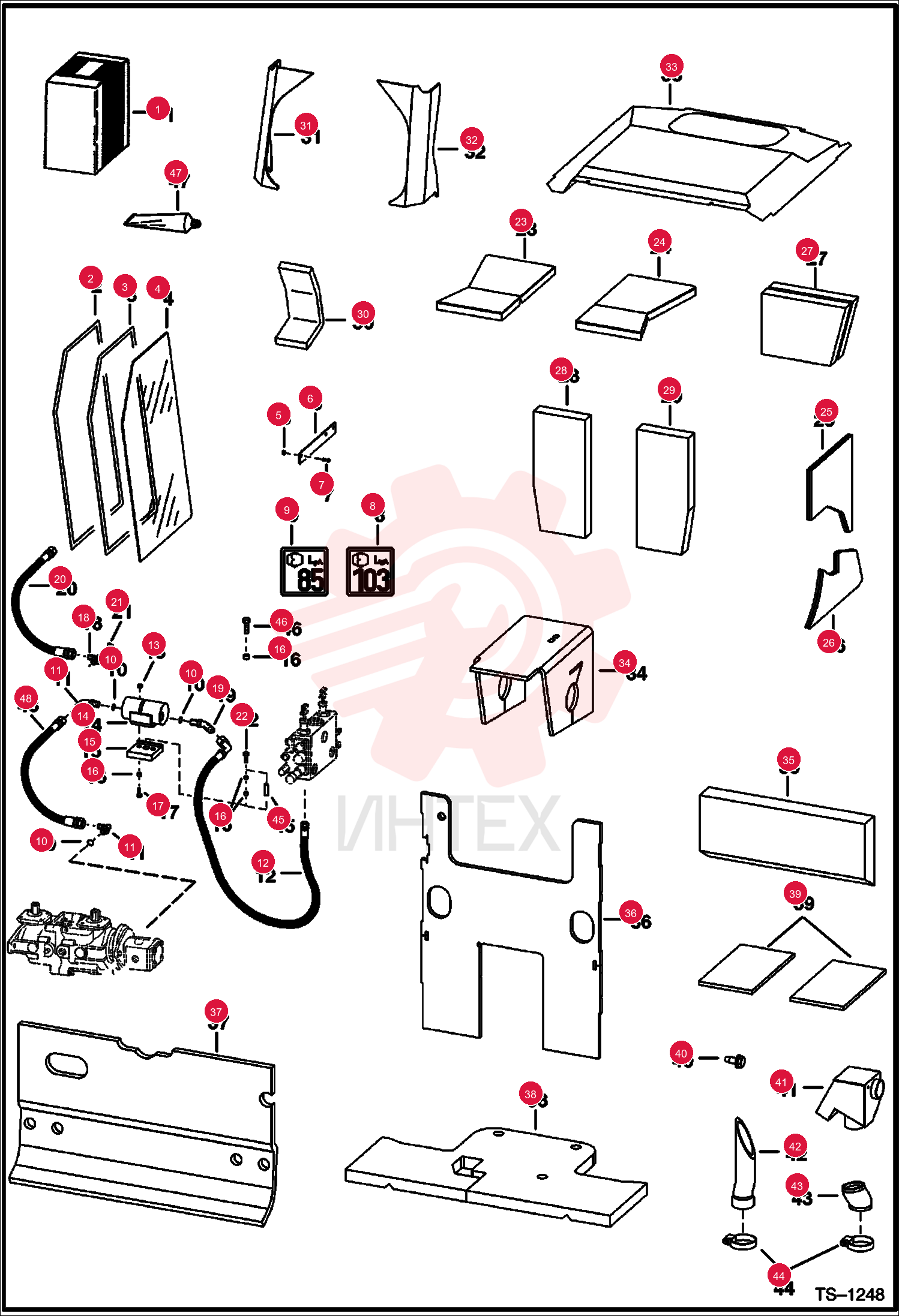

HOOK SCOTCHMATE 6631549 (1)
1 6631549
- 6631549 - HOOK SCOTCHMATE
- scotchmate
2 6631548
- 6631548 - LOOP SCOTCHMATE
- scotchmate
3 6702731
- 6702731 - WINDOW CAB
- cab
4 83D4
- 83D4 - LKNUT HEX FLG GR8
5 6700875
- 6700875 - RETAINER
- window
6 35C410
- 35C410 - SCREW HEX HD W/F GR5
7 6579403
- 6579403 - DECAL
- WARNING
- sound level warning - 103 decibel
8 6733220
- 6733220 - DECAL
- DECIBEL
- noise level - 102db - Was 6579402
9 6579385
- 6579385 - DECAL
- WARNING
- sound level warning - 85 decibel
10 6579399
- 6579399 - DECAL
- WARNING
- sound level warning - 83 decibel
11 79K12
- 79K12 - O RING 10
- flat boss face
12 99K12
- 99K12 - O-RING
- tapered boss face
13 17K8
- 17K8 - FITTING
- flat boss face - W/Ref. 10
14 17KB1212
- 17KB1212 - FITTING
- HYD ELBOW
- tapered boss face - W/Ref. 10 - Was 17KN00008B
15 97K12
- 97K12 - O-RING
- flared end
16 6729147
- 6729147 - HOSE
- Was 6707233
17 85D6
- 85D6 - NUT PRETRQ HEX LOCK
18 6659982
- 6659982 - MUFFLER
- HYD
- Was 6703648
19 6705333
- 6705333 - MOUNT
- rubber
20 6562619
- 6562619 - BUSHING
21 35C616
- 35C616 - SCREW FLGD HEX CAP
22 6700599
- 6700599 - ELBOW
- W/Ref. 10 - Use W/Ref. 20
23 18K8
- 18K8 - FTG
- flat boss face - W/Ref. 10
24 18KB1212
- 18KB1212 - FITTING
- HYD ELBOW
- tapered boss face - W/Ref. 10 - Was 18KV00008B
25 97K12
- 97K12 - O-RING
- flared end
26 6707895
- 6707895 - ELBOW
27 84G3724
- 84G3724 - SCREW THD ROLLING TT
28 6732723
- 6732723 - INSULATION
- crossmember - R.H. - Was 6704722
29 6732722
- 6732722 - INSULATION
- crossmember - L.H. - Was 6704721
30 6719332
- 6719332 - INSULATION
- BLWR HSG
- blower housing - Was 6704725
31 6704769
- 6704769 - INSULATION
- blower housing
32 6705848
- 6705848 - INSULATION
- transmission
33 6705849
- 6705849 - INSULATION
- brace - L.H.
34 6705850
- 6705850 - INSULATION
- brace - R.H.
35 6703331
- 6703331 - FOAM
- air inlet
36 6715097
- 6715097 - INSULATION
- cab back - LH
37 6715098
- 6715098 - INSULATION
- cab back - RH
38 6715094
- 6715094 - INSULATION
- cab top
39 6715372
- 6715372 - INSULATION
- transmission
40 6715096
- 6715096 - INSULATION
- cab back - Was 6706903
41 6715106
- 6715106 - INSULATION
- rear door
42 6715095
- 6715095 - INSULATION
- seat pan - Was 6706983
43 6715371
- 6715371 - INSULATION
- pedal
44 84G3112
- 84G3112 - SCREW THD ROLLING TT
- Was 84G003712B
45 6715250
- 6715250 - MUFFLER
- intake
46 6715239
- 6715239 - HOSE
- intake
47 6715240
- 6715240 - HOSE
- air cleaner
48 42HL300
- 42HL300 - CLAMP
- Was 6598799
49 6715744
- 6715744 - BUSHING
50 84G3716
- 84G3716 - SCREW THD ROLLING TT
51 6633583
- 6633583 - SEALANT
- POLYURETHANE 300 ML
52 6729144
- 6729144 - HOSE
