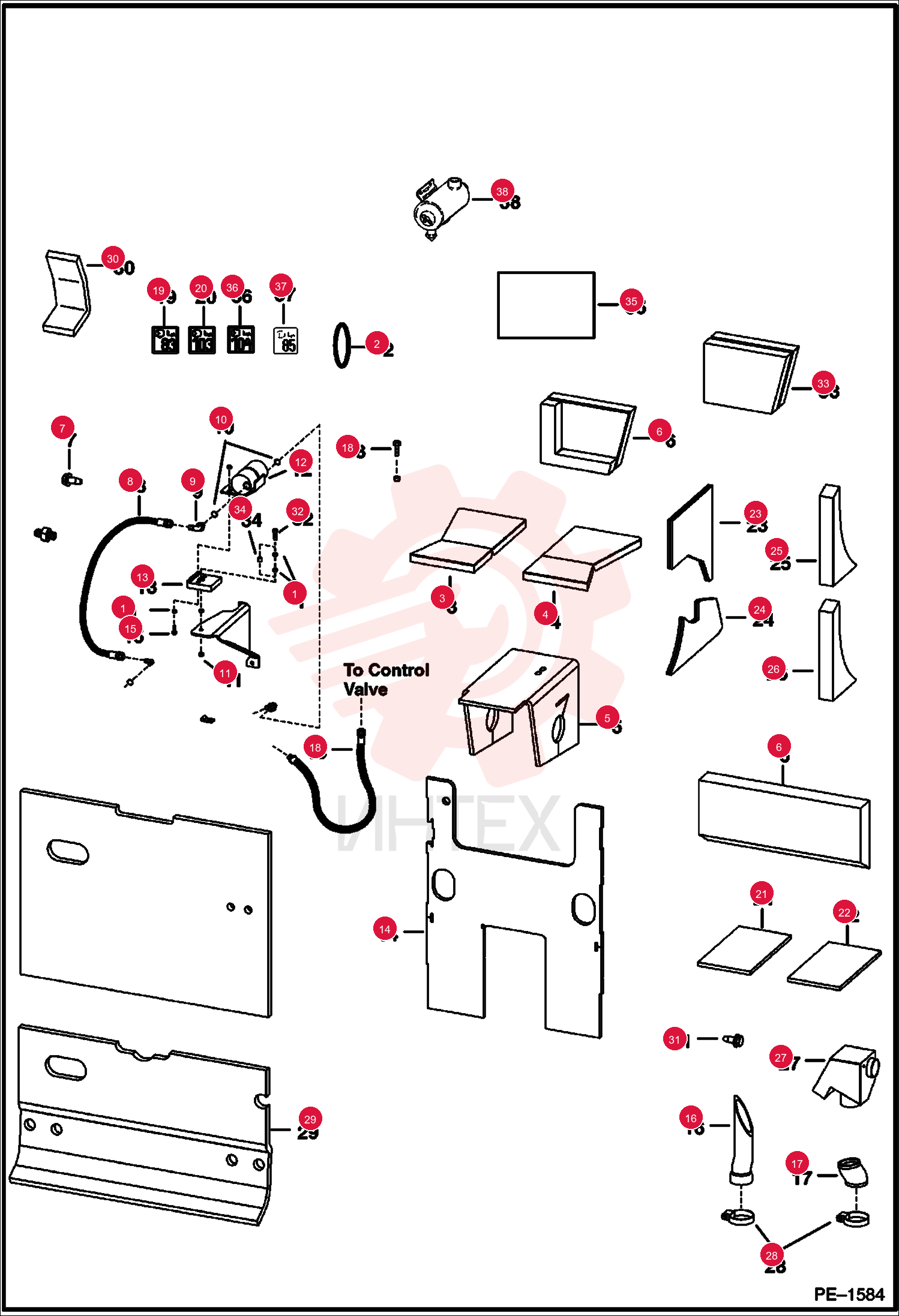

BUSHING 6562619 (1)
1 6562619
- 6562619 - BUSHING
2 6712971
- 6712971 - PULLEY
- 5.00"(127 mm) O.D. - Use W/6715478 Fan Belt
3 6703483
- 6703483 - PULLEY
- FAN DRIVE IDLER
- 5.25"(133
- 35 mm) O.D - Use W/6732416 Fan Belt
4 6712970
- 6712970 - PULLEY
- fan drive - 4.75" (120
- 65 mm) O.D.
5 6732722
- 6732722 - INSULATION
- cross member - L.H. - Was 6704721
6 6732723
- 6732723 - INSULATION
- cross member - R.H. - Was 6704722
7 6715372
- 6715372 - INSULATION
- pedal
8 6725316
- 6725316 - INSULATION
- transmission
9 84G3716
- 84G3716 - SCREW THD ROLLING TT
10 6729144
- 6729144 - HOSE
- pump to hyd. muffler - Was 6707231
11 17KB1212
- 17KB1212 - FITTING
- HYD ELBOW
- W/Ref. 10 - flat boss face
12 97K12
- 97K12 - O-RING
- flared end
13 99K12
- 99K12 - O-RING
- tapered boss face
14 85D6
- 85D6 - NUT PRETRQ HEX LOCK
15 6659982
- 6659982 - MUFFLER
- HYD
- hydraulic
16 6705333
- 6705333 - MOUNT
- rubber
17 6719372
- 6719372 - INSULATION
- STRG PANEL
- steering panel
18 35C616
- 35C616 - SCREW FLGD HEX CAP
19 6729154
- 6729154 - HOSE
- HYD ASSY
- muffler to control valve - Was 6714594
20 6579399
- 6579399 - DECAL
- WARNING
- 83 db noise level - Was 6579384
21 6579403
- 6579403 - DECAL
- WARNING
- 103 db noise level - Was 6579402
22 6705849
- 6705849 - INSULATION
- brace
23 6705850
- 6705850 - INSULATION
- brace
24 6719332
- 6719332 - INSULATION
- BLWR HSG
- blower housing
25 6704769
- 6704769 - INSULATION
- blower housing
26 6707923
- 6707923 - INSULATION
- upright
27 6707924
- 6707924 - INSULATION
- upright
28 42H52
- 42H52 - CLAMP
- max dia. 3.75" (95.25 mm)
29 42H44
- 42H44 - HOSECLAM5
- max dia. 3.25" (82.55 mm)
30 6715106
- 6715106 - INSULATION
- rear door
31 6703331
- 6703331 - FOAM
- air inlet
32 84G3112
- 84G3112 - SCREW THD ROLLING TT
- 5/16 x .75"
33 84G3724
- 84G3724 - SCREW THD ROLLING TT
34 6705848
- 6705848 - INSULATION
- transmission
35 6715744
- 6715744 - BUSHING
36 6715371
- 6715371 - INSULATION
- transmission
37 6731994
- 6731994 - DECAL
- DECIBEL
- noise level - 104db
38 6579385
- 6579385 - DECAL
- WARNING
- 85db
39 6735285
- 6735285 - AIR CLEANER
- upright mounted - W/removable filter
