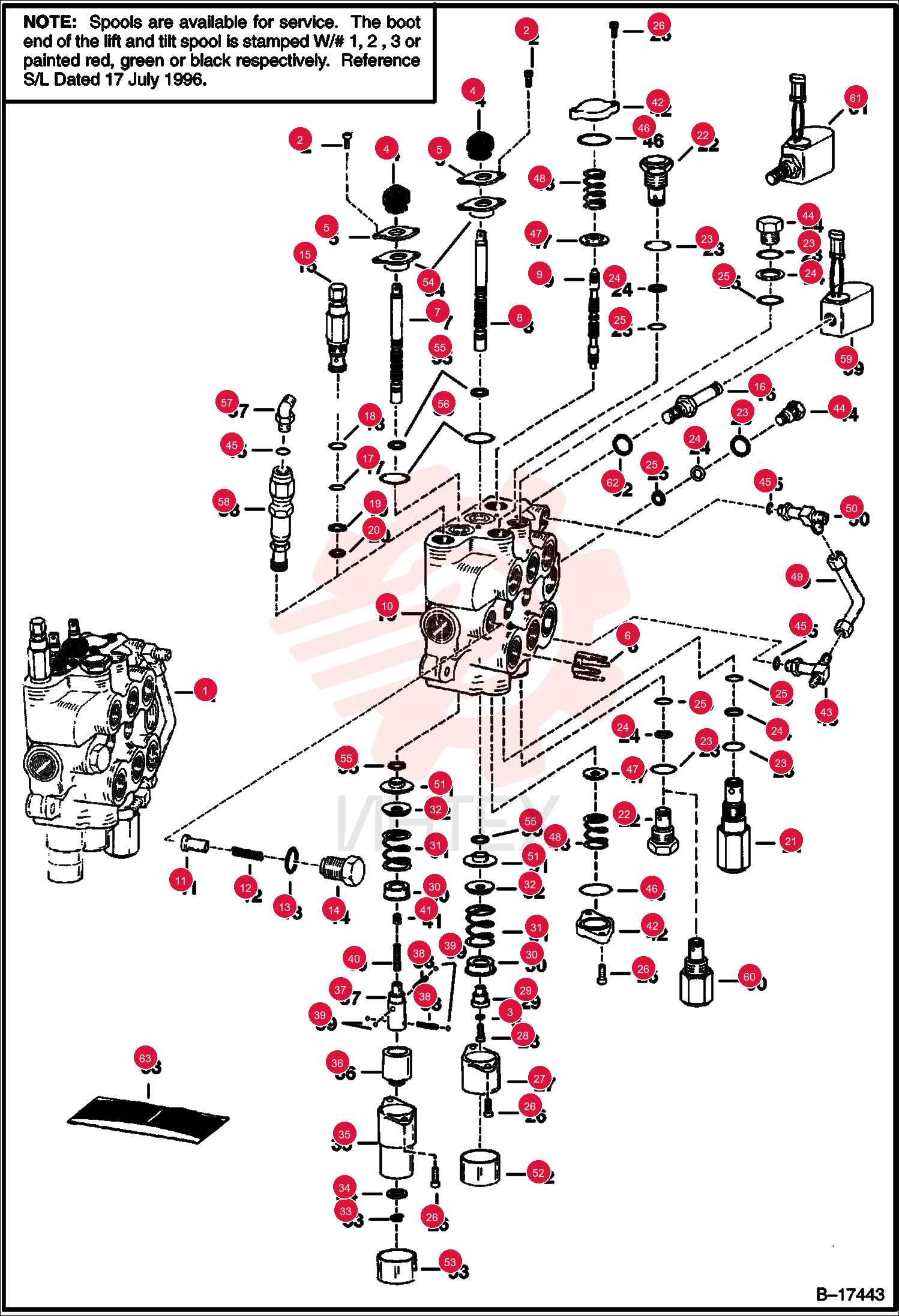

SCREW 6588163 (1)
1 6588163
- 6588163 - SCREW
2 22E4
- 22E4 - WASHER
3 6587763
- 6587763 - BOOT
4 6589564
- 6589564 - RETAINER
- flat
5 6534630
- 6534630 - RESTRICTOR
- .134/.141
6 6666576
- 6666576 - SPOOL
- BOM
- lift - #1 or red - SEE NOTE
7 6666577
- 6666577 - SPOOL
- BOM
- lift - #2 or green - SEE NOTE
8 6666578
- 6666578 - SPOOL BOM
- lift - (3) black - SEE NOTE
9 6666579
- 6666579 - SPOOL
- TILT
- tilt - #1 or red - SEE NOTE
10 6666580
- 6666580 - SPOOL
- TILT
- tilt - #2 or green - SEE NOTE
11 6666581
- 6666581 - SPOOL
- TILT
- tilt - #3 or black - SEE NOTE
12 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
13 6592115
- 6592115 - SEAT
14 6592117
- 6592117 - SPRING
- LOAD CHECK
15 79K8
- 79K8 - O RING 10
16 6592116
- 6592116 - NUT
- load check
17 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
18 6665758
- 6665758 - STEM
- W/Ref. 62
19 58K017
- 58K017 - O-RING 10
20 6665569
- 6665569 - RING
- BACK-UP
- back-up
21 25K20016
- 25K20016 - O RING 10
22 6665570
- 6665570 - CLYD RING
- glide
23 6599161
- 6599161 - VALVE
- RELIEF
- port relief - 3400-3600 PSI - W/Ref. 23-25
24 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity check - W/Ref. 23-25 - Was 6661345
25 79K10
- 79K10 - O RING 10
26 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
27 58K014
- 58K014 - O-RING 10
- back-up washer required
28 6677106
- 6677106 - O-RING
- back-up washer NOT required
29 6588982
- 6588982 - SCREW
30 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
31 6592109
- 6592109 - ADAPTER
32 6592100
- 6592100 - COLLAR
33 6587580
- 6587580 - SPRING
34 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
35 799119
- 799119 - RING
36 6592098
- 6592098 - WASHER
37 6589226
- 6589226 - COVER
- END
- 0.63" flange
38 6531270
- 6531270 - SLEEVE
- DETENT
- lift
39 6587575
- 6587575 - ADAPTER
40 6592107
- 6592107 - SPRING
- DETENT 5
41 6592105
- 6592105 - BALL 5
42 6586918
- 6586918 - SCREW
- DETENT
43 6592752
- 6592752 - PLUG
- plastic
44 6588981
- 6588981 - END CAP
45 6805696
- 6805696 - TEE
- W/Ref. 45 - W/ flared end O-rings - Was 6587888
46 97K6
- 97K6 - O-RING
- flared end
47 6592720
- 6592720 - PLUG
- W/Ref. 23-25
48 79K6
- 79K6 - O RING 10
49 58K124
- 58K124 - O RING 10
50 6537096
- 6537096 - WASHER
51 6588197
- 6588197 - SPRING
52 6577690
- 6577690 - TUBELINE
53 6805243
- 6805243 - FITTING ELBOW
- W/Ref. 45 - W/ flared end O-rings
54 97K6
- 97K6 - O-RING
- flared end
55 6595663
- 6595663 - BUSHING
56 6662848
- 6662848 - CAP
57 6660644
- 6660644 - CAP
58 6589565
- 6589565 - SEAL
- seal
59 6683274
- 6683274 - SEAL
- SPOOL 10
- - spool - Was 6665846
60 1K127
- 1K127 - O-RING 10
- Was 93K127
61 18KB0606
- 18KB0606 - FITTING
- HYD ELBOW
- W/Ref. 45 - Was 18K5
62 6661225
- 6661225 - VALVE
- RELIEF
- main relief - 3250-3350 PSI - for highhorsepower option
63 6717708
- 6717708 - COIL
- 14 VOLT
- 14 volt - W/Nut - Was 6665759
64 6679961
- 6679961 - NUT
65 6664373
- 6664373 - VALVE
- RELIEF
- optional - port relief & anti-cav. -W/Ref. 23 - 2500 PSI - use in tilt cylinder base end port
66 6653395
- 6653395 - VALVE
- SOLENOID
- solenoid - Ref. 16 & 59
67 6586459
- 6586459 - SEAL KIT
68 79K7
- 79K7 - O RING 10
69 6816250
- 6816250 - KIT
- SEAL
- - Ref. 2
- 4
- 26
- 41
- 55 & 56 - for one spool - Was 6803605
70 6632279
- 6632279 - KIT
- SEAL
- main relief - Ref. 17 - 20
71 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 23 - 25 - Was 6586461
72 6816715
- 6816715 - KIT
- SEAL
- - Ref. 4
- 13
- 17-20
- 23-25
- 45
- 46
- 55
- 56 & 62 - Was 6596311
