Bobcat
/
753.0
/

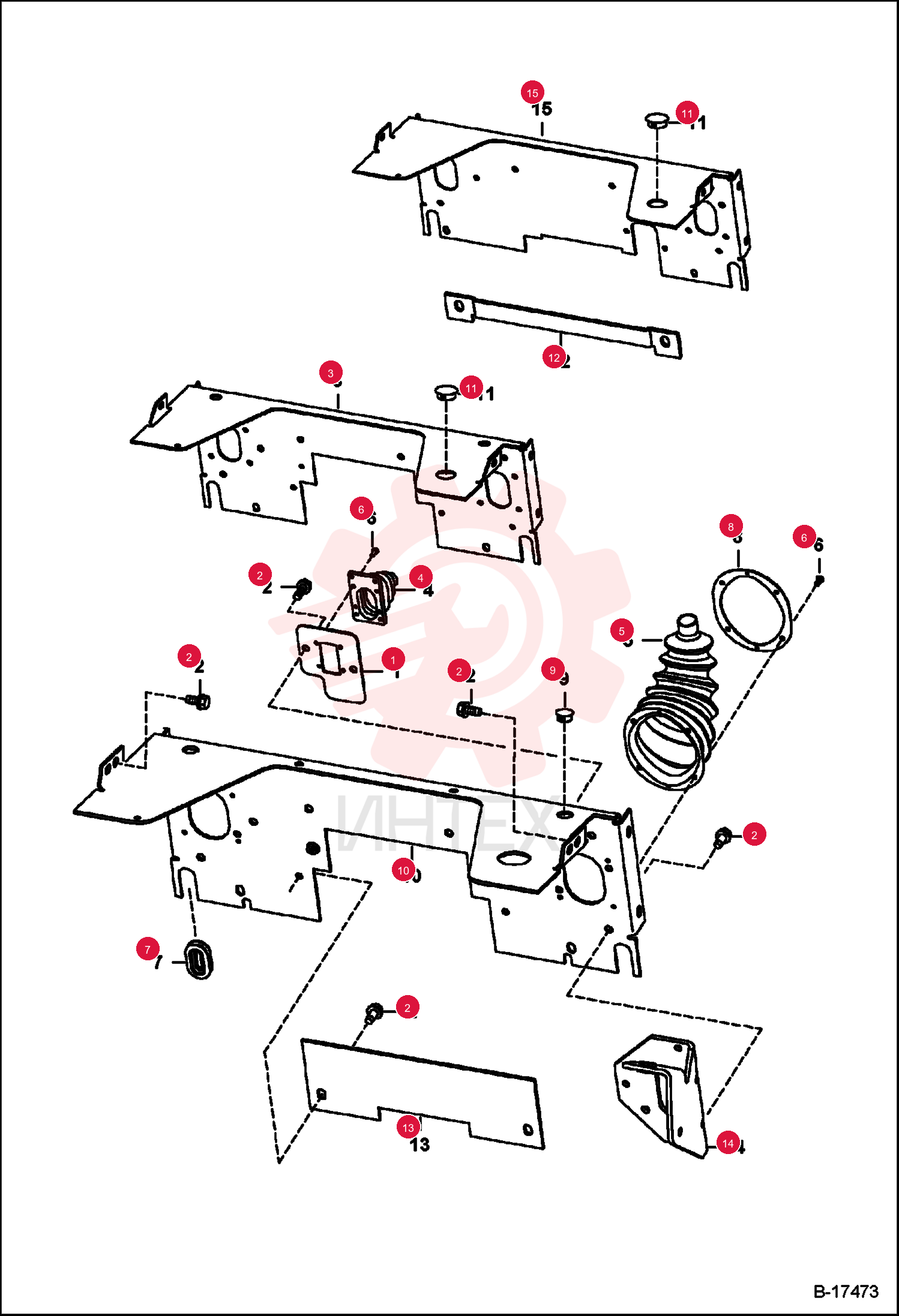

BRACKET 6576486 (1)

BRACKET 6576486 (1)

BRACKET 6576486 (1)

1 6576486

  • 6576486 - BRACKET

2 84G3712

  • 84G3712 - SCREW THD ROLLING TT

3 6532127

  • 6532127 - BOOT AND PLATE ASSY
  • W/Ref. 8 - Was 6655676

4 6630207

  • 6630207 - RIVET POP
  • Was 6630193

5 6577961

  • 6577961 - GROMMET

6 5289686

  • 5289686 - PLUG
  • black - 0.38" dia hole

7 6657719

  • 6657719 - PLUG
  • 0.75" dia hole

8 7139183

  • 7139183 - SHIELD

9 6681469

  • 6681469 - PLUG
  • 35 mm (1.38") dia hole - Was 6665697

10 6718446

  • 6718446 - COVER
  • 5.25" x 13" (133
  • 4 mm x 330
  • 2 mm)
