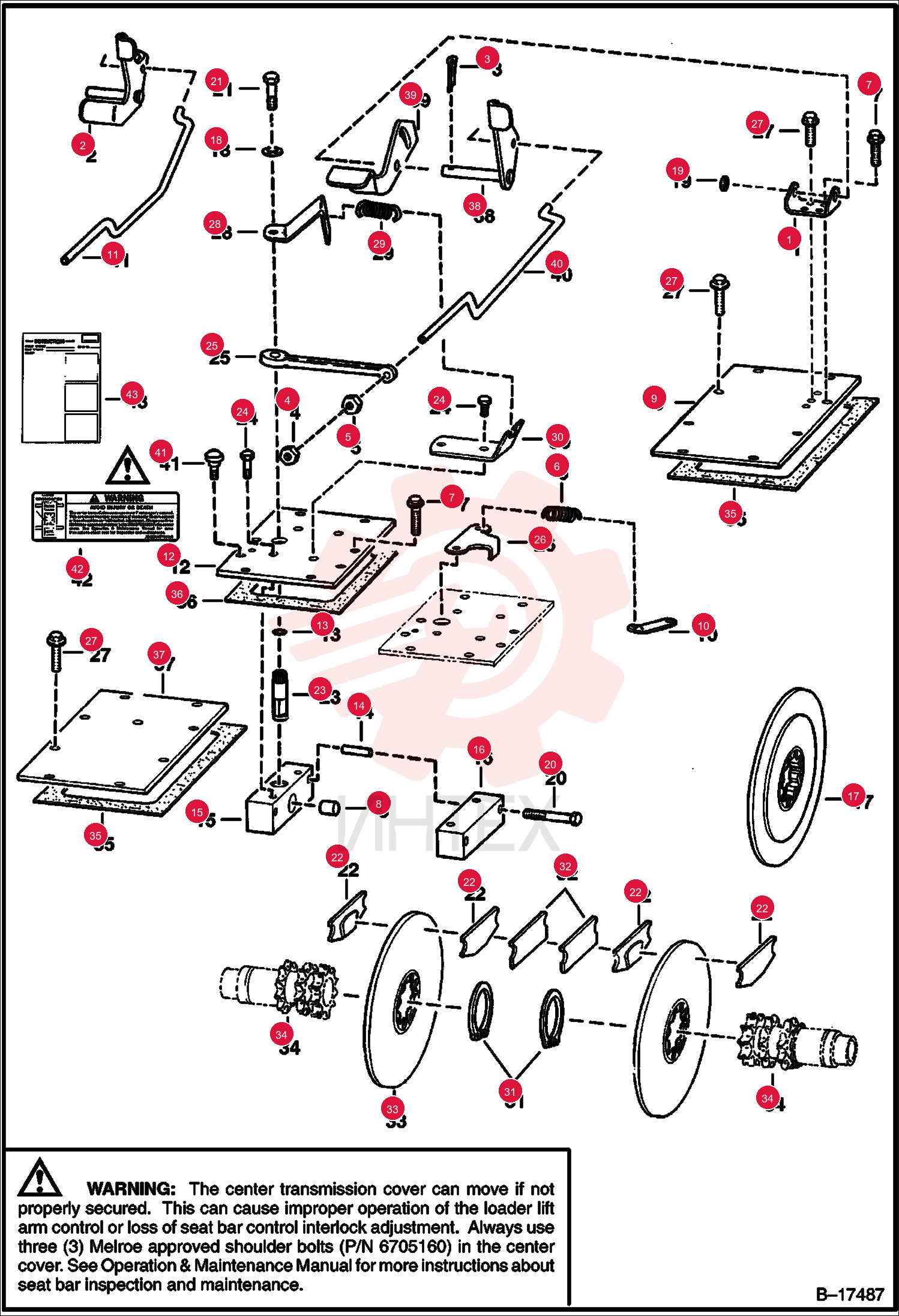

MOUNT 6700073 (1)

MOUNT 6700073 (1)

MOUNT 6700073 (1)

1 6700073

  • 6700073 - MOUNT

2 1318565

  • 1318565 - PIN 5

3 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

4 6564669

  • 6564669 - NUT WHEEL
  • Was 6519169

5 6505076

  • 6505076 - SPRING

6 84G3716

  • 84G3716 - SCREW THD ROLLING TT

7 84G3716

  • 84G3716 - SCREW THD ROLLING TT

8 6569927

  • 6569927 - INSERT

9 6578505

  • 6578505 - COVER

10 6559218

  • 6559218 - ANGLE

11 6704334

  • 6704334 - COVER
  • Was 6575962

12 25K30100

  • 25K30100 - O RING 10

13 6571796

  • 6571796 - SPACER

14 6571795

  • 6571795 - BLOCK

15 6571794

  • 6571794 - BLOCK

16 6506477

  • 6506477 - WASHER

17 25E25

  • 25E25 - WASHER FLAT PLAIN

18 17C880

  • 17C880 - BOLT

19 17C820

  • 17C820 - BOLT 5

20 6700706

  • 6700706 - PAD
  • BRAKE

21 6569842

  • 6569842 - PIN

22 17C816

  • 17C816 - BOLT

23 6563823

  • 6563823 - LEVER

24 6577552

  • 6577552 - LEVER

25 84G3712

  • 84G3712 - SCREW THD ROLLING TT

26 6701626

  • 6701626 - LEVER

27 6584584

  • 6584584 - SPRING

28 6701627

  • 6701627 - BRACKET

29 6658672

  • 6658672 - RING
  • RETAINER

30 6702805

  • 6702805 - SPACER

31 6702792

  • 6702792 - BRAKE
  • DISC

32 6705065

  • 6705065 - SHAFT
  • TRANS
  • Was 6703089

33 6703097

  • 6703097 - GASKET
  • TRANS COVER

34 6703098

  • 6703098 - GASKET

35 6700330

  • 6700330 - COVER

36 6704812

  • 6704812 - PEDAL
  • BRAKE
  • brake

37 6704811

  • 6704811 - PEDAL
  • BRAKE
  • brake

38 6704809

  • 6704809 - ROD

39 6705160

  • 6705160 - BOLT
  • Always use (3) 6705160 Shoulder Bolts in Center Cover ... SEE WARNING ON ILLUSTRATION

40 6705158

  • 6705158 - DECAL
  • WARNING
  • warning

41 6722343

  • 6722343 - INSTRUCTIONS
