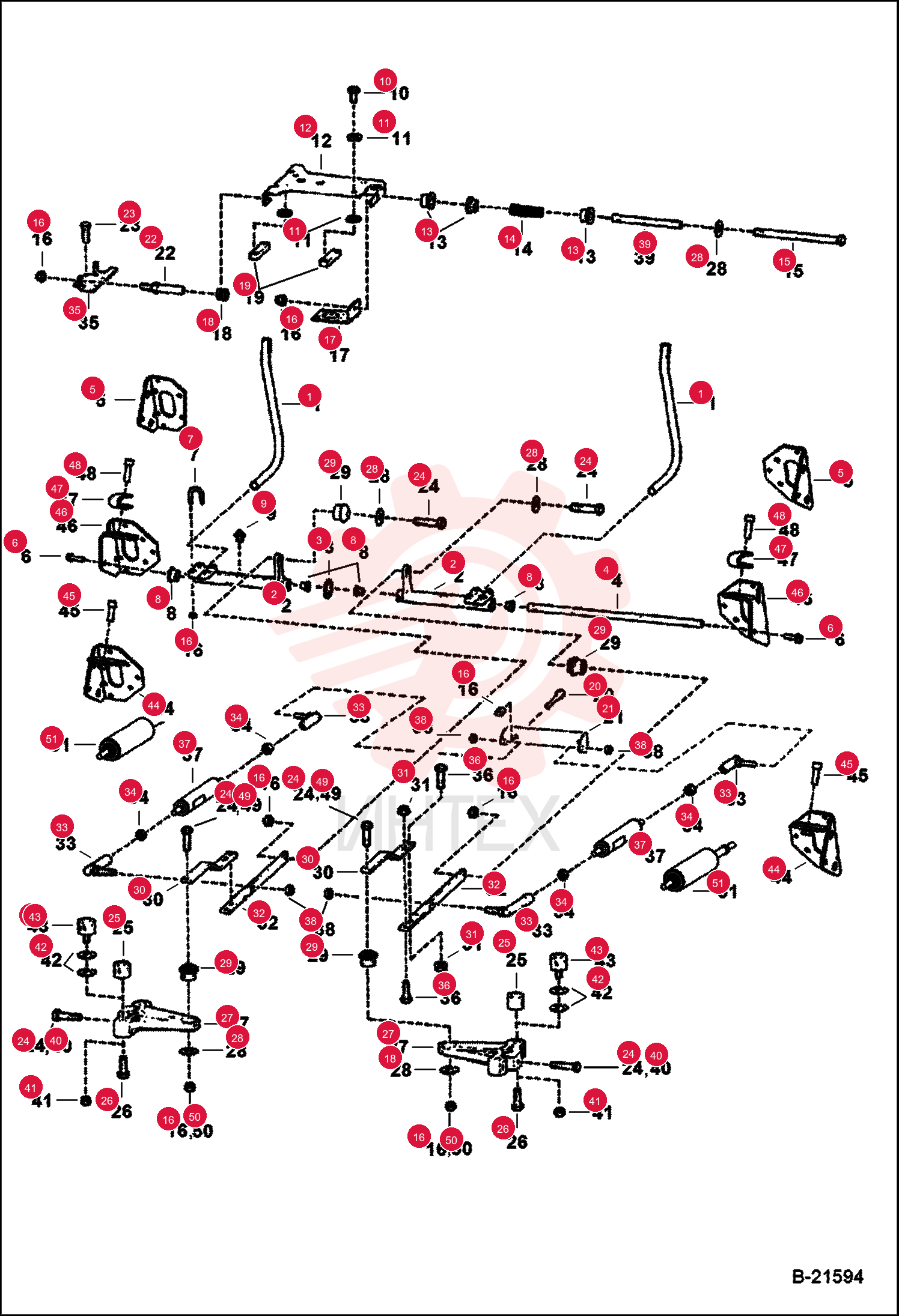

LEVER, STEERING 6702543 (5)
1 6702543
- 6702543 - LEVER
- STEERING
2 7110571
- 7110571 - BELLCRANK
- STEERING
- W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)
3 6716977
- 6716977 - BELLCRANK
- W/O Notch for bushing tab
4 6599741
- 6599741 - WASHER WAVE SPRING
- wave
5 6716545
- 6716545 - SHAFT
- STRG
6 6577230
- 6577230 - BRACKET
7 45C620
- 45C620 - BOLT
- Was 45C000624B
8 6732997
- 6732997 - U-BOLT
- Was 6700768
9 6673710
- 6673710 - BEARING
- NEEDLE
- W/ O Notch
10 6703879
- 6703879 - BUSHING
- PLASTIC
- W/tab
11 10H35
- 10H35 - FTG GREASE STRAIGHT
- threaded
12 6518200
- 6518200 - FITTNG
- GREASE 10
- press fit
13 8C616
- 8C616 - SCREW
14 6557831
- 6557831 - WASHER CONTROLS
15 6706095
- 6706095 - MOUNT
16 6715163
- 6715163 - BUSHING
- PRESS FIT
17 6701535
- 6701535 - SPRING CENTERING
18 17C680
- 17C680 - BOLT
19 95D6
- 95D6 - NUT HEXAGON
20 95D6
- 95D6 - NUT HEXAGON
21 6576196
- 6576196 - BRACKET
22 6706098
- 6706098 - GUIDE
- PRESS FIT
23 6702716
- 6702716 - BLOCK
- WEAR
24 17C612
- 17C612 - SCREW HEX CAP
25 6706106
- 6706106 - MOUNT
26 6577058
- 6577058 - PIN
- HAND CONTROL
27 4CM820
- 4CM820 - SCREW HEX HD 8.8
- Was 1CM820
28 17C626
- 17C626 - BOLT
29 17C626
- 17C626 - BOLT
30 17C626
- 17C626 - BOLT
31 6711643
- 6711643 - CAM
- WEAR
32 35C612
- 35C612 - SCREW FLGD HEX CAP
33 6729956
- 6729956 - LEVER
- PINTLE
- 1.0475" (26
- 5 mm) I.D. hole for Ref. 29 (6678067 Bushing)
34 6563914
- 6563914 - WASHER
- 1.00" (25
- 4 mm) O.D.
35 619021
- 619021 - WASHER
- 0.13" thick - 32 mm (1.25") OD
36 6665701
- 6665701 - BUSHING
- PRESS FIT
- neoprene - .885" (22
- 5 mm) O.D.
37 6685060
- 6685060 - BUSHING TORSION
- torsion - 26
- 8 mm (1.055") OD - Was 6678067
38 6576194
- 6576194 - STEER.LIN
- Was 6702372
39 83D6
- 83D6 - LKNUT HEX FLG GR8
40 6576195
- 6576195 - STEER.LIN
41 6599744
- 6599744 - BALL JOINT
42 8D6
- 8D6 - NUT HEX JAM
43 6706096
- 6706096 - MOUNT
44 17C620
- 17C620 - BOLT
45 62D6
- 62D6 - NUT HEX FINISHED GR5
46 6715164
- 6715164 - SLEEVE
- SPRING
47 35C624
- 35C624 - SCREW FLGD HEX CAP
48 98D6
- 98D6 - NUT
- AHC
49 25E17
- 25E17 - WASHER FLAT PLAIN
- AHC
50 6673789
- 6673789 - BEARING
- ROLLER
- ROLLER - AHC
51 93G824
- 93G824 - BOLT
- Was 73G824
52 7128601
- 7128601 - BRACKET
- LH
53 7128600
- 7128600 - BRACKET
- RH
54 7121779
- 7121779 - PAD
55 73G828
- 73G828 - BOLT
56 17C628
- 17C628 - BOLT
57 53D6
- 53D6 - NUT
58 7188108
- 7188108 - GAS SPRING
