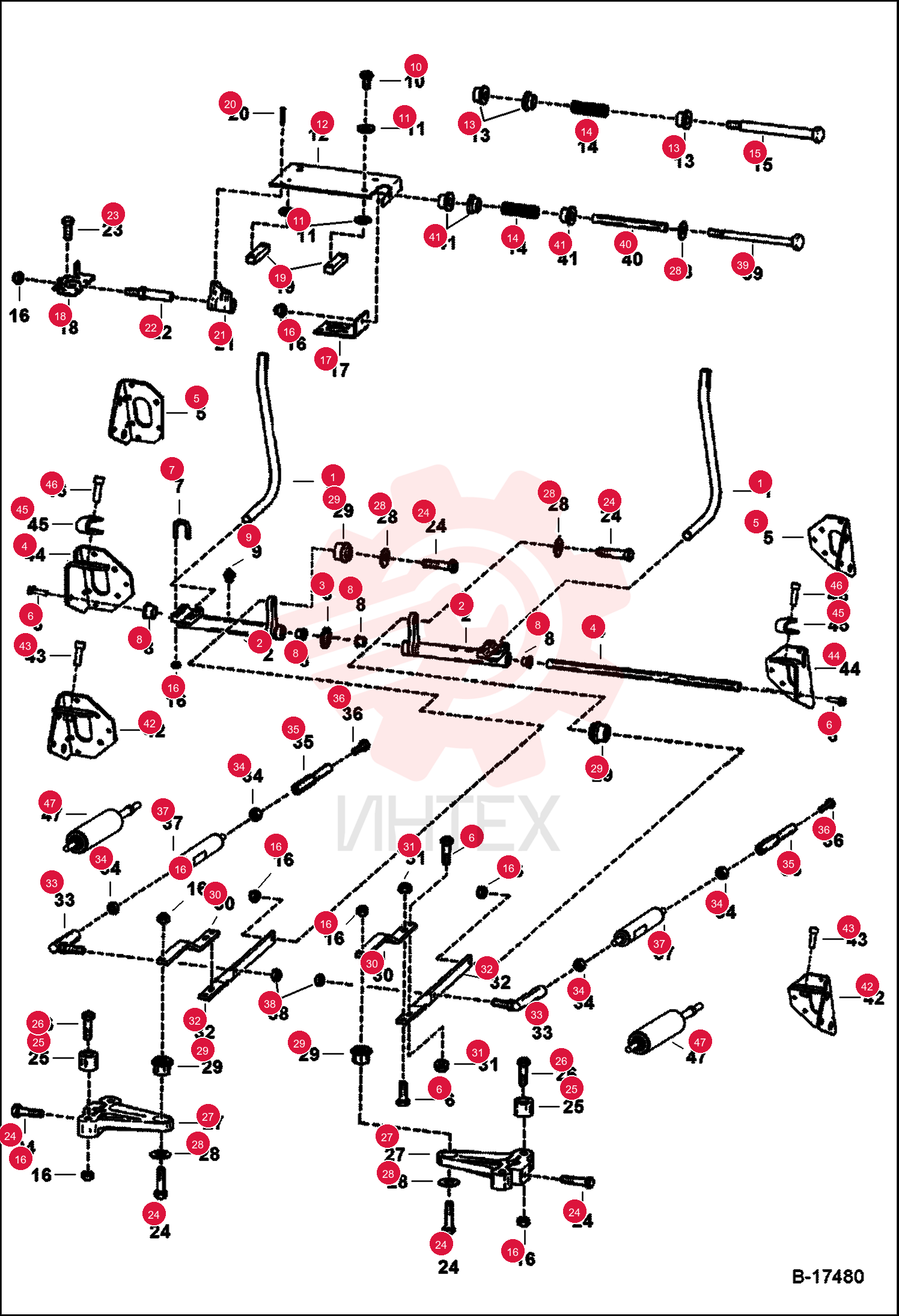

LEVER, STEERING 6702543 (1)
1 6702543
- 6702543 - LEVER
- STEERING
2 6576991
- 6576991 - LEVER
3 7110571
- 7110571 - BELLCRANK
- STEERING
- W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)
4 6599741
- 6599741 - WASHER WAVE SPRING
- wave
5 6716545
- 6716545 - SHAFT
- STRG
- Use W/Ref. 6 (45C-620 Bolt)
6 6577230
- 6577230 - BRACKET
7 17C616
- 17C616 - BOLT 5
- Was 17C000620B
8 45C620
- 45C620 - BOLT
- Was 45C000624B
9 6732997
- 6732997 - U-BOLT
- Was 6700768
10 6703879
- 6703879 - BUSHING
- PLASTIC
- W/tab
11 6518200
- 6518200 - FITTNG
- GREASE 10
- press fit
12 10H35
- 10H35 - FTG GREASE STRAIGHT
- threaded
13 8C616
- 8C616 - SCREW
14 6557831
- 6557831 - WASHER CONTROLS
15 6576198
- 6576198 - BRACKET
16 6701535
- 6701535 - SPRING CENTERING
17 95D6
- 95D6 - NUT HEXAGON
- Was 91D000006B
18 6576196
- 6576196 - BRACKET
19 6576197
- 6576197 - BRACKET
20 6702716
- 6702716 - BLOCK
- WEAR
- Was 6576199
21 58G1012
- 58G1012 - SCREW
- Was 6657739
22 6576201
- 6576201 - GUIDE
- plastic
23 6577058
- 6577058 - PIN
- HAND CONTROL
24 4CM820
- 4CM820 - SCREW HEX HD 8.8
- Was 1CM820
25 17C626
- 17C626 - BOLT
26 6704435
- 6704435 - CAM
- WEAR
- Was 6576200
27 93G616
- 93G616 - SCREW
28 6701145
- 6701145 - LEVER
- PINTLE
- .63" pump lever shaft - Was NLA
29 6563914
- 6563914 - WASHER
- 1.00" (25
- 4 mm) O.D.
30 619021
- 619021 - WASHER
- 0.13" thick - 32 mm (1.25") OD
31 6685060
- 6685060 - BUSHING TORSION
- torsion - 26
- 8 mm (1.055") OD - Was 6678067
32 6665701
- 6665701 - BUSHING
- PRESS FIT
- neoprene - .885" (22
- 5 mm) O.D. - Was 6630081
33 6576194
- 6576194 - STEER.LIN
34 83D6
- 83D6 - LKNUT HEX FLG GR8
35 6576195
- 6576195 - STEER.LIN
36 6599744
- 6599744 - BALL JOINT
37 8D6
- 8D6 - NUT HEX JAM
- Was 62D000006B
38 18C612
- 18C612 - BOLT
39 62D6
- 62D6 - NUT HEX FINISHED GR5
40 17C680
- 17C680 - BOLT
41 6715164
- 6715164 - SLEEVE
- SPRING
42 6715163
- 6715163 - BUSHING
- PRESS FIT
43 93G824
- 93G824 - BOLT
- Was 73G824
44 7128600
- 7128600 - BRACKET
- RH
45 7128601
- 7128601 - BRACKET
- LH
46 7121779
- 7121779 - PAD
47 73G828
- 73G828 - BOLT
48 7188108
- 7188108 - GAS SPRING
