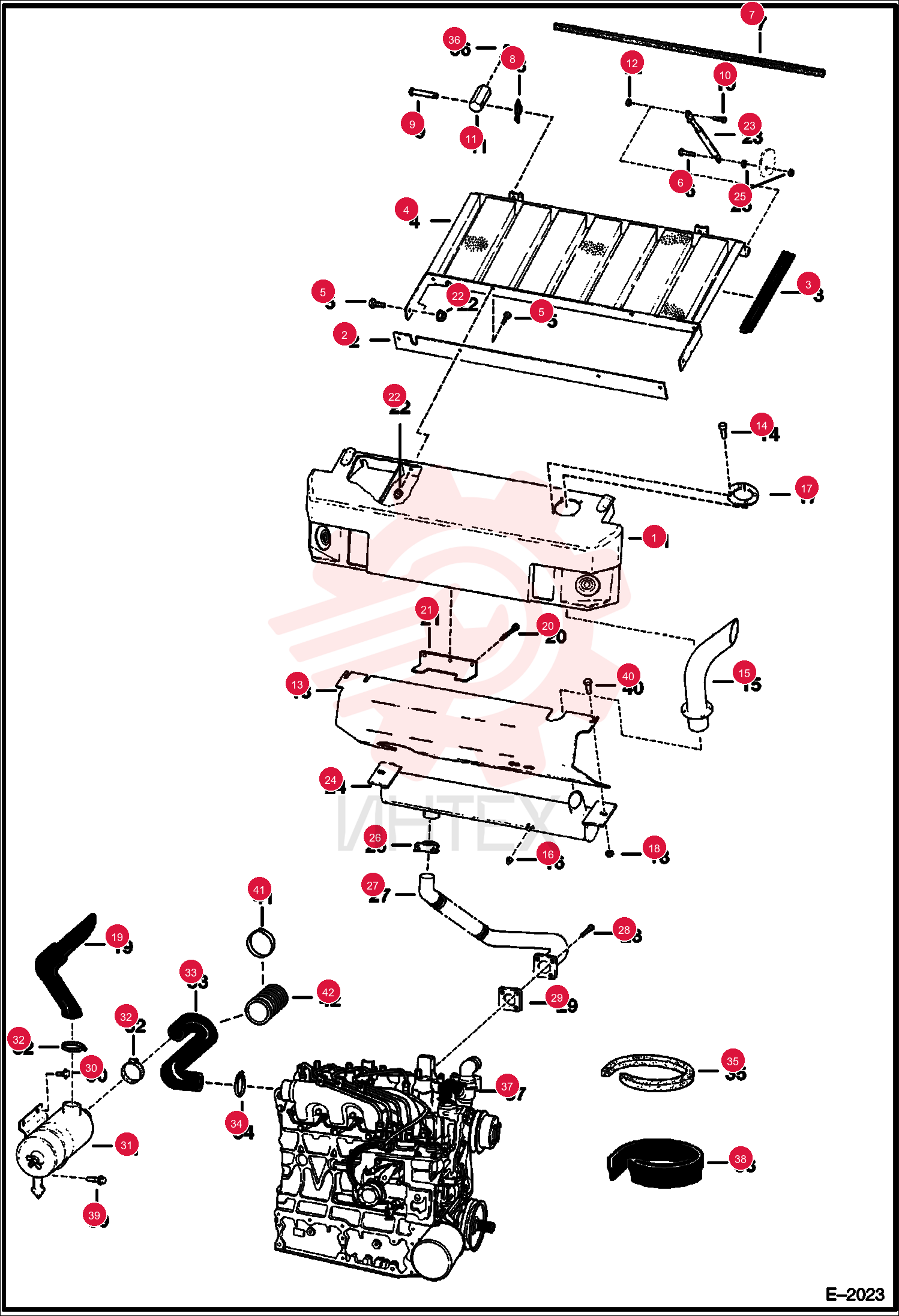

SEAL GRIL 6701237
1 6701237
- 6701237 - SEAL GRIL
2 6701242
- 6701242 - GRILLE ASSEMBLY
3 17C512
- 17C512 - BOLT 5
4 17C624
- 17C624 - BOLT 5
5 6631418
- 6631418 - RING RUE
6 6567743
- 6567743 - PIN
7 17C612
- 17C612 - SCREW HEX CAP
8 6579326
- 6579326 - MOUNT
9 85D6
- 85D6 - NUT PRETRQ HEX LOCK
10 6703812
- 6703812 - SHIELD
- Was 6701186
11 6657701
- 6657701 - RIVET
12 6700169
- 6700169 - TUBE EXHAUST
- exhaust
13 6661062
- 6661062 - PLUG
- PIPE
- brass - 0.38" - Was 866104B
14 6578710
- 6578710 - RING
15 83D6
- 83D6 - LKNUT HEX FLG GR8
16 6703332
- 6703332 - HOSE
- Was 6701148
17 58G2512
- 58G2512 - SCREW
18 6578362
- 6578362 - BRACKET
19 83D5
- 83D5 - LKNUT HEX FLG GR8
20 6673758
- 6673758 - SPRING
- GAS
- Was 6674285
21 6658175
- 6658175 - MUFFLER
- SPARK ARRESTOR
22 61D6
- 61D6 - NUT HEX FINISHED GR5
23 6677363
- 6677363 - CLAMP
- FULL CIRCLE
- Was 657904B
24 6701151
- 6701151 - TUBE
- EXHAUST
25 6701123
- 6701123 - SCREW STAINLESS STL
26 6575580
- 6575580 - GASKET
- muffler - Was 6598088
27 84G3708
- 84G3708 - SCREW
28 6700711
- 6700711 - AIR CLNR
29 42HL300
- 42HL300 - CLAMP
- Was 6598799
30 6705281
- 6705281 - HOSE
- W/Ref. 41 & 42 - Was 6701150
31 42H32
- 42H32 - HS CLAMP5
- Was 42H000024B
32 6511855
- 6511855 - TAPE BULK/FT 25'
- self adhesive - sold per foot
33 17C608
- 17C608 - BOLT
34 6646705
- 6646705 - MOULDING BULK/FT
- sold per foot
35 84G3712
- 84G3712 - SCREW THD ROLLING TT
36 35C612
- 35C612 - SCREW FLGD HEX CAP
37 6664004
- 6664004 - CLAMP
38 6706393
- 6706393 - SHIELD HEAT
- 5" (127 mm) long
