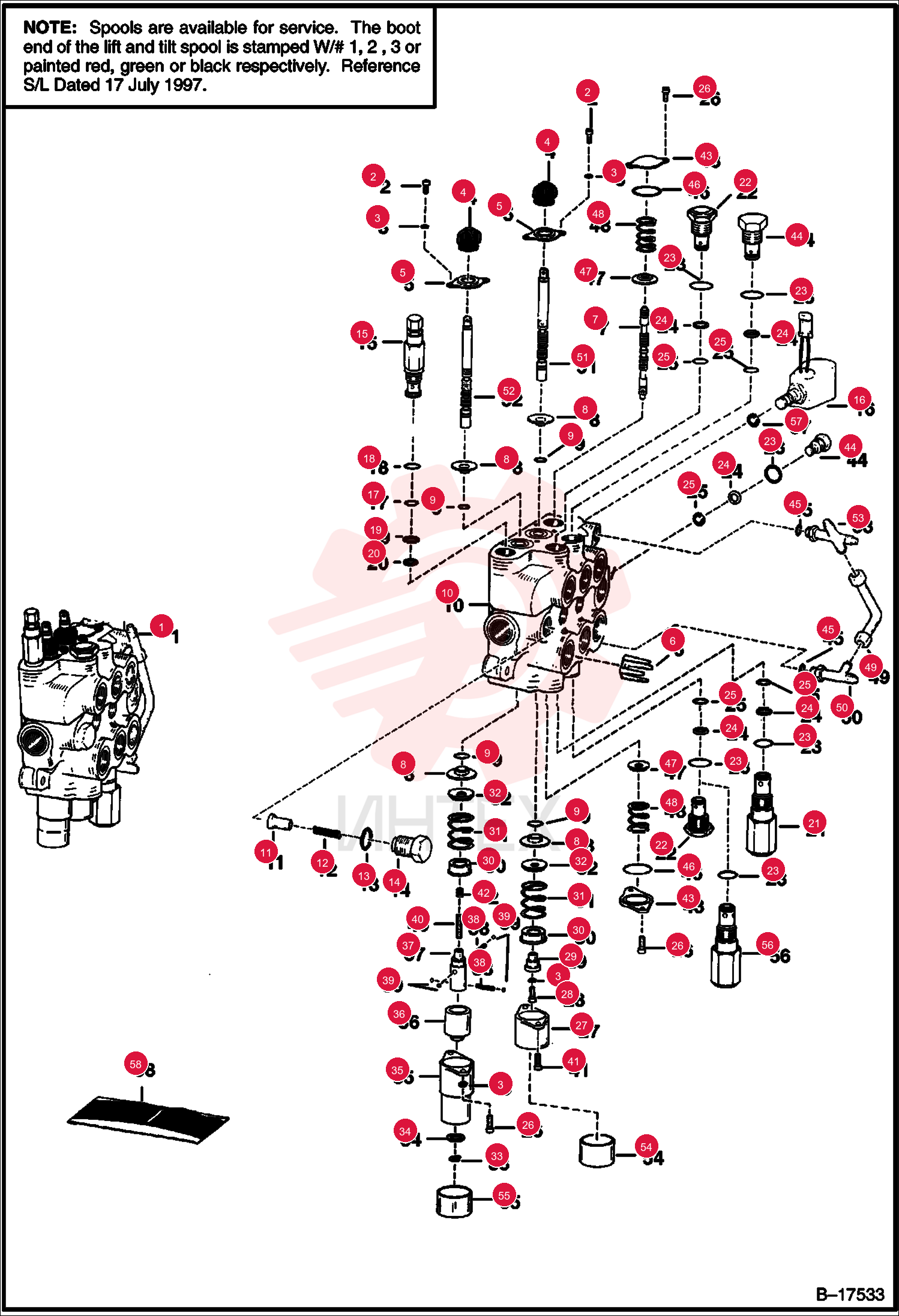

SCREW 6588165 (2)
1 6588165
- 6588165 - SCREW
2 22E4
- 22E4 - WASHER
3 6587763
- 6587763 - BOOT
4 6592123
- 6592123 - RETAINER
5 6534630
- 6534630 - RESTRICTOR
- .134/.141
6 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
7 6538466
- 6538466 - BUSHING
8 6665089
- 6665089 - SEAL 5
- lip seal - Was 6659554
9 6646372
- 6646372 - SEAL
- QUAD RING
- quad ring seal
10 6592115
- 6592115 - SEAT
11 6592117
- 6592117 - SPRING
- LOAD CHECK
12 79K8
- 79K8 - O RING 10
13 6592116
- 6592116 - NUT
- load check
14 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
15 6586459
- 6586459 - SEAL KIT
16 6679961
- 6679961 - NUT
17 6717708
- 6717708 - COIL
- 14 VOLT
- 14 volt - W/Nut - Was 6665759
18 6665758
- 6665758 - STEM
- W/Ref. 57
19 6653395
- 6653395 - VALVE
- SOLENOID
- solenoid - W/Ref. 57
20 58K017
- 58K017 - O-RING 10
21 6665569
- 6665569 - RING
- BACK-UP
- back-up
22 25K20016
- 25K20016 - O RING 10
23 6665570
- 6665570 - CLYD RING
- glide
24 6599161
- 6599161 - VALVE
- RELIEF
- port relief - 3400-3600 PSI - W/Ref. 23-25
25 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity check - W/Ref. 23-25 - Was 6661345
26 79K10
- 79K10 - O RING 10
27 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
28 6677106
- 6677106 - O-RING
- back-up washer NOT required
29 58K014
- 58K014 - O-RING 10
- back-up washer required
30 6588982
- 6588982 - SCREW
31 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
32 6592109
- 6592109 - ADAPTER
33 6592100
- 6592100 - COLLAR
34 6587580
- 6587580 - SPRING
35 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
36 799119
- 799119 - RING
37 6592098
- 6592098 - WASHER
38 6592094
- 6592094 - BONNET
39 6531270
- 6531270 - SLEEVE
- DETENT
- lift
40 6587575
- 6587575 - ADAPTER
41 6592107
- 6592107 - SPRING
- DETENT 5
42 6592105
- 6592105 - BALL 5
43 6586918
- 6586918 - SCREW
- DETENT
44 69G414
- 69G414 - BOLT
- Was 6588164
45 6596807
- 6596807 - PLUG
- plastic - 0.46" long
46 54K20002
- 54K20002 - O'RING 10
47 6588981
- 6588981 - END CAP
48 6592720
- 6592720 - PLUG
- W/Ref. 23-25
49 79K6
- 79K6 - O RING 10
50 58K124
- 58K124 - O RING 10
51 6537096
- 6537096 - WASHER
52 6530899
- 6530899 - SPRING
53 6577690
- 6577690 - TUBELINE
54 6805243
- 6805243 - FITTING ELBOW
- W/Ref. 45 - W/ flared end O-rings
55 97K6
- 97K6 - O-RING
56 6666581
- 6666581 - SPOOL
- TILT
- tilt - # 3 or Black - SEE NOTE
57 6666580
- 6666580 - SPOOL
- TILT
- tilt - # 2 or Green - SEE NOTE
58 6666579
- 6666579 - SPOOL
- TILT
- tilt - # 1 or Red - SEE NOTE
59 6666578
- 6666578 - SPOOL BOM
- lift - (3) black - SEE NOTE
60 6666577
- 6666577 - SPOOL
- BOM
- lift - #2 or green - SEE NOTE
61 6666576
- 6666576 - SPOOL
- BOM
- lift - #1 or red - SEE NOTE
62 6817553
- 6817553 - CROSS
- W/Ref. 45 - W/ flared end O-rings - Was 6805241
63 97K6
- 97K6 - O-RING
64 6662848
- 6662848 - CAP
65 6631704
- 6631704 - CAP
66 6664373
- 6664373 - VALVE
- RELIEF
- optional port relief & anti-cav. - W/Ref. 23 - 2500 PSI - use in tilt cylinder base end port
67 79K7
- 79K7 - O RING 10
68 6816250
- 6816250 - KIT
- SEAL
- - Ref. 2
- 4
- 9
- 41 & 42 - for one spool - Was 6803605
69 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 23-25 - Was 6586461
70 6816715
- 6816715 - KIT
- SEAL
- - Ref. 4
- 9
- 13
- 17-20
- 23-25
- 42
- 45
- 46 & 57 - Was 6596311
71 6632279
- 6632279 - KIT
- SEAL
- Ref. 17 - 20
