843.0
/

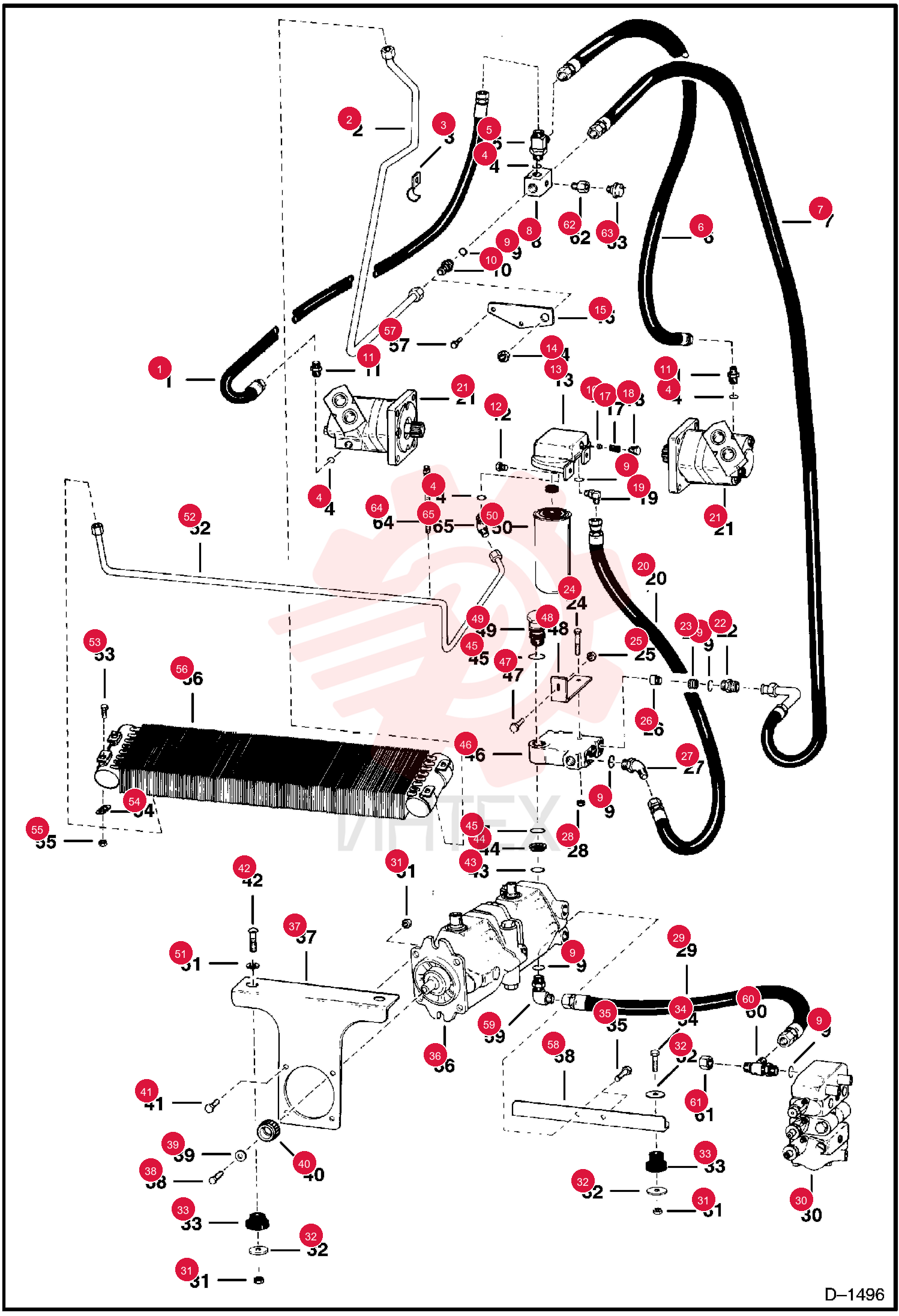

HOSE 3739527 (1)

HOSE 3739527 (1)

HOSE 3739527 (1)

1 3739527

  • 3739527 - HOSE

2 6560023

  • 6560023 - TUBE

3 5H8

  • 5H8 - CLIP

4 79K6

  • 79K6 - O RING 10

5 21K5

  • 21K5 - TEE
  • W/Ref. 4

6 1518597

  • 1518597 - HYD HOSE

7 2755888

  • 2755888 - HOSE

8 6562692

  • 6562692 - BLOCK JCT

9 79K10

  • 79K10 - O RING 10

10 45K7

  • 45K7 - CONNECTR
  • W/Ref. 9

11 15K5

  • 15K5 - FITTING
  • W/Ref. 4

12 84G3712

  • 84G3712 - SCREW THD ROLLING TT

13 86F7

  • 86F7 - NUT 5

14 6560033

  • 6560033 - BRACKET

15 6515078

  • 6515078 - POPPET

16 6553897

  • 6553897 - SPRING

17 6557476

  • 6557476 - PLUG

18 6519195

  • 6519195 - ELBOW
  • W/Ref. 9

19 1524780

  • 1524780 - HOSE

20 6562656

  • 6562656 - ADAPTOR
  • W/Ref. 9

21 6562691

  • 6562691 - SPRING

22 17C640

  • 17C640 - BOLT

23 57D6

  • 57D6 - NUT HEX FLNG GR8

24 6565620

  • 6565620 - POPPET

25 18K7

  • 18K7 - FITTING
  • W/Ref. 9

26 61D6

  • 61D6 - NUT HEX FINISHED GR5

27 659892

  • 659892 - HOSE ASSY

28 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

29 6564692

  • 6564692 - WASHER

30 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • shock

31 17C836

  • 17C836 - BOLT

32 17C712

  • 17C712 - BOLT

33 6562301

  • 6562301 - MOUNT
  • pump

34 18C616

  • 18C616 - BOLT 5

35 616783

  • 616783 - WASHER

36 6562878

  • 6562878 - ADAPTOR
  • spline

37 17C824

  • 17C824 - BOLT 5

38 17C840

  • 17C840 - BOLT

39 79K12

  • 79K12 - O RING 10

40 6562765

  • 6562765 - WASHER
  • NLA - Was 6562765

41 1K127

  • 1K127 - O-RING 10
  • Was 93K127

42 6564034

  • 6564034 - BLOCK
  • port

43 31C616

  • 31C616 - SCREW

44 6562872

  • 6562872 - BRACKET

45 6562751

  • 6562751 - SCREW
  • hollow

46 6559458

  • 6559458 - FILTER

47 6560899

  • 6560899 - WASHER
  • adj.

48 6563908

  • 6563908 - TUBE
  • Use W/Ref. 65 (17K7 elbow)

49 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

50 774220

  • 774220 - NUT

51 57D5

  • 57D5 - NUT HEX FLNG GR8

52 6598438

  • 6598438 - EXCHANGER
  • OIL COOLER

53 17C516

  • 17C516 - BOLT

54 6559453

  • 6559453 - MOUNT
  • pump

55 17K7

  • 17K7 - ELBOW
  • W/Ref. 9

56 21K7

  • 21K7 - FITTING
  • TEE
  • W/Ref. 9

57 36K7

  • 36K7 - FITTING

58 6563920

  • 6563920 - FILTER SNUBBER

59 6563922

  • 6563922 - SNUBBER
  • W/Filter

60 6631695

  • 6631695 - SWITCH
  • hydrostatic oil pressure - Was 6519715

61 6610510

  • 6610510 - STRAP
  • TIE 10

62 15K7

  • 15K7 - FITTING
  • W/Ref. 9

63 17K7

  • 17K7 - ELBOW
  • W/Ref. 9
