Bobcat
/
843.0
/

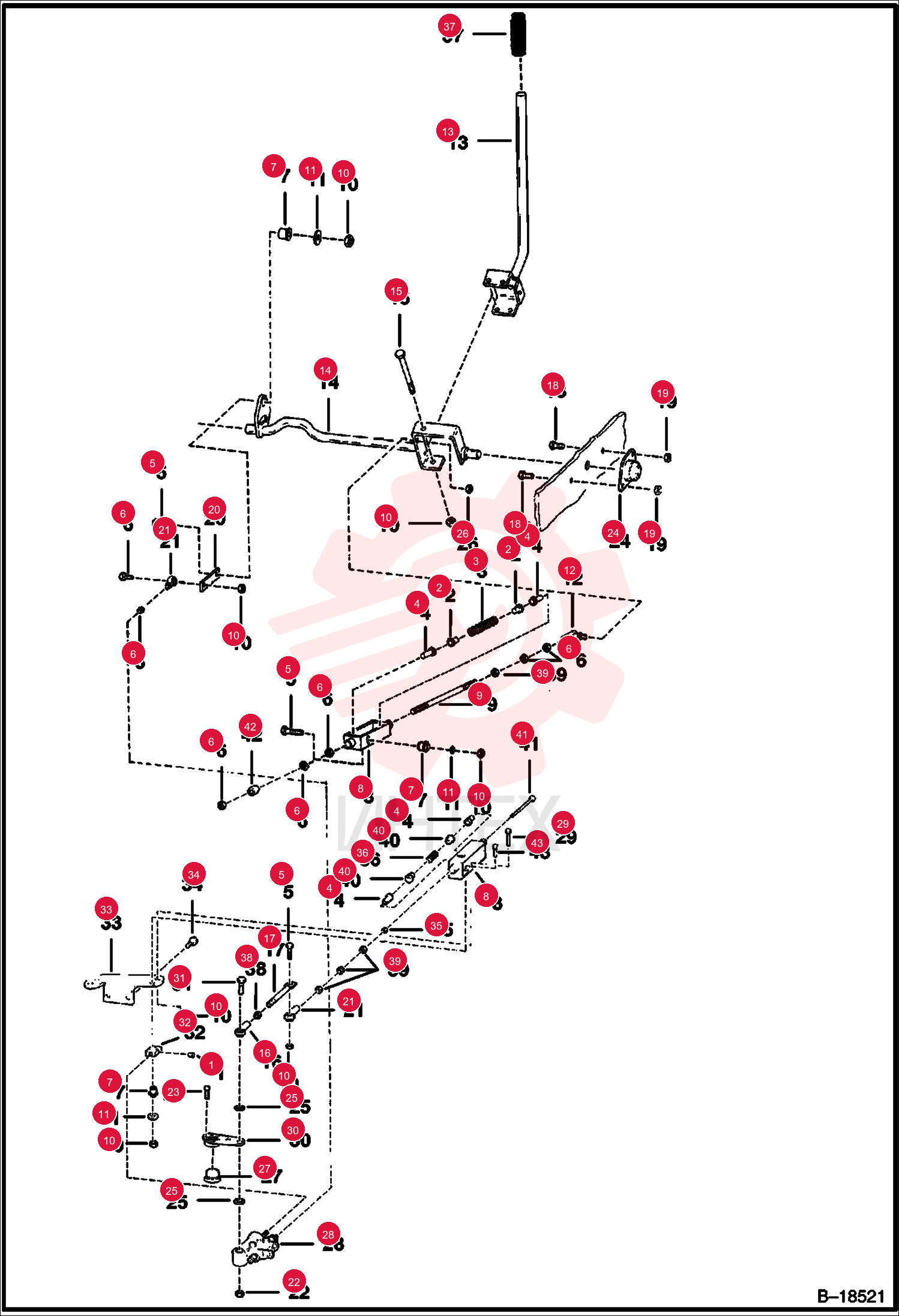

SET SCREW 33G504

SET SCREW 33G504

SET SCREW 33G504

1 33G504

  • 33G504 - SET SCREW

2 6579990

  • 6579990 - BUSHING

3 6700916

  • 6700916 - SPRING

4 6578582

  • 6578582 - BUSHING

5 17C624

  • 17C624 - BOLT 5

6 62D6

  • 62D6 - NUT HEX FINISHED GR5
  • Was 8D000006B

7 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • neoprene - Was 6630081

8 6578581

  • 6578581 - BRACKET

9 6700647

  • 6700647 - ROD
  • Was 6569188

10 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

11 6563914

  • 6563914 - WASHER

12 6599744

  • 6599744 - BALL JOINT

13 6558615

  • 6558615 - ASSY
  • LEVER

14 6576597

  • 6576597 - SHAFT ASSEMBLY
  • Standard

15 6578848

  • 6578848 - SHAFT
  • loaders with High Horsepower Hydraulics

16 6553081

  • 6553081 - BOLT AUX PIVOT

17 6649696

  • 6649696 - ROD
  • END

18 6578574

  • 6578574 - ROD

19 35C612

  • 35C612 - SCREW FLGD HEX CAP

20 83D6

  • 83D6 - LKNUT HEX FLG GR8

21 6568631

  • 6568631 - LINK

22 6649660

  • 6649660 - ROD END

23 85D10

  • 85D10 - NUT
  • 5

24 21G1016

  • 21G1016 - SCREW
  • Was 21G001020B

25 6558736

  • 6558736 - BUSHING PIVOT

26 6584863

  • 6584863 - WASHER

27 86D6

  • 86D6 - NUT

28 6630874

  • 6630874 - BUSHING

29 17C616

  • 17C616 - BOLT 5

30 6577745

  • 6577745 - LEVER PINTLE RH
  • R.H.

31 17C1064

  • 17C1064 - BOLT 5

32 6584289

  • 6584289 - BLOCK

33 6578585

  • 6578585 - BRACKET

34 17C712

  • 17C712 - BOLT

35 6578583

  • 6578583 - BUSHING

36 6579407

  • 6579407 - SPRING

37 6513963

  • 6513963 - GRIP HANDLE

38 62D10

  • 62D10 - NUT

39 62D6

  • 62D6 - NUT HEX FINISHED GR5

40 6571988

  • 6571988 - BUSHING

41 6578577

  • 6578577 - ROD
  • 1/2" (12
  • 7 mm) Head - For 1" (25
  • 4 mm) Head

42 6700648

  • 6700648 - STOP

43 17C626

  • 17C626 - BOLT
