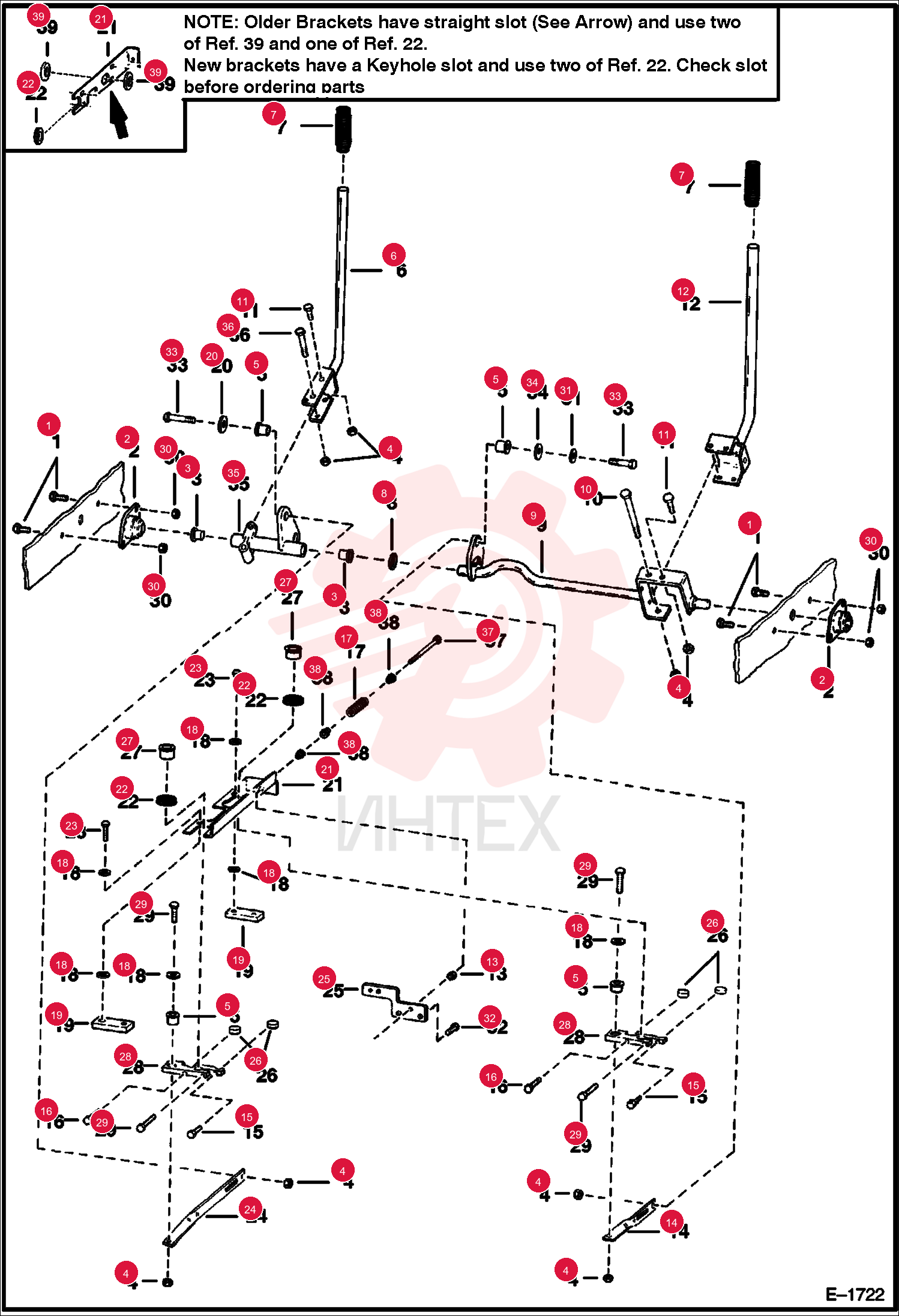

SCREW FLGD HEX CAP 35C612 (5)
1 35C612
- 35C612 - SCREW FLGD HEX CAP
2 6558736
- 6558736 - BUSHING PIVOT
3 6512027
- 6512027 - BUSHING
4 85D6
- 85D6 - NUT PRETRQ HEX LOCK
5 6665701
- 6665701 - BUSHING
- PRESS FIT
- Was 6630081
6 6569496
- 6569496 - LEVER
7 6513963
- 6513963 - GRIP HANDLE
8 25E29
- 25E29 - WSHR
9 6564727
- 6564727 - SHAFT
10 6553081
- 6553081 - BOLT AUX PIVOT
11 17C620
- 17C620 - BOLT
12 6558615
- 6558615 - ASSY
- LEVER
13 61D6
- 61D6 - NUT HEX FINISHED GR5
14 85D8
- 85D8 - NUT PRETRQ HEX LOCK
15 6565602
- 6565602 - LINK
16 17C614
- 17C614 - BOLT
17 17C624
- 17C624 - BOLT 5
18 6567970
- 6567970 - SPRING
19 6571904
- 6571904 - SPRING
20 6557831
- 6557831 - WASHER CONTROLS
21 6562281
- 6562281 - BAR
- STRG. LINKAGE
22 6571899
- 6571899 - BRACKET
- See Note
23 6562767
- 6562767 - BRACKET
24 6558436
- 6558436 - GUIDE
- See Note
25 8C616
- 8C616 - SCREW
26 6565601
- 6565601 - LINK
27 6567969
- 6567969 - MOUNT
28 6571909
- 6571909 - MOUNT
29 6562062
- 6562062 - CAM
- LEVER
- lever
30 6567973
- 6567973 - HUB-LEVER
31 6565751
- 6565751 - LEVER
- PINTLE
- pintle
32 17C628
- 17C628 - BOLT
33 83D6
- 83D6 - LKNUT HEX FLG GR8
34 6563914
- 6563914 - WASHER
35 17C712
- 17C712 - BOLT
36 17C626
- 17C626 - BOLT
37 6563965
- 6563965 - SPACER
38 6569507
- 6569507 - BELLCRANK
- NLA - Was 6599507
39 6569141
- 6569141 - BOLT
40 17C696
- 17C696 - BOLT
41 17C896
- 17C896 - BOLT
42 6579990
- 6579990 - BUSHING
- Was 6558429
43 6571900
- 6571900 - BUSHING 5
44 6558680
- 6558680 - SPACER
- See Note
