863.0
/

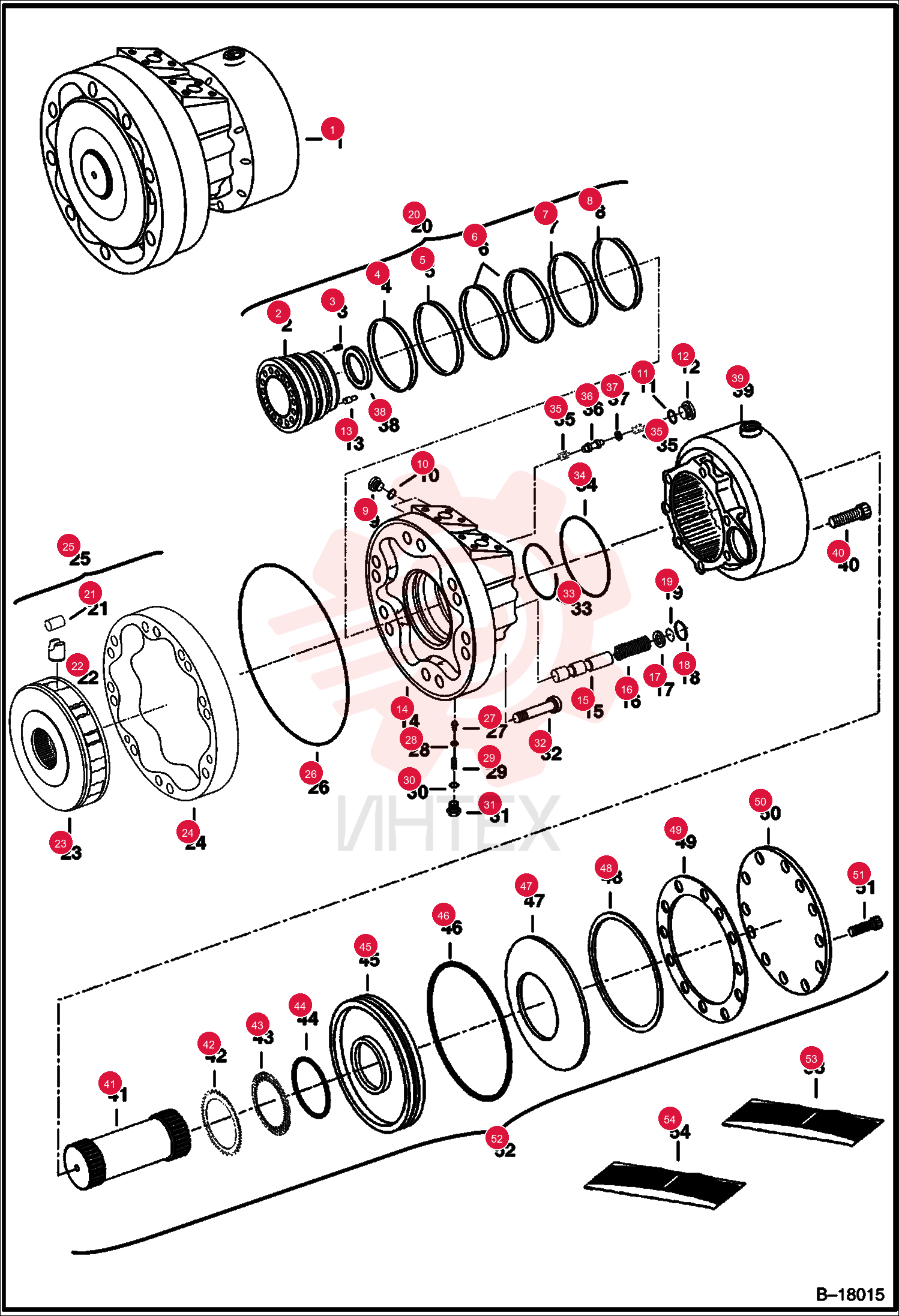

MOTOR, HYDROSTATIC 2 SP

MOTOR, HYDROSTATIC 2 SP

MOTOR, HYDROSTATIC 2 SP

1 6674738REM

  • 6674738REM - MOTOR
  • HYDROSTATIC 2 SP

2 6674037

  • 6674037 - SPRING

3 6675877

  • 6675877 - SEAL
  • W/ O-ring

4 6675878

  • 6675878 - SEAL
  • W/ O-ring

5 6675879

  • 6675879 - SEAL
  • W/ O-ring

6 6675880

  • 6675880 - SEAL
  • W/ O-ring

7 6675881

  • 6675881 - SEAL
  • W/ O-ring

8 90K3

  • 90K3 - PLUG
  • W/Ref. 10 - Was 90KV3

9 95K4

  • 95K4 - O-RING

10 95K6

  • 95K6 - O'RING

11 24K5

  • 24K5 - PLUG
  • W/Ref. 11 - Was 90KV5

12 6675189

  • 6675189 - STOP PIN

13 6675875

  • 6675875 - REARHOUSG
  • rear

14 6690074

  • 6690074 - SPOOL
  • Stamped "B" - Was 6675882

15 6675886

  • 6675886 - QUAD RING

16 6675885

  • 6675885 - SNAP RING

17 6676642

  • 6676642 - BLOCK
  • Order Ref. 25

18 6666360

  • 6666360 - CAM ROTOR
  • Was 6675874

19 6675864

  • 6675864 - QUAD RING

20 6675868

  • 6675868 - POPPET
  • 1
  • 5 mm orifice

21 6674343

  • 6674343 - SHIM
  • 0
  • 6 mm

22 6674344

  • 6674344 - SPRING

23 6675869

  • 6675869 - O-RING

24 6674345

  • 6674345 - PLUG

25 6687081

  • 6687081 - BOLT
  • holds rotary group - Was 6675021

26 6685265

  • 6685265 - SNAP RING
  • Was 6675865

27 6675863

  • 6675863 - QUAD RING

28 6674841

  • 6674841 - SPRING

29 6675866

  • 6675866 - SPOOL

30 6675867

  • 6675867 - WASHER

31 6675898

  • 6675898 - BUSHING

32 6675887

  • 6675887 - HOUSING

33 6675896

  • 6675896 - BOLT

34 6675888

  • 6675888 - SHAFT

35 6674192

  • 6674192 - BRAKE
  • DISC
  • outer

36 6674193

  • 6674193 - BRAKE
  • DISC
  • inner - Was 6690088

37 6675894

  • 6675894 - SEAL

38 6675889

  • 6675889 - PISTON
  • BRAKE
  • brake

39 6675893

  • 6675893 - O-RING

40 6675897

  • 6675897 - DISC
  • SPRING

41 6675892

  • 6675892 - GASKET

42 6675890

  • 6675890 - COVER
  • END

43 6675895

  • 6675895 - BOLT

44 6675862

  • 6675862 - BRAKE
  • Ref. 38-51

45 6675870

  • 6675870 - KIT
  • SEAL
  • Ref. 4-8
  • 18
  • 26
  • 31
  • 34
  • 44 & 46

46 6675883

  • 6675883 - KIT
  • WASHER
  • Was 6678204
