863.0
/

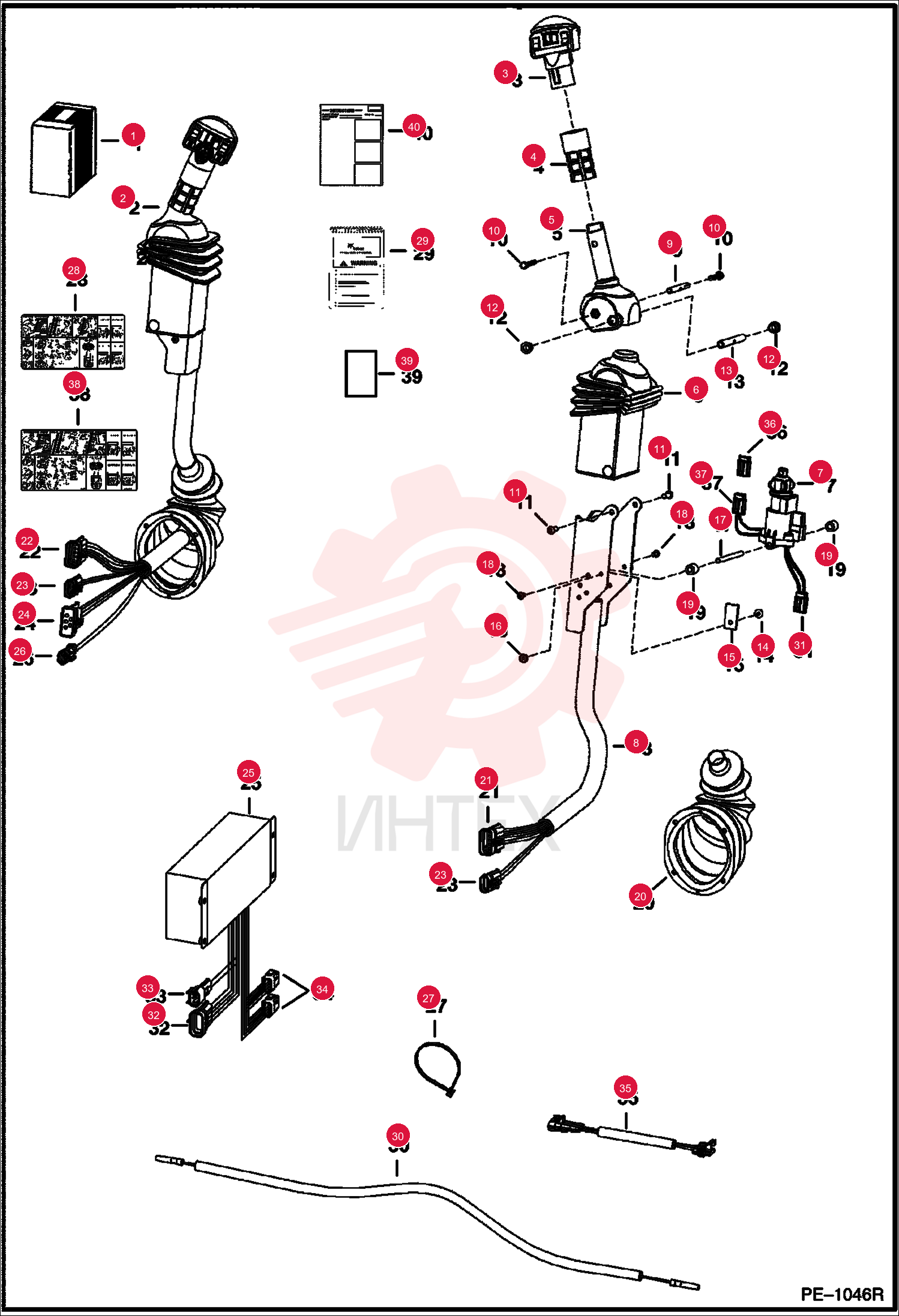

KIT, AHC 6727298

KIT, AHC 6727298

KIT, AHC 6727298

1 6727298

  • 6727298 - KIT
  • AHC
  • Also Order 6900842 O/M w/ Revised date of 6/00 or newer

2 6684913

  • 6684913 - LEVER
  • tilt - RH - Was 6680426

3 6684914

  • 6684914 - LEVER
  • lift - LH - Was 6680425

4 6680417

  • 6680417 - HANDLE
  • AHC
  • lift - LH - Was 6675749

5 6729595

  • 6729595 - HANDLE
  • LH - Was NLA

6 6729594

  • 6729594 - HANDLE
  • RH - Was NLA

7 6680471

  • 6680471 - BOOT
  • Was 6713898

8 6684910

  • 6684910 - SENSOR
  • ELEC AHC
  • Was 6680422

9 6670706

  • 6670706 - CONNECTOR
  • 3-pin

10 6670714

  • 6670714 - PIN TERMINAL

11 6670710

  • 6670710 - PLUG

12 6680481

  • 6680481 - CHANNEL
  • RH - Was 6719712

13 6680480

  • 6680480 - CHANNEL
  • LH - Was 6719711

14 6680469

  • 6680469 - SPACER
  • Was 6729600

15 6727065

  • 6727065 - SCREW

16 25GT410

  • 25GT410 - SCREW

17 6702990

  • 6702990 - BUSHING

18 6713043

  • 6713043 - SPACER
  • Was NLA

19 6665321

  • 6665321 - RIVET PLASTIC MALE
  • male

20 6665000

  • 6665000 - BRACKET MOUNTING

21 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • female

22 6719834

  • 6719834 - SPACER
  • threaded

23 6727065

  • 6727065 - SCREW

24 6719835

  • 6719835 - SLEEVE
  • Was NLA

25 6532127

  • 6532127 - BOOT AND PLATE ASSY

26 6640692

  • 6640692 - CONNECTOR
  • 10-pin

27 6640690

  • 6640690 - PIN

28 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

29 6641176

  • 6641176 - SEAL

30 6646582

  • 6646582 - PLUG
  • cavity

31 6640692

  • 6640692 - CONNECTOR
  • 10-pin

32 6640690

  • 6640690 - PIN

33 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

34 6641176

  • 6641176 - SEAL

35 6646582

  • 6646582 - PLUG
  • cavity

36 6640700

  • 6640700 - LOCK METRI PACK

37 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

38 6640690

  • 6640690 - PIN

39 6641176

  • 6641176 - SEAL

40 6646582

  • 6646582 - PLUG
  • cavity

41 6667145

  • 6667145 - LOCK
  • Use W/ 5-pin connector

42 6641176

  • 6641176 - SEAL

43 6640690

  • 6640690 - PIN

44 6667144

  • 6667144 - CONNECTOR
  • 5-pin

45 6676153

  • 6676153 - CONTROLLER
  • AHC METAL

46 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

47 6640690

  • 6640690 - PIN

48 6641176

  • 6641176 - SEAL

49 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

50 6610510

  • 6610510 - STRAP
  • TIE 10

51 6727155

  • 6727155 - DECAL

52 6718719

  • 6718719 - OHB
  • W/WIRE ROPE

53 6727328

  • 6727328 - HARNESS

54 6670707

  • 6670707 - CONNECTOR
  • 3-pin

55 6670715

  • 6670715 - SOCKET

56 6670711

  • 6670711 - LOCK

57 6640692

  • 6640692 - CONNECTOR
  • 10-pin

58 6640690

  • 6640690 - PIN

59 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

60 6641176

  • 6641176 - SEAL

61 6646582

  • 6646582 - PLUG
  • cavity

62 6648307

  • 6648307 - CONNECTOR
  • 2-pin

63 6670709

  • 6670709 - CONNECTOR
  • 8-pin

64 6728742

  • 6728742 - HARN.JUMPER
  • W/ capacitor

65 6677364

  • 6677364 - CONNECTOR
  • 3-Pin

66 6676640

  • 6676640 - PLUG
  • SEAL

67 6676870

  • 6676870 - CONNECTOR
  • 3-Pin

68 6676640

  • 6676640 - PLUG
  • SEAL

69 6670715

  • 6670715 - SOCKET

70 6670711

  • 6670711 - LOCK

71 6727243

  • 6727243 - DECAL

72 6718719

  • 6718719 - OHB
  • W/WIRE ROPE
  • Was 6902600

73 6901100

  • 6901100 - INSTRUCTIONS
