Главная
/
Бренды
/
Bobcat
/
863.0
/

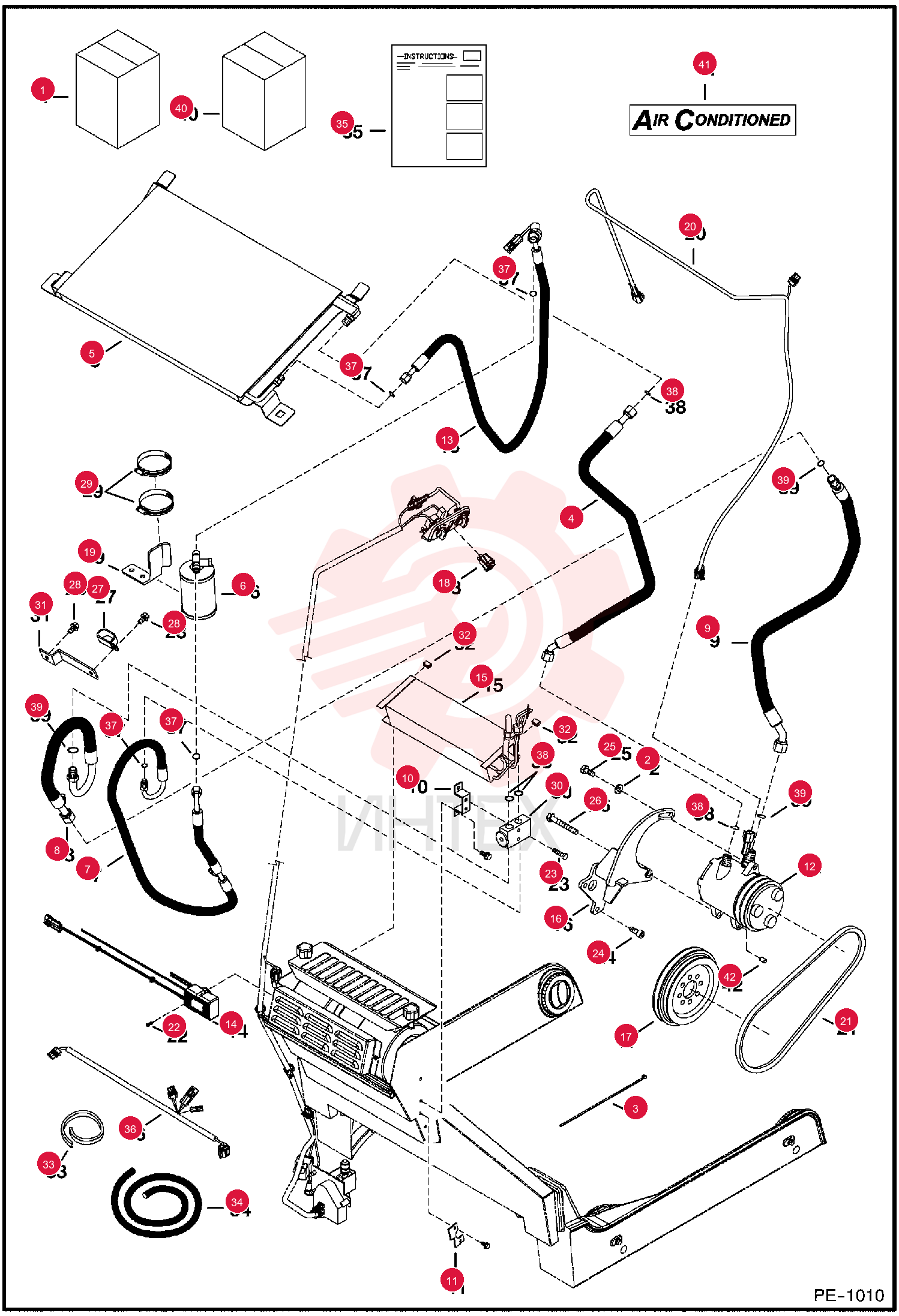

KIT, A/C 6726490

KIT, A/C 6726490

KIT, A/C 6726490

1 6726490

  • 6726490 - KIT
  • A/C
  • Ref. 2 - 35

2 6557831

  • 6557831 - WASHER CONTROLS

3 6624289

  • 6624289 - STRAP
  • TIE

4 6674232

  • 6674232 - HOSE ASSY A/C
  • A/C - W/Ref. 37

5 6674234

  • 6674234 - CONDENSER
  • A/C

6 6674235

  • 6674235 - RECEIVER
  • DRIER A/C
  • reciever

7 6676062

  • 6676062 - VALVE
  • RELIEF PRESS
  • relief

8 6698442

  • 6698442 - HOSE
  • W/Ref. 37 - Was 6675075

9 6677122

  • 6677122 - CAP
  • plastic

10 6677121

  • 6677121 - CAP
  • plastic

11 6675076

  • 6675076 - HOSE
  • A/C ASSY
  • A/C - W/Ref. 39

12 6675270

  • 6675270 - HOSE ASSY A/C
  • A/C - W/Ref. 39

13 6676984

  • 6676984 - BRACKET
  • TANK
  • valve - Was 6675536

14 6677105

  • 6677105 - COVER
  • plate - Was 6675537

15 6733655

  • 6733655 - COMPRESSOR
  • A/C
  • W/Ref. 42

16 6679145

  • 6679145 - CLUTCH
  • Was 6675828

17 6675685

  • 6675685 - HOSE A/C
  • AC - W/Ref. 37

18 6676399

  • 6676399 - VALVE CORE

19 6675779

  • 6675779 - SWITCH
  • PRESS
  • pressure - W/ harness

20 6683004

  • 6683004 - THERMOSTAT
  • Was 6675790

21 6683003

  • 6683003 - COIL
  • EVAPORATOR
  • evaporator - Was 6675533

22 6717375

  • 6717375 - COMPRESSOR BKT
  • compressor

23 6718310

  • 6718310 - PULLEY ENGINE
  • engine

24 7169112

  • 7169112 - SWITCH
  • ROCKER A/C
  • Was 6719176

25 6719459

  • 6719459 - MOUNT DRYER
  • receiver drier

26 6719630

  • 6719630 - HARNESS A/C
  • A/C

27 6725943

  • 6725943 - BELT
  • compressor

28 6726621

  • 6726621 - SCREW

29 1CM635

  • 1CM635 - BOLT

30 3GM1025

  • 3GM1025 - BOLT

31 5CM1025

  • 5CM1025 - SCREW FL THD HEX CAP

32 5CM1080

  • 5CM1080 - SCREW

33 31H46

  • 31H46 - CLAMP
  • Was 31H000042B

34 84G3710

  • 84G3710 - SCREW

35 44H48

  • 44H48 - CLAMP
  • Was 6515576

36 6675534

  • 6675534 - BLOCK
  • VALVE A/C

37 6727326

  • 6727326 - MOUNT
  • clamp

38 6676539

  • 6676539 - CLIP PANEL

39 6676538

  • 6676538 - INSULATION TAPE FT
  • bulk - sold per foot

40 6901039ENUS

  • 6901039ENUS - INSTRUCTIONS
  • Was 6901039

41 6726357

  • 6726357 - HVAC ADPTR HARN
  • HVAC jumper - connects the HVAC harness (6725275 or 6717877 ) to the AC harness (6719630 ) and the new thermostat (6675790 )

42 7009976

  • 7009976 - O-RING
  • #6 - Was 6675824

43 7009977

  • 7009977 - O-RING
  • #8 - Was 6675538

44 7009978

  • 7009978 - O-RING
  • #10 - Was 6675825

45 6729077

  • 6729077 - DECAL
  • Air Conditioned

46 6732732

  • 6732732 - BUSHING
  • Use W/Ref. 12
