Bobcat
/
863.0
/

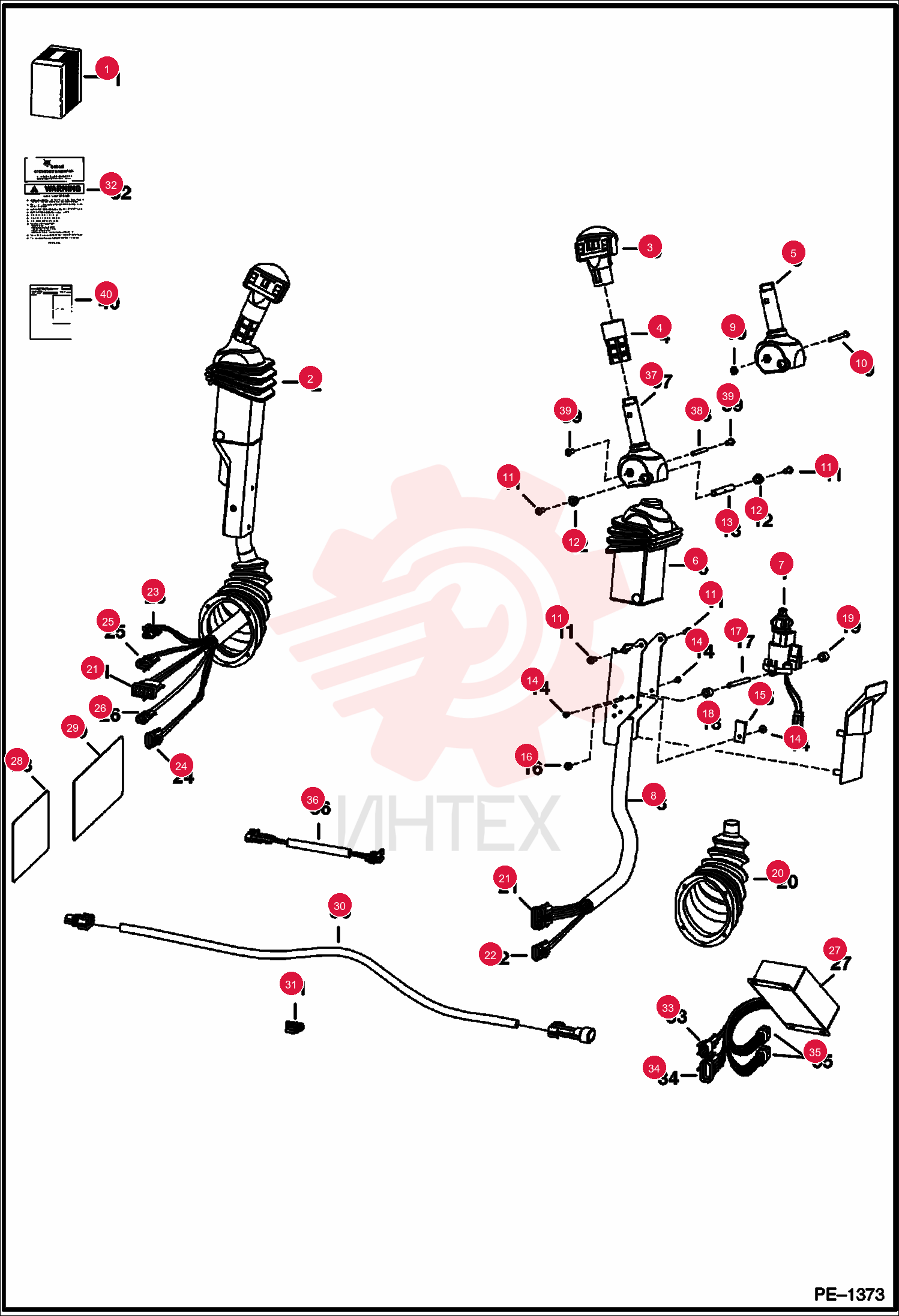

KIT, AHC 6727297

KIT, AHC 6727297

KIT, AHC 6727297

1 6727297

  • 6727297 - KIT
  • AHC
  • Also order 6900937 O/M with revised date of 6/00 or newer

2 6684919

  • 6684919 - LEVER
  • tilt - R.H. - Was 6680466

3 6684918

  • 6684918 - LEVER
  • lift - L.H. - Was 6680465

4 6680459

  • 6680459 - HNDL/TILT AHC
  • lift - R.H. - Was 6675515

5 6680471

  • 6680471 - BOOT
  • Was 6713898

6 6670706

  • 6670706 - CONNECTOR

7 6670715

  • 6670715 - SOCKET

8 6670710

  • 6670710 - PLUG

9 6684910

  • 6684910 - SENSOR
  • ELEC AHC
  • Was 6680422

10 6680481

  • 6680481 - CHANNEL
  • RH - Was 6719712

11 6680480

  • 6680480 - CHANNEL
  • LH - Was 6719711

12 6716826

  • 6716826 - BOLT
  • Use W/Ref. 5

13 12D10

  • 12D10 - NUT

14 25GT410

  • 25GT410 - SCREW

15 6702990

  • 6702990 - BUSHING

16 6713043

  • 6713043 - SPACER

17 6665321

  • 6665321 - RIVET PLASTIC MALE
  • male

18 6665000

  • 6665000 - BRACKET MOUNTING

19 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • female

20 6719834

  • 6719834 - SPACER
  • threaded

21 6727065

  • 6727065 - SCREW

22 6719835

  • 6719835 - SLEEVE

23 6532127

  • 6532127 - BOOT AND PLATE ASSY

24 6640696

  • 6640696 - CONNECTOR
  • 8-pin

25 6661183

  • 6661183 - LOCK

26 6641181

  • 6641181 - LOCK
  • 6-pin

27 6641173

  • 6641173 - CONNECTOR
  • 6-pin

28 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

29 6661180

  • 6661180 - BOLT

30 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

31 6640700

  • 6640700 - LOCK METRI PACK

32 6641178

  • 6641178 - CONNECTOR METRI PACK
  • 2-pin

33 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

34 6630838

  • 6630838 - CONNECTOR
  • 1-pin

35 6676442

  • 6676442 - CONTROLLER
  • AHC FLOAT

36 6727155

  • 6727155 - DECAL

37 6727243

  • 6727243 - DECAL

38 6727327

  • 6727327 - HARNESS

39 6670707

  • 6670707 - CONNECTOR
  • 3-pin

40 6670715

  • 6670715 - SOCKET

41 6670711

  • 6670711 - LOCK

42 6708159

  • 6708159 - OHB
  • W/WIRE ROPE

43 6640692

  • 6640692 - CONNECTOR
  • 10-pin

44 6640690

  • 6640690 - PIN

45 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

46 6646582

  • 6646582 - PLUG
  • cavity

47 6641176

  • 6641176 - SEAL

48 6648307

  • 6648307 - CONNECTOR
  • 2-pin

49 6670709

  • 6670709 - CONNECTOR
  • 8-pin

50 6730272

  • 6730272 - HARNESS
  • W/ capacitor

51 6729594

  • 6729594 - HANDLE
  • RH

52 6729595

  • 6729595 - HANDLE
  • LH

53 6680469

  • 6680469 - SPACER
  • threaded on both ends - Use W/Ref. 37 - Was 6729600

54 6727065

  • 6727065 - SCREW
  • button head - 10-24UNC

55 6901099

  • 6901099 - INSTRUCTIONS
