Bobcat
/
863.0
/

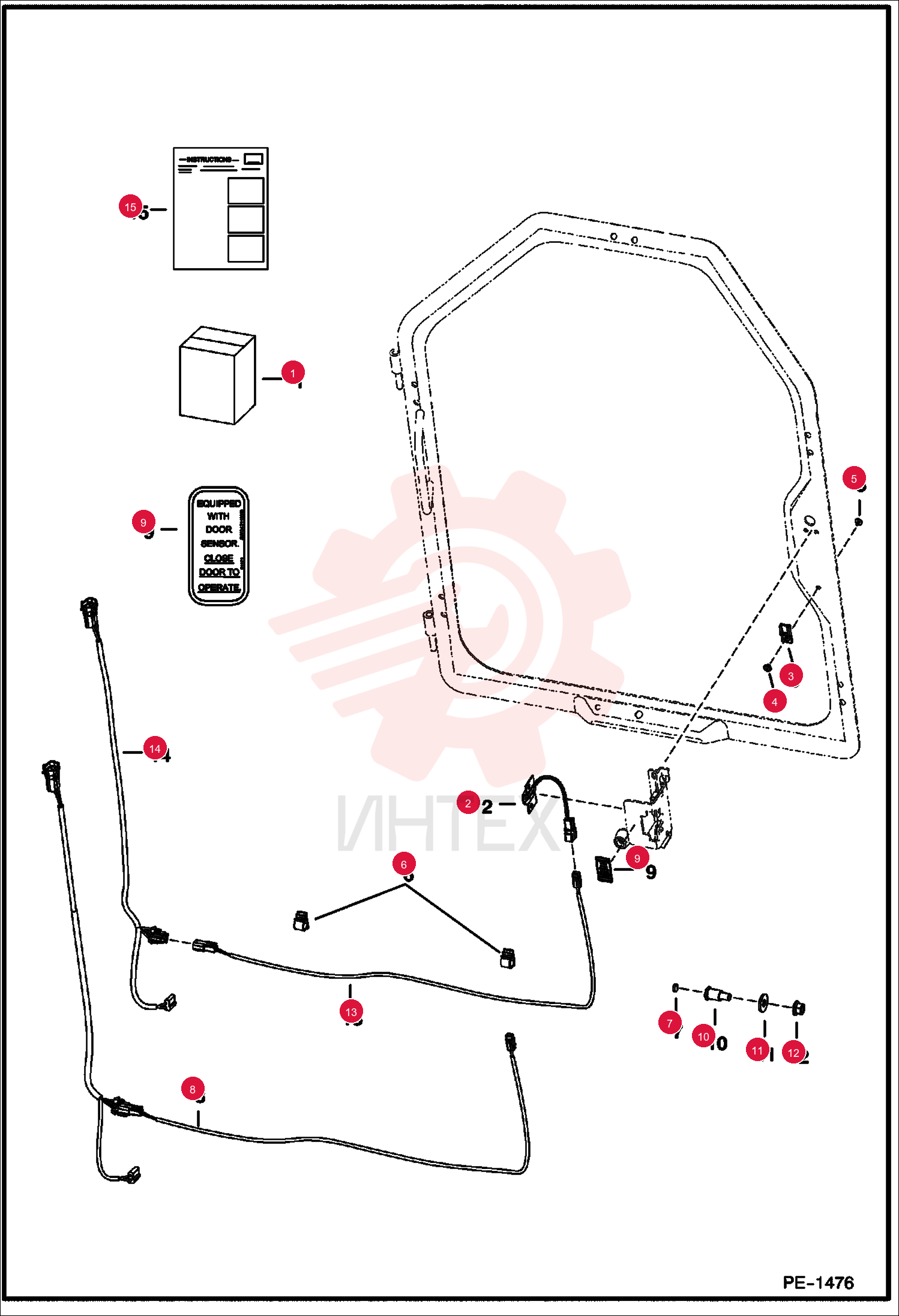

KIT, SENSOR DOOR 6732451

KIT, SENSOR DOOR 6732451

KIT, SENSOR DOOR 6732451

1 6732451

  • 6732451 - KIT
  • SENSOR DOOR
  • door switch - Ref. 2-7 & 9-15

2 6731212

  • 6731212 - SENSOR
  • DOOR
  • door assy.

3 6677193

  • 6677193 - RIVET
  • plastic

4 6665000

  • 6665000 - BRACKET MOUNTING
  • mounting

5 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • plastic - female

6 6665321

  • 6665321 - RIVET PLASTIC MALE
  • plastic - male

7 6675378

  • 6675378 - CLIP
  • wire - W/adhesive back

8 6677192

  • 6677192 - SENSOR
  • MAGNETIC
  • door switch

9 7109664

  • 7109664 - BOLT
  • striker - 12 mm thread - Was 6677194

10 18EM1224

  • 18EM1224 - WASHER HARDENED PLN
  • Use W/Ref. 10 (7109664 bolt)

11 91D7

  • 91D7 - NUT
  • 7/16" thread - Use W/Ref. 10 (NLA 6677194 bolt)

12 51DM12

  • 51DM12 - NUT
  • 12 mm thread - Use W/Ref. 10 (7109664 bolt)

13 7104465

  • 7104465 - DOOR SWITCH HARNESS
  • door sensor

14 7106277

  • 7106277 - WIPER HARNESS
  • wiper

15 6901734

  • 6901734 - INSTRUCTIONS
