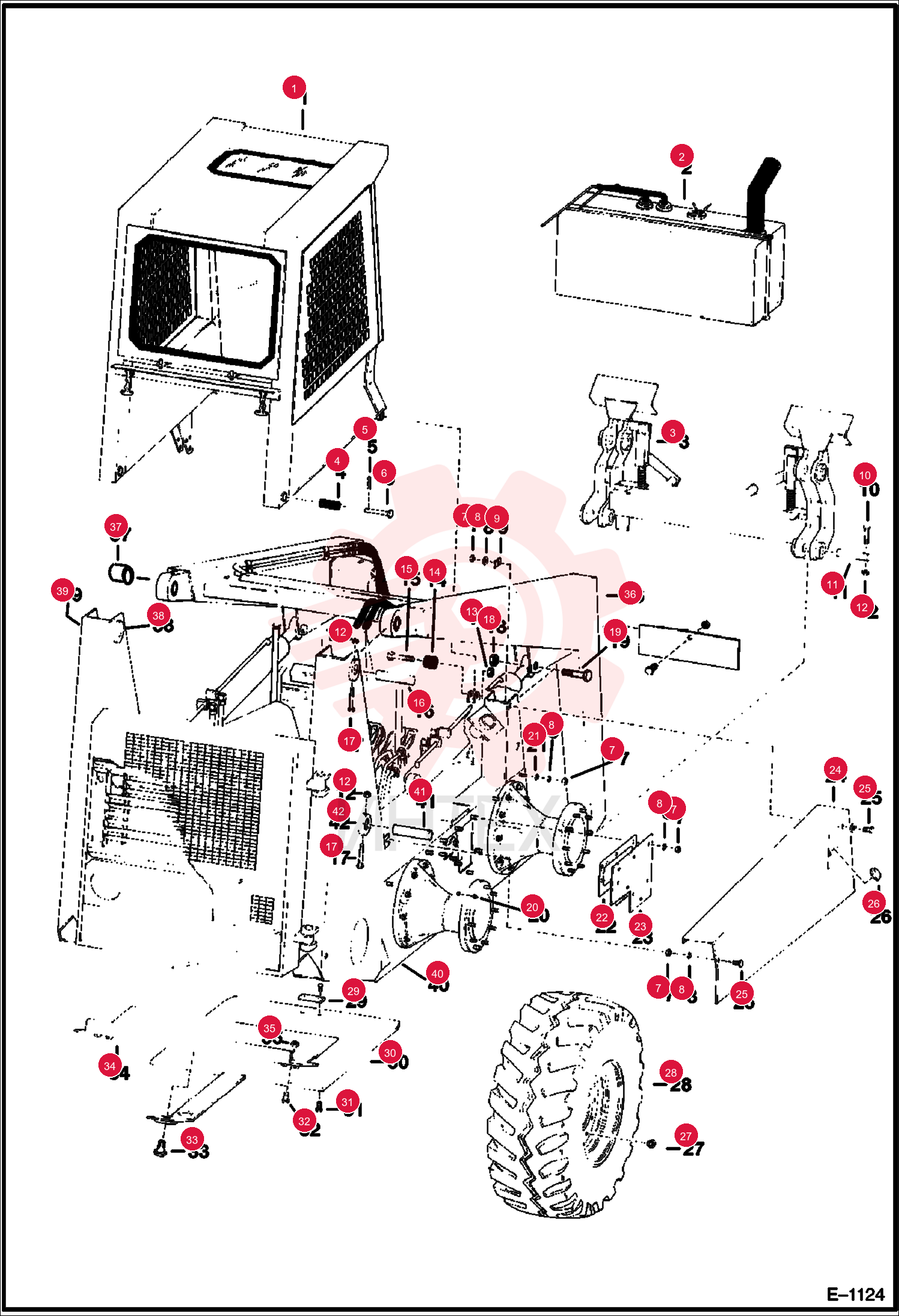

MOUNT 6544301
1 6544301
- 6544301 - MOUNT
- shock
2 1318566
- 1318566 - PIN
- retainer
3 6502781
- 6502781 - PIN
4 61D6
- 61D6 - NUT HEX FINISHED GR5
5 4E6
- 4E6 - WASHER
6 6547288
- 6547288 - SPACER
7 17C648
- 17C648 - SCREW HEX CAP
8 6546749
- 6546749 - PIN
9 85D6
- 85D6 - NUT PRETRQ HEX LOCK
10 61D16
- 61D16 - LCKNUT
11 6538639
- 6538639 - BUSHING
- metal
12 15C1672
- 15C1672 - BOLT
13 6547662
- 6547662 - PIN
14 17C672
- 17C672 - BOLT
15 6504394
- 6504394 - BOLT
16 40K2
- 40K2 - PLUG HEX
- pipe
17 6502073
- 6502073 - CLIP
18 6543923
- 6543923 - GASKET
19 6591405
- 6591405 - GASKET
20 6590285
- 6590285 - PLATE
- COVER
- chaincase
21 6591404
- 6591404 - COVER
- chaincase
22 6548812
- 6548812 - FENDER
- R.H.
23 6551459
- 6551459 - FENDER
- L.H.
24 31C620
- 31C620 - BOLT
25 6515566
- 6515566 - CAP
- GAS
- fuel
26 103522
- 103522 - NUT
- wheel
27 6547191
- 6547191 - BAR
- retainer
28 6551558
- 6551558 - PAN ASSY
29 17C820
- 17C820 - BOLT 5
30 17C1232
- 17C1232 - BOLT
31 17C1632
- 17C1632 - BOLT
32 6551557
- 6551557 - PLATE ASSEMBLY
33 59D12
- 59D12 - NUT
34 6546879
- 6546879 - BUSHING
35 6547668
- 6547668 - COLLAR
36 6547667
- 6547667 - COLLAR
37 6561774
- 6561774 - PIN
38 6504394
- 6504394 - BOLT
39 6590185
- 6590185 - CUP
- pin
40 6537235
- 6537235 - BUSHING
- W/Bolt Hole - Was 6561763
41 6537236
- 6537236 - BUSHING
- W/O Bolt Hole - Was 6561764
