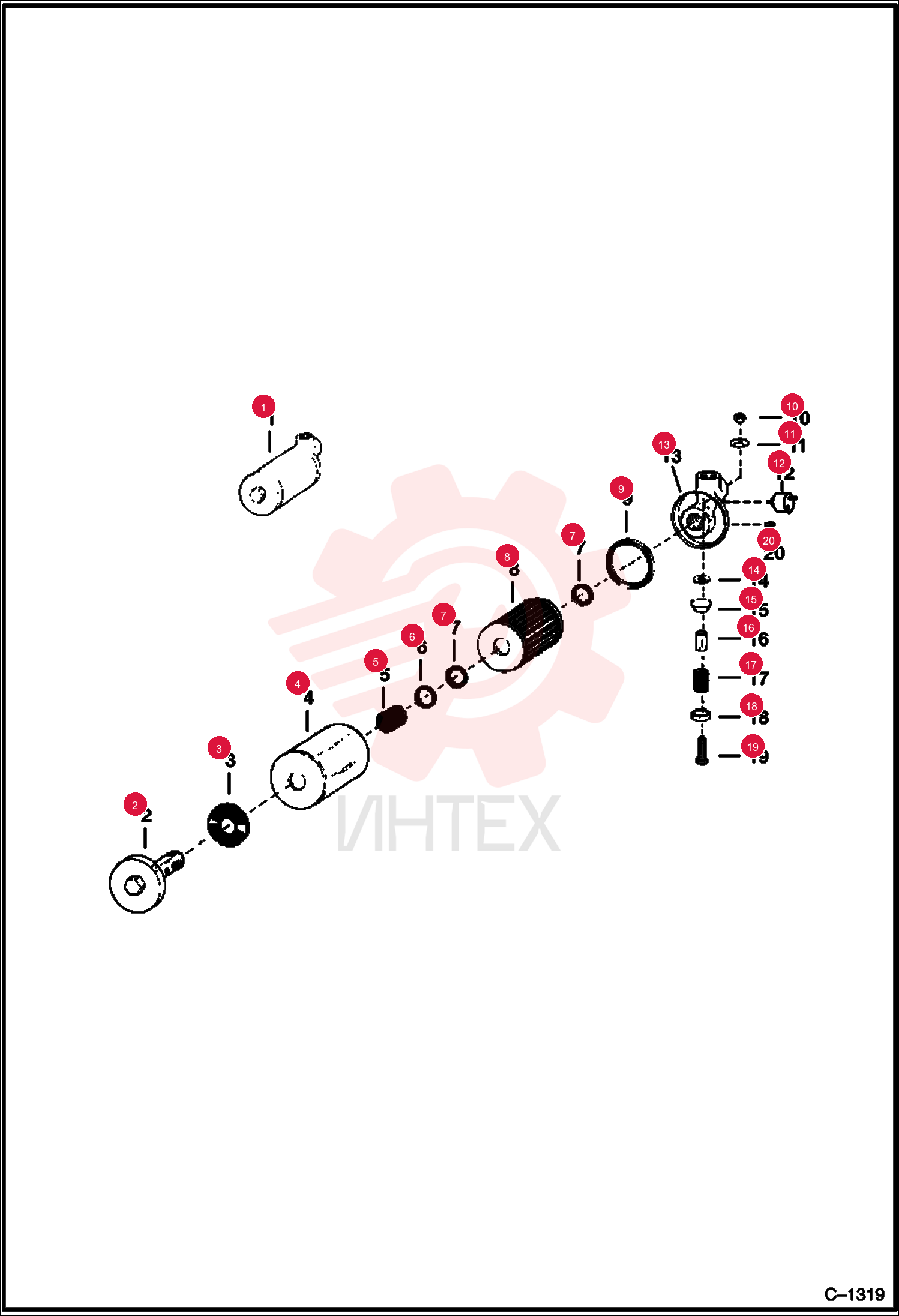

POST 896153

POST 896153

POST 896153

1 896153

  • 896153 - POST

2 1567066

  • 1567066 - SEAL

3 1567065

  • 1567065 - HOUSING

4 896152

  • 896152 - SPRING

5 1566619

  • 1566619 - WASHER
  • back-up - Was 1566620B

6 1566620

  • 1566620 - GASKET
  • rubber - Was NLA

7 6511197

  • 6511197 - FILKIT-1
  • paper - 10 Micron - W/Ref. 7

8 6512532

  • 6512532 - SEAL
  • rubber

9 896149

  • 896149 - NUT

10 6503797

  • 6503797 - PLATE

11 6631695

  • 6631695 - SWITCH
  • hydrostatic oil pressure - Was 6519715

12 6510320

  • 6510320 - TUBE

13 6510010

  • 6510010 - SPRING

14 41G828

  • 41G828 - SCREW

15 40K2

  • 40K2 - PLUG HEX
