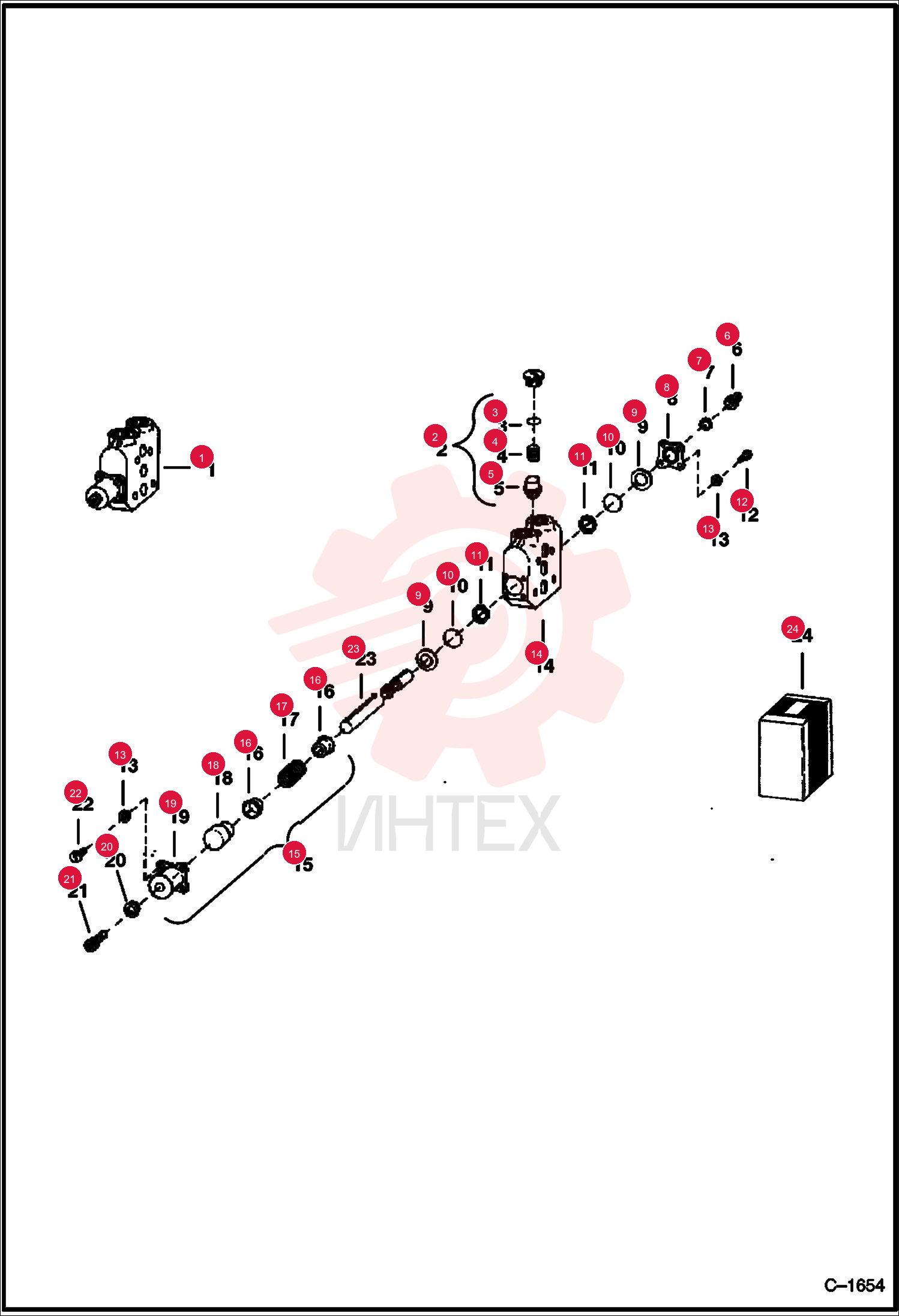

VALVE, SECTION 6510640

VALVE, SECTION 6510640

VALVE, SECTION 6510640

1 6510640

  • 6510640 - VALVE
  • SECTION
  • Ref. 2-23

2 6510782

  • 6510782 - KIT
  • check - W/Ref. 3-5

3 79K14

  • 79K14 - O RING 10

4 6515082

  • 6515082 - SPRING

5 6518337

  • 6518337 - SPOOL END
  • clevis

6 6510751

  • 6510751 - PLATE
  • RETAINER
  • seal

7 945225

  • 945225 - SEAL
  • quad ring

8 5C410

  • 5C410 - BOLT
  • W/Lock Washer

9 6510783

  • 6510783 - KIT
  • detent - W/Ref. 16-19

10 4E7

  • 4E7 - WASHER

11 6647692

  • 6647692 - SCREW
  • W/Lock Washer - Was 5C000416B

12 6660105

  • 6660105 - SEAL KIT
  • COMPLETE FOR 1 SECTION
