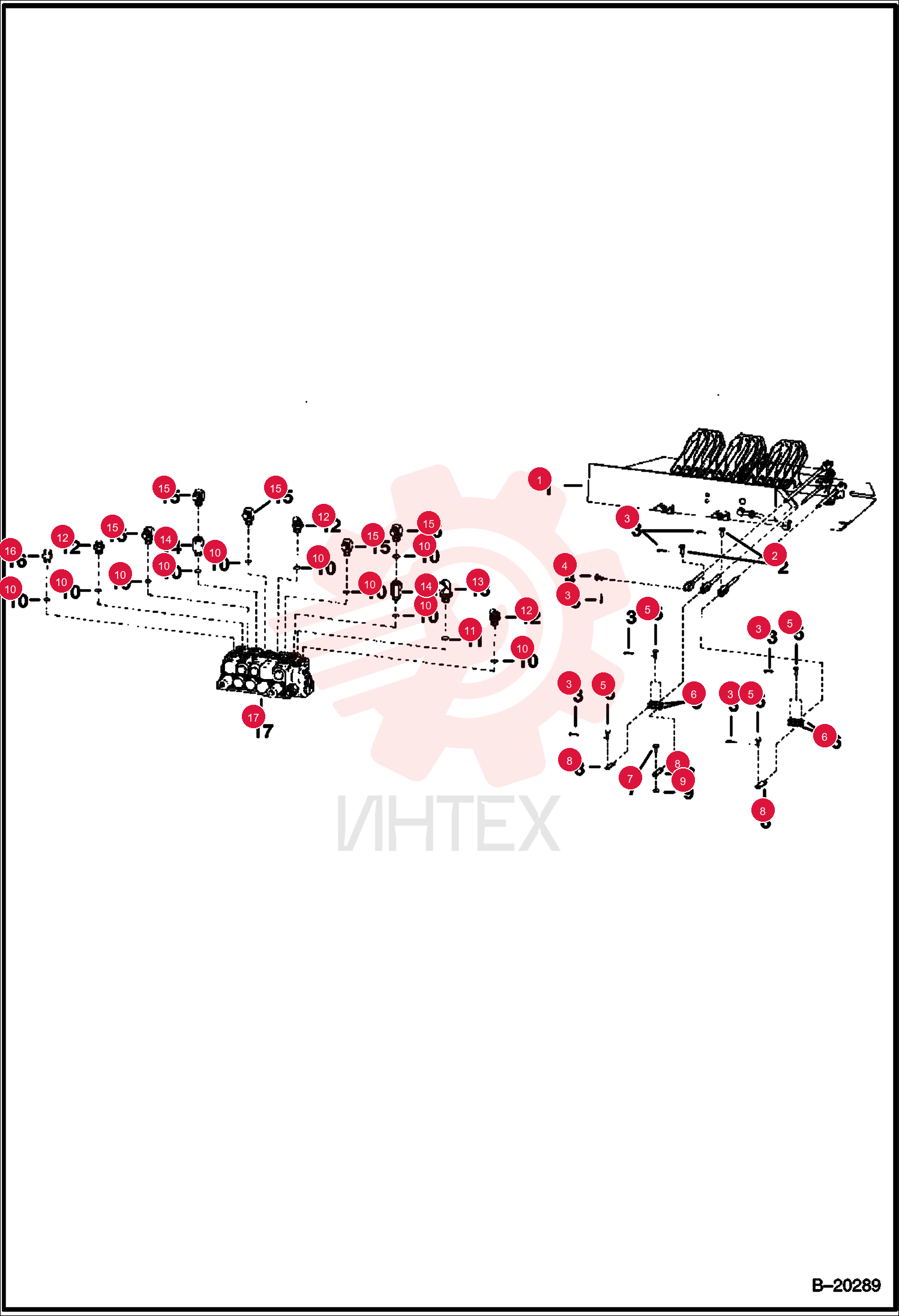

PIN 1F416

PIN 1F416

PIN 1F416

1 1F416

  • 1F416 - PIN

2 663350

  • 663350 - PIN

3 6505103

  • 6505103 - PIN

4 6503750

  • 6503750 - LINK

5 1304227

  • 1304227 - PIN

6 6503751

  • 6503751 - LINK

7 79K12

  • 79K12 - O RING 10

8 79K16

  • 79K16 - O RING 10

9 18K8

  • 18K8 - FTG
  • W/Ref. 10

10 1521254

  • 1521254 - ELBOW
  • W/Ref. 11

11 6515538

  • 6515538 - VALVE
  • throttle - W/Ref. 10

12 17K8

  • 17K8 - FITTING
  • W/Ref. 10

13 15K8

  • 15K8 - FITTING
  • W/Ref. 10
