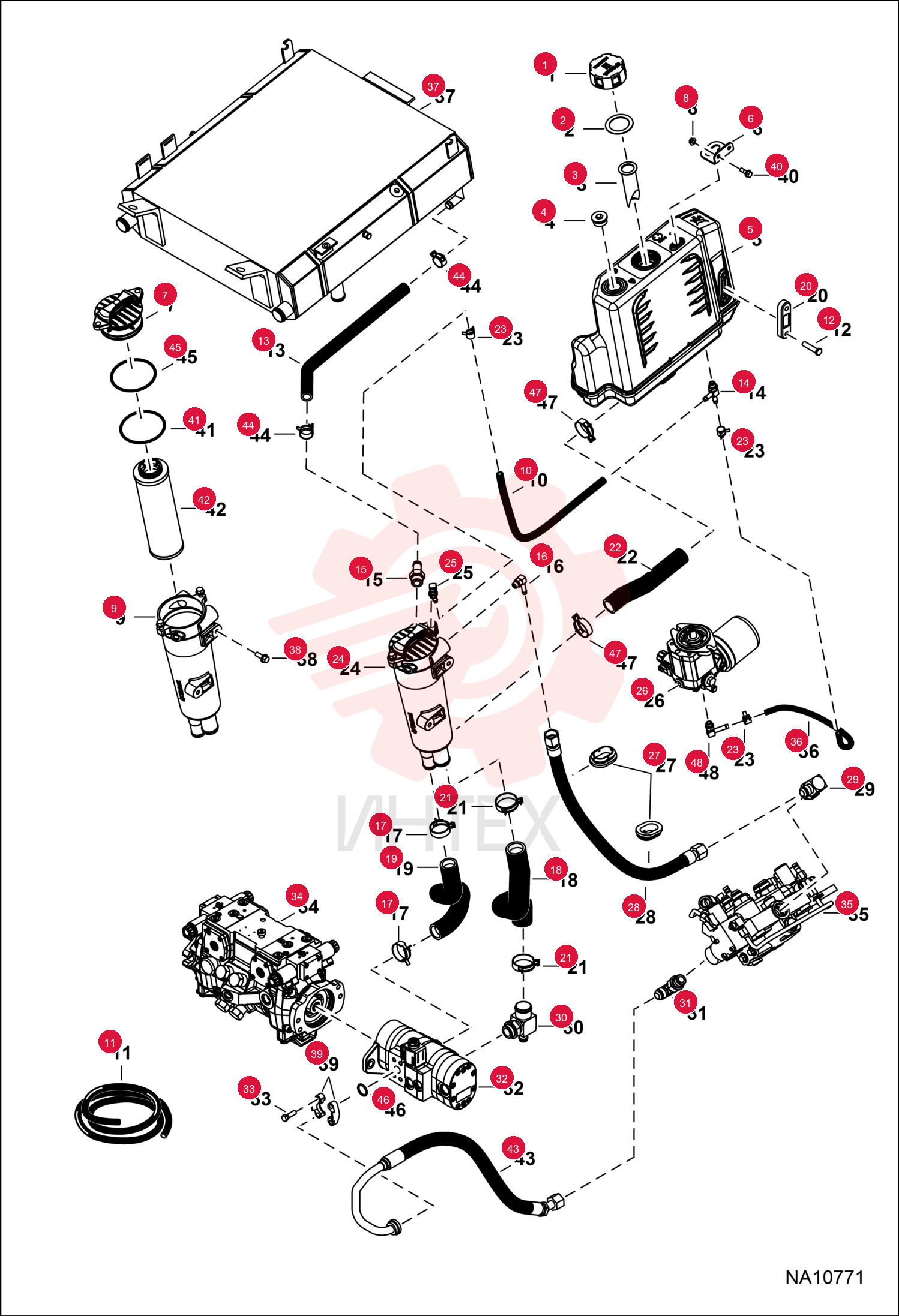

CAP HYDRAULIC 6727475

CAP HYDRAULIC 6727475

CAP HYDRAULIC 6727475

1 6727475

  • 6727475 - CAP HYDRAULIC

2 6700631

  • 6700631 - GASKET CAP TANK HYDR

3 7003487

  • 7003487 - SCREEN

4 47K10

  • 47K10 - PLUG

5 78K10

  • 78K10 - O RING

6 7248868

  • 7248868 - TANK
  • HYD ASSY

7 7260909

  • 7260909 - BRACKET

8 7248873

  • 7248873 - CAP
  • W/Ref. 41 & 46

9 57D5

  • 57D5 - NUT HEX FLNG GR8

10 6586251

  • 6586251 - HOSE
  • BULK
  • sold per foot

11 7248942

  • 7248942 - HOSE
  • HYD FORMED

12 7246193

  • 7246193 - FITTING
  • HYD TEE

13 79K4

  • 79K4 - O RING 10

14 6812865

  • 6812865 - FITTING

15 79K12

  • 79K12 - O RING 10

16 17KB1212

  • 17KB1212 - FITTING
  • HYD ELBOW

17 79K12

  • 79K12 - O RING 10

18 5HM42

  • 5HM42 - HOSE CLAMP

19 7245954

  • 7245954 - HOSE
  • HYD FORMED

20 7243733

  • 7243733 - HOSE
  • HYD FORMED

21 7001421

  • 7001421 - GUAGE
  • SIGHT
  • W/Ref. 12

22 5HM47

  • 5HM47 - CLAMP

23 7189371

  • 7189371 - HOSE
  • HYD FORMED

24 5HM16

  • 5HM16 - CLAMP

25 7248871

  • 7248871 - FILTER
  • OIL HYD ASSY
  • Ref. 7
  • 9
  • 41
  • 43 & 46

26 79K6

  • 79K6 - O RING 10

27 7230514

  • 7230514 - FITTING

28 7002740

  • 7002740 - GROMMET

29 7171394

  • 7171394 - HOSE

30 7101371

  • 7101371 - ELBOW

31 58K022

  • 58K022 - O-RING 10

32 79K16

  • 79K16 - O RING 10

33 7158921

  • 7158921 - FITTING

34 79K16

  • 79K16 - O RING 10

35 7101797

  • 7101797 - ELBOW

36 79K12

  • 79K12 - O RING 10

37 17C620

  • 17C620 - BOLT

38 35C616

  • 35C616 - SCREW FLGD HEX CAP

39 19J12

  • 19J12 - CLAMP

40 35C512

  • 35C512 - SCREW FLGD HEX CAP

41 7248874

  • 7248874 - FILTER
  • OIL HYD
  • Also Order Ref. 41

42 7197534

  • 7197534 - HOSE
  • HYD

43 5HM27

  • 5HM27 - CLAMP

44 55K214

  • 55K214 - O-RING

45 5HM42

  • 5HM42 - HOSE CLAMP

46 6727313

  • 6727313 - FITTING
  • ELBOW
