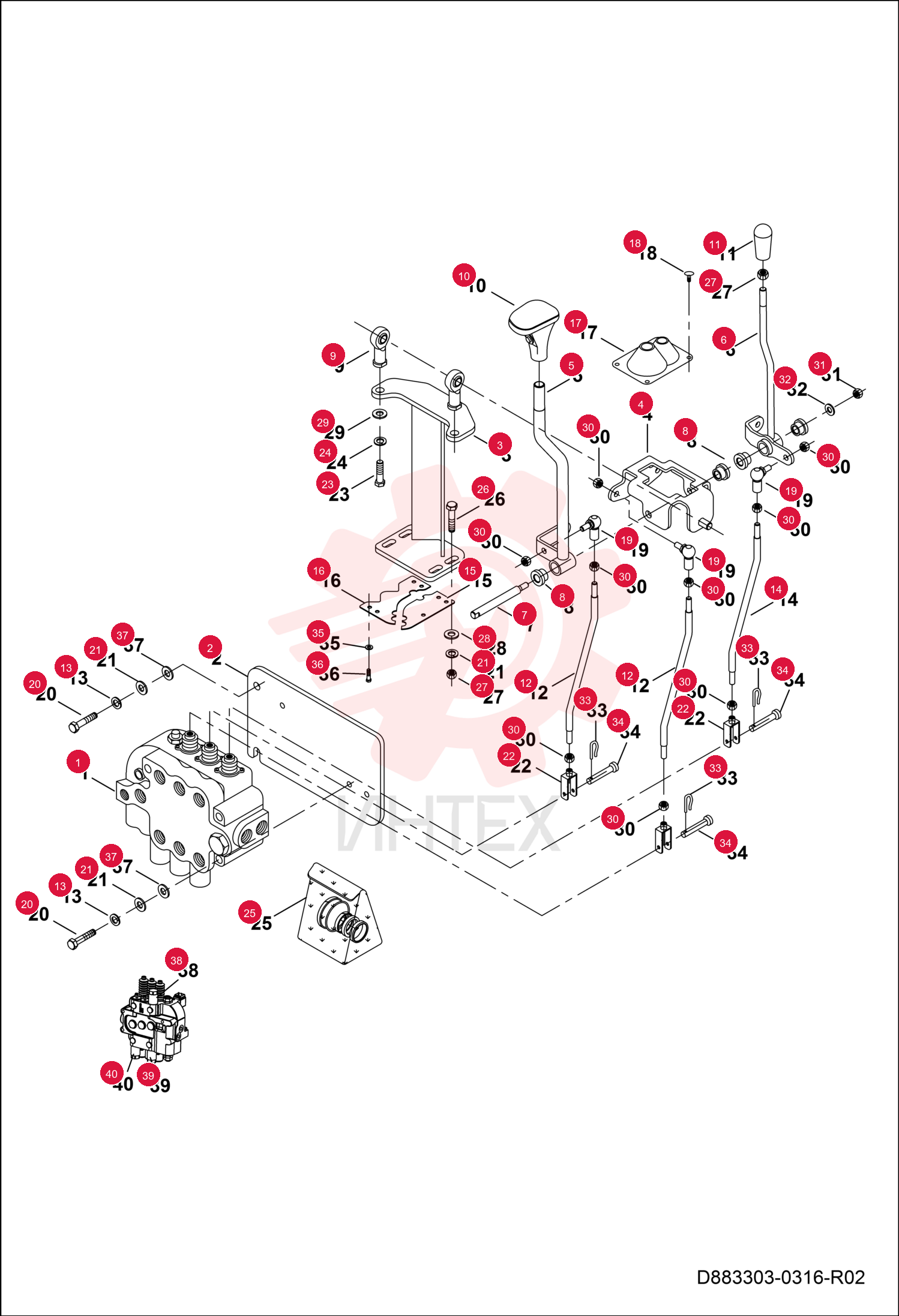

LOADER CONTROL VALVE 7289616 (1)

LOADER CONTROL VALVE 7289616 (1)

LOADER CONTROL VALVE 7289616 (1)

1 7289616

  • 7289616 - LOADER CONTROL VALVE

2 7291641

  • 7291641 - BRACKET SHEET

3 7291642

  • 7291642 - BODY

4 7289619

  • 7289619 - MECHANISM

5 7291643

  • 7291643 - LEVER CONTROL

6 7291646

  • 7291646 - LEVER CONTROL

7 7289622

  • 7289622 - PIN LOCK

8 7289623

  • 7289623 - SEAL BUSHING

9 7289624

  • 7289624 - JOINT UNIVERSAL

10 7289519

  • 7289519 - KNOB LEVER

11 7289625

  • 7289625 - KNOB LEVER

12 7291645

  • 7291645 - LEVER CONTROL

13 7289278

  • 7289278 - WASHER FLAT

14 7291646

  • 7291646 - LEVER CONTROL

15 7291647

  • 7291647 - PLATE

16 7291648

  • 7291648 - PLATE

17 7304247

  • 7304247 - COVER RUBBER

18 7289632

  • 7289632 - DUBEL

19 7289648

  • 7289648 - JOINT BALL

20 7290711

  • 7290711 - BOLT

21 7289259

  • 7289259 - WASHER LOCK

22 7290254

  • 7290254 - JOINT FITTING

23 7289638

  • 7289638 - BOLT HEX

24 7289635

  • 7289635 - WASHER LOCK

25 7302510

  • 7302510 - KIT
  • SEAL

26 7289642

  • 7289642 - BOLT HEX

27 7289637

  • 7289637 - NUT HEX

28 7289260

  • 7289260 - WASHER FLAT

29 7289314

  • 7289314 - WASHER FLAT

30 7289263

  • 7289263 - NUT HEX

31 7289641

  • 7289641 - NUT HEX

32 7289639

  • 7289639 - WASHER FLAT

33 7292110

  • 7292110 - PIN COTTER

34 7291650

  • 7291650 - PIN

35 7289610

  • 7289610 - WASHER FLAT

36 7289609

  • 7289609 - BOLT HEX

37 7291651

  • 7291651 - ADJUST SHIM

38 7304041

  • 7304041 - VALVE

39 7304042

  • 7304042 - VALVE

40 7304040

  • 7304040 - VALVE
