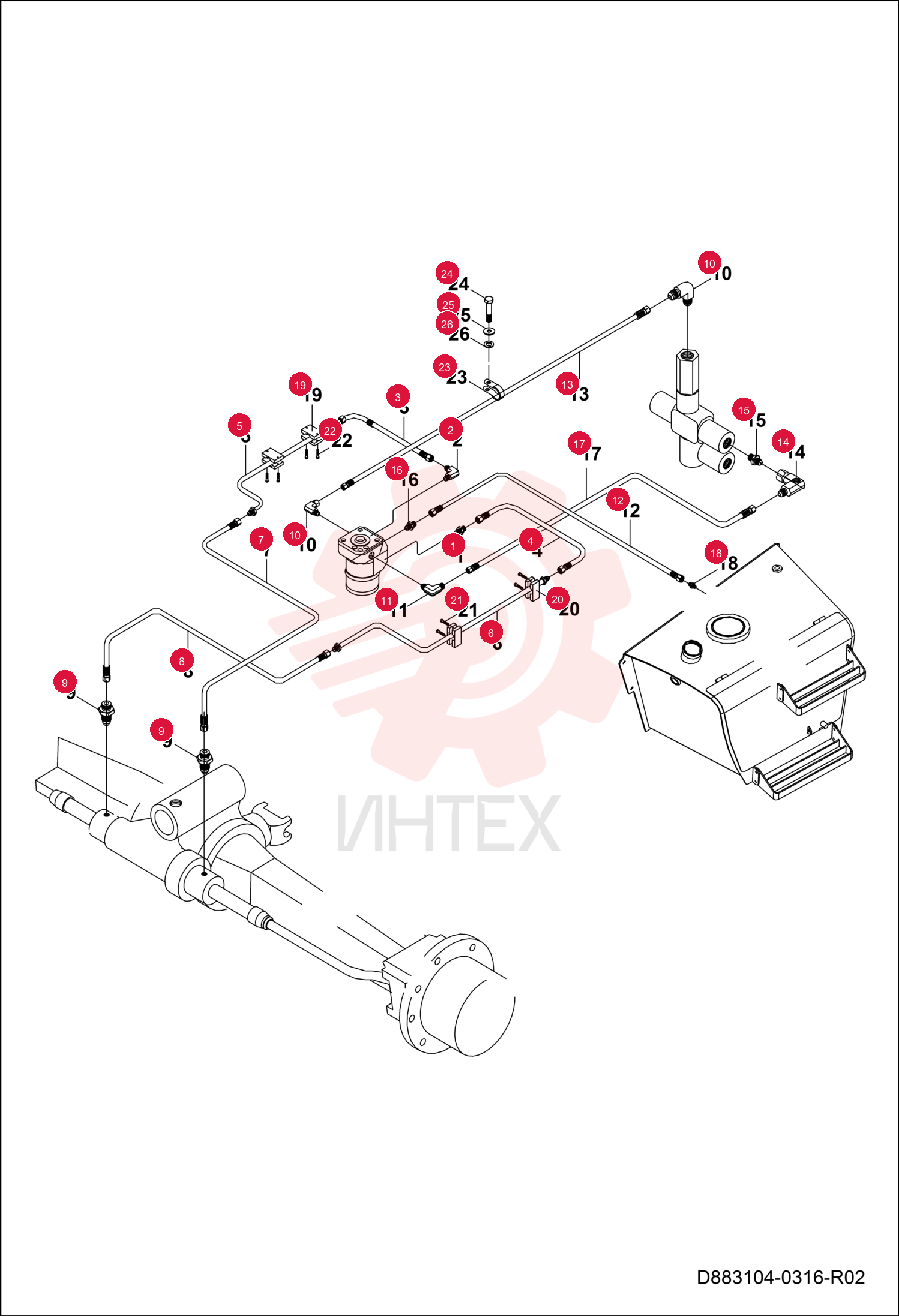

FITTING HYDRAULIC 7289718 (2)

FITTING HYDRAULIC 7289718 (2)

FITTING HYDRAULIC 7289718 (2)

1 7289718

  • 7289718 - FITTING HYDRAULIC

2 7289720

  • 7289720 - FITTING HYDRAULIC

3 7291378

  • 7291378 - HOSE

4 7291379

  • 7291379 - HOSE

5 7291380

  • 7291380 - STEERING PIPE-RIGHT

6 7291381

  • 7291381 - STEERING PIPE-LEFT

7 7291382

  • 7291382 - HOSE

8 7291383

  • 7291383 - HOSE

9 7289732

  • 7289732 - FITTING

10 7289717

  • 7289717 - FITTING HYDRAULIC

11 7289721

  • 7289721 - FITTING HYDRAULIC

12 7301987

  • 7301987 - HOSE

13 7292875

  • 7292875 - HOSE

14 7291387

  • 7291387 - FITTING

15 7291386

  • 7291386 - FITTING

16 7289719

  • 7289719 - FITTING HYDRAULIC

17 7292878

  • 7292878 - HOSE

18 7289724

  • 7289724 - FITTING HYDRAULIC

19 7291389

  • 7291389 - CLAMP

20 7291390

  • 7291390 - CLAMP

21 7291391

  • 7291391 - BOLT HEX

22 7291392

  • 7291392 - BOLT

23 7291393

  • 7291393 - CLAMP

24 7289691

  • 7289691 - BOLT HEX

25 7289278

  • 7289278 - WASHER FLAT

26 7289259

  • 7289259 - WASHER LOCK
