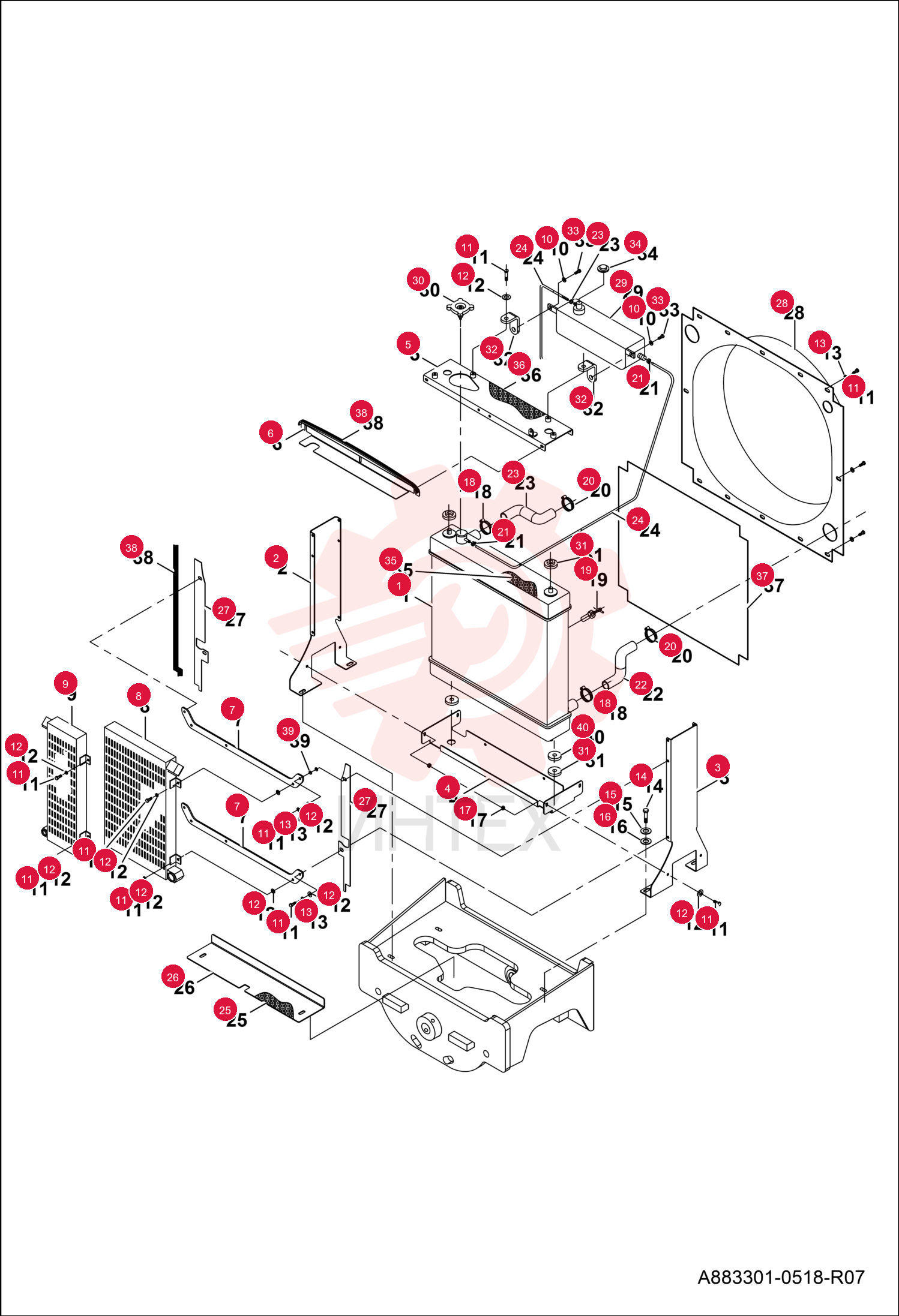

RADIATOR 7289236 (1)

RADIATOR 7289236 (1)

RADIATOR 7289236 (1)

1 7289236

  • 7289236 - RADIATOR

2 7290991

  • 7290991 - BRACKET LEFT

3 7290992

  • 7290992 - BRACKET RIGHT

4 7289239

  • 7289239 - BRACKET

5 7290993

  • 7290993 - BRACKET

6 7290994

  • 7290994 - BRACKET

7 7289244

  • 7289244 - BRACKET

8 7289237

  • 7289237 - RADIATOR

9 7289238

  • 7289238 - OIL COOLER

10 7289268

  • 7289268 - WASHER FLAT

11 7289273

  • 7289273 - BOLT HEX

12 7288892

  • 7288892 - WASHER FLAT

13 7288891

  • 7288891 - WASHER LOCK

14 7289258

  • 7289258 - BOLT HEX

15 7289259

  • 7289259 - WASHER LOCK

16 7289260

  • 7289260 - WASHER FLAT

17 7289263

  • 7289263 - NUT HEX

18 7289266

  • 7289266 - CLAMP

19 7289252

  • 7289252 - VALVE RELIEF

20 7289267

  • 7289267 - CLAMP

21 7289264

  • 7289264 - CLAMP HOSE

22 7290996

  • 7290996 - HOSE HYDRAULIC

23 7289249

  • 7289249 - HOSE RADIATOR

24 7304083

  • 7304083 - HOSE

25 7290424

  • 7290424 - ISOLATION

26 7290998

  • 7290998 - BRACKET

27 7299177

  • 7299177 - BRACKET

28 7353029

  • 7353029 - BRACKET

29 7291000

  • 7291000 - SHROUD FAN

30 7289255

  • 7289255 - TANK RESERVE

31 7293118

  • 7293118 - CAP RADIATOR

32 7289251

  • 7289251 - BUMPER RUBBER

33 7289257

  • 7289257 - BRACKET

34 7288896

  • 7288896 - BOLT HEX

35 7289256

  • 7289256 - CAP TANK

36 7291001

  • 7291001 - ISOLATION RUBBER

37 7291002

  • 7291002 - TAMPON

38 7291003

  • 7291003 - FRAME BAND

39 7291004

  • 7291004 - BELLOWS SEAL

40 7289272

  • 7289272 - BUSHING SPACER

41 7291005

  • 7291005 - RUBBER BUMPER
