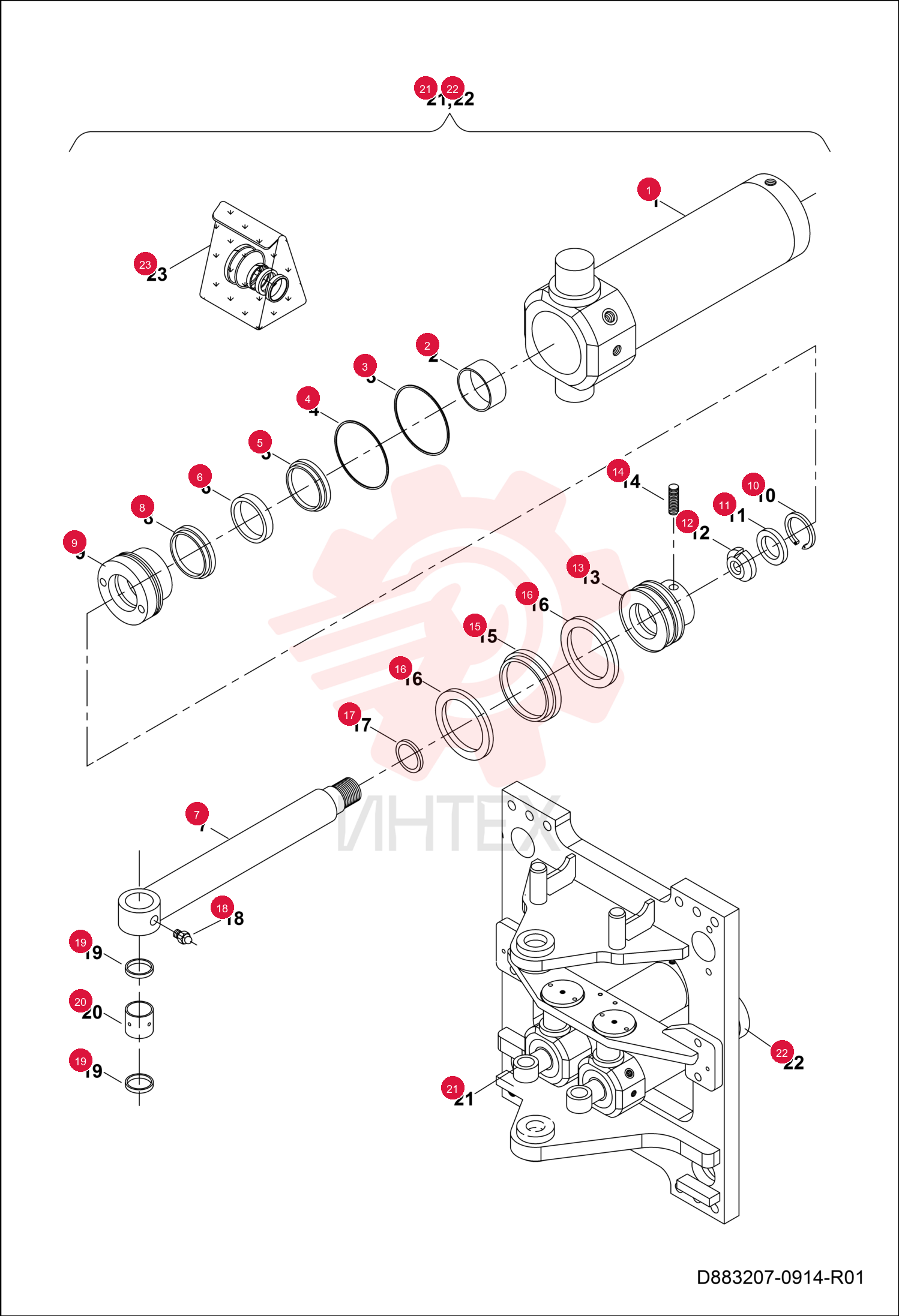

CYLINDER PIPE ASSY. 7289905

CYLINDER PIPE ASSY. 7289905

CYLINDER PIPE ASSY. 7289905

1 7289905

  • 7289905 - CYLINDER PIPE ASSY.

2 7289904

  • 7289904 - CYLINDER PIPE ASSY.

3 7289906

  • 7289906 - TEFLON RING

4 7289907

  • 7289907 - O-RING

5 7289908

  • 7289908 - BACK-UP RING

6 7289909

  • 7289909 - OMEGAT

7 7289845

  • 7289845 - NUT RING

8 7291589

  • 7291589 - ROD ASSEMBLY

9 7291589

  • 7291589 - ROD ASSEMBLY

10 7289911

  • 7289911 - SEAL DUST

11 7289912

  • 7289912 - GUIDE CYLINDER

12 7289913

  • 7289913 - SEGMENT

13 7289914

  • 7289914 - WASHER

14 7289915

  • 7289915 - WASHER FLAT

15 7289916

  • 7289916 - PISTON MOTOR TRAVEL

16 7289917

  • 7289917 - SCREW SET

17 7289879

  • 7289879 - OMEGAT

18 7289918

  • 7289918 - RING TEFLON

19 7289919

  • 7289919 - O-RING

20 7289862

  • 7289862 - FITTING GREASE

21 7289920

  • 7289920 - SEAL DUST

22 7289921

  • 7289921 - BUSHING SPACER

23 7289923

  • 7289923 - RIGHT SWING CYL. ASSY.

24 7289922

  • 7289922 - LEFT SWING CYL. ASSY.

25 7289924

  • 7289924 - KIT
  • REPAIR
