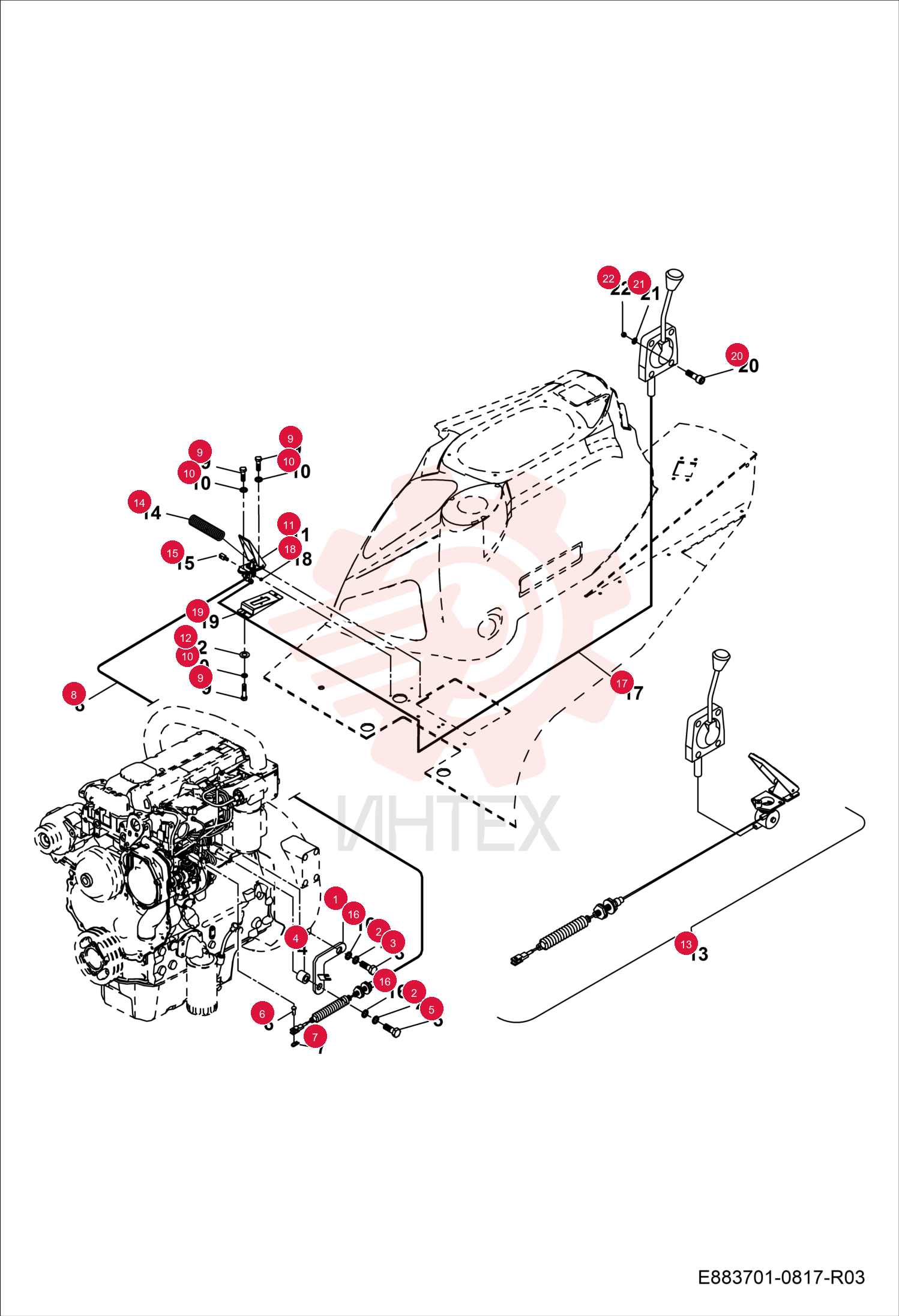

BRACKET 7290279 (2)

BRACKET 7290279 (2)

BRACKET 7290279 (2)

1 7290279

  • 7290279 - BRACKET

2 7288891

  • 7288891 - WASHER LOCK

3 7289261

  • 7289261 - BOLT HEX

4 7290283

  • 7290283 - BUSHING

5 7289799

  • 7289799 - BOLT

6 7292094

  • 7292094 - PIN CLEVIS

7 7290331

  • 7290331 - PIN LOCK

8 7292096

  • 7292096 - CABLE ACCELERATOR

9 7289595

  • 7289595 - BOLT HEX

10 7289610

  • 7289610 - WASHER FLAT

11 7292098

  • 7292098 - ACCELERATOR PEDAL

12 7289596

  • 7289596 - WASHER LOCK

13 7292101

  • 7292101 - ACCELERATOR PEDAL ASSY.

14 7304267

  • 7304267 - SPRING ACCELERATOR

15 7292104

  • 7292104 - HAND THROTTLE ROPE BRACKET

16 7288892

  • 7288892 - WASHER FLAT

17 7304085

  • 7304085 - THROTTLE LEVER ROPE

18 7289785

  • 7289785 - NUT HEX

19 7292105

  • 7292105 - PLATE

20 7290285

  • 7290285 - BOLT

21 7334436

  • 7334436 - WASHER

22 7290326

  • 7290326 - NUT HEX
