Bobcat
/
CT445
/

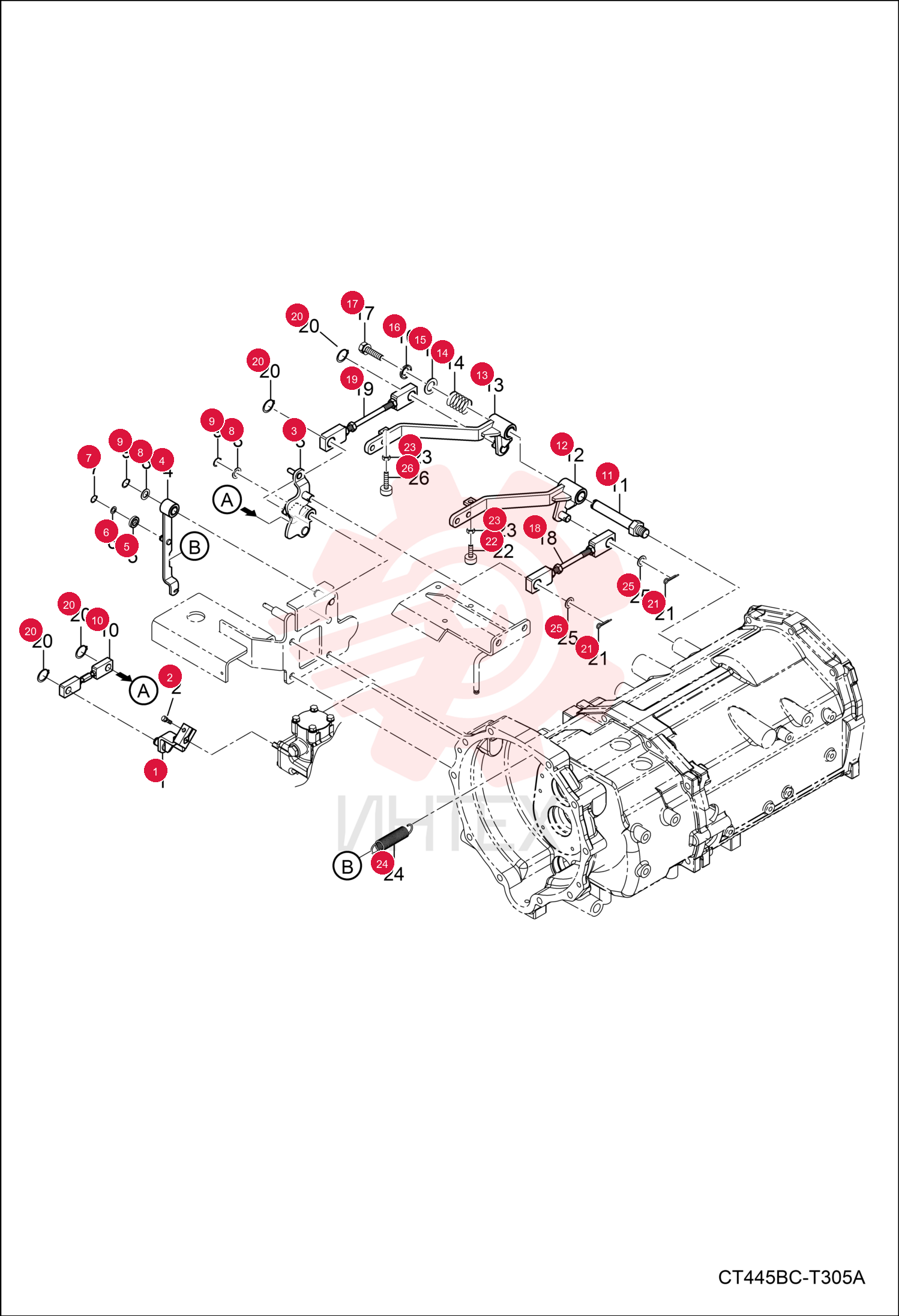

LEVER 7002578 (2)

LEVER 7002578 (2)

LEVER 7002578 (2)

1 7002578

  • 7002578 - LEVER

2 6695592

  • 6695592 - BOLT HEXAGON SOCKET

3 7002512

  • 7002512 - BRACKET

4 7002623

  • 7002623 - LEVER

5 7002470

  • 7002470 - BEARING

6 6694074

  • 6694074 - WASHER PLAIN

7 6697560

  • 6697560 - RING SNAP

8 6696913

  • 6696913 - WASHER
  • PLAIN

9 6696494

  • 6696494 - RING SNAP

10 7002640

  • 7002640 - ROD

11 7021779

  • 7021779 - SHAFT STAY PEDAL

12 7002009

  • 7002009 - ARM
  • PEDAL LH

13 7002024

  • 7002024 - ARM
  • PEDAL RH

14 7021776

  • 7021776 - SPRING

15 6694088

  • 6694088 - WASHER PLAIN

16 7021777

  • 7021777 - WASHER

17 6697053

  • 6697053 - BOLT

18 7002258

  • 7002258 - ROD
  • LH

19 7002345

  • 7002345 - ROD
  • RH

20 6696494

  • 6696494 - RING SNAP

21 6696372

  • 6696372 - PIN SNAP
  • Was 7002383

22 6695189

  • 6695189 - BOLT ADJUSTMENT

23 6652792

  • 6652792 - NUT
  • Was 6694053

24 7002088

  • 7002088 - SPRING
  • BRAKE

25 7002703

  • 7002703 - WASHER

26 7021778

  • 7021778 - BOLT ADJUSTING
