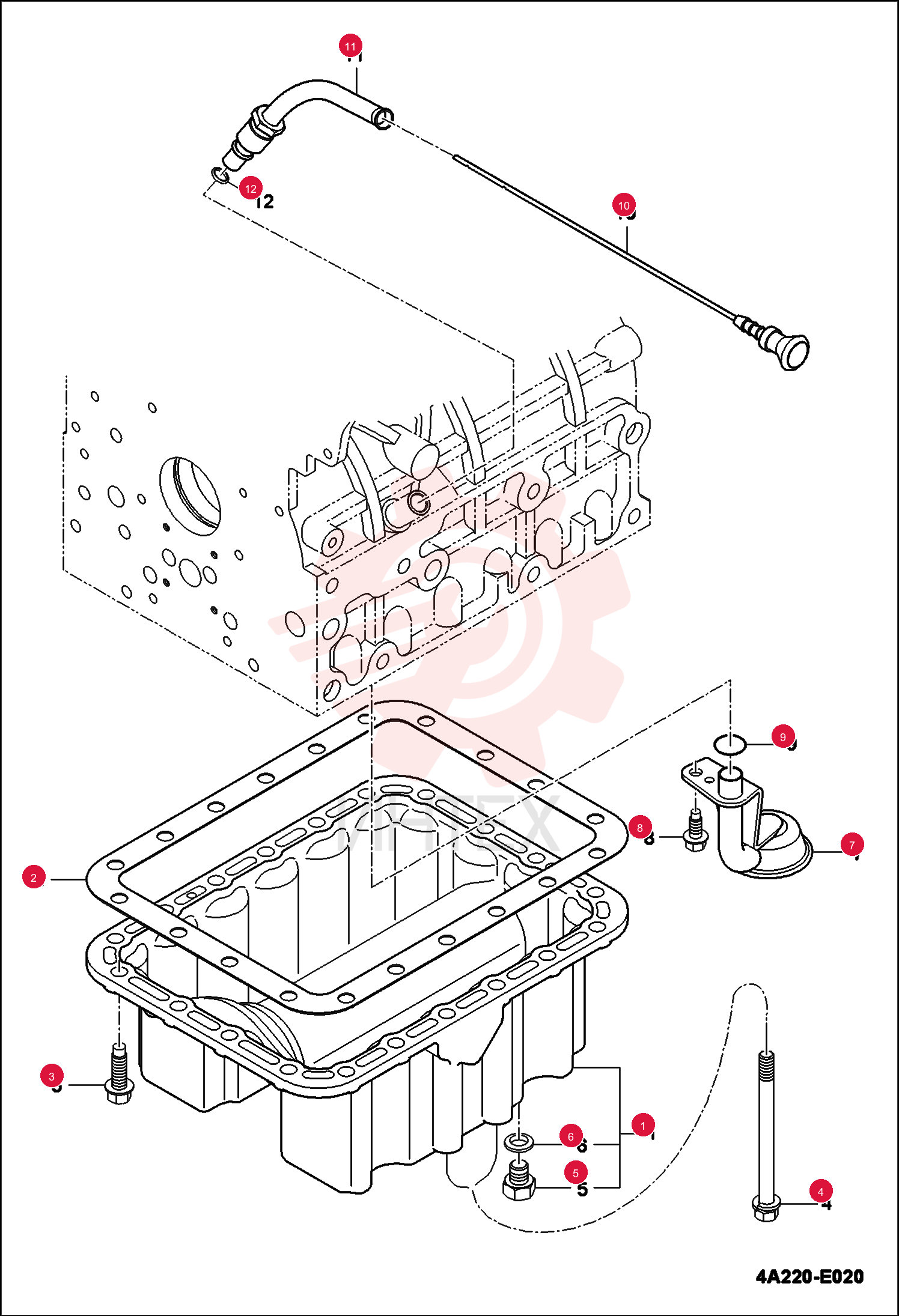

PAN, OIL 7002815 (2)

PAN, OIL 7002815 (2)

PAN, OIL 7002815 (2)

1 7002815

  • 7002815 - PAN
  • OIL
  • W/Ref. 5 & 6

2 7002813

  • 7002813 - GASKET
  • PAN OIL ENG

3 6697072

  • 6697072 - BOLT FLANGE

4 6695565

  • 6695565 - BOLT WITH WASHER

5 7254104

  • 7254104 - PLUG
  • Was 6694223 Was 6694223

6 6694126

  • 6694126 - WASHER SEAL

7 7002814

  • 7002814 - SCREEN
  • OIL ENG

8 6694022

  • 6694022 - FLANGE
  • BOLT

9 6694147

  • 6694147 - O-RING

10 6696062

  • 6696062 - GAUGE OIL

11 6696287

  • 6696287 - GUIDE
  • OIL GAUGE

12 6694769

  • 6694769 - SEAL
