Bobcat
/
CT445
/

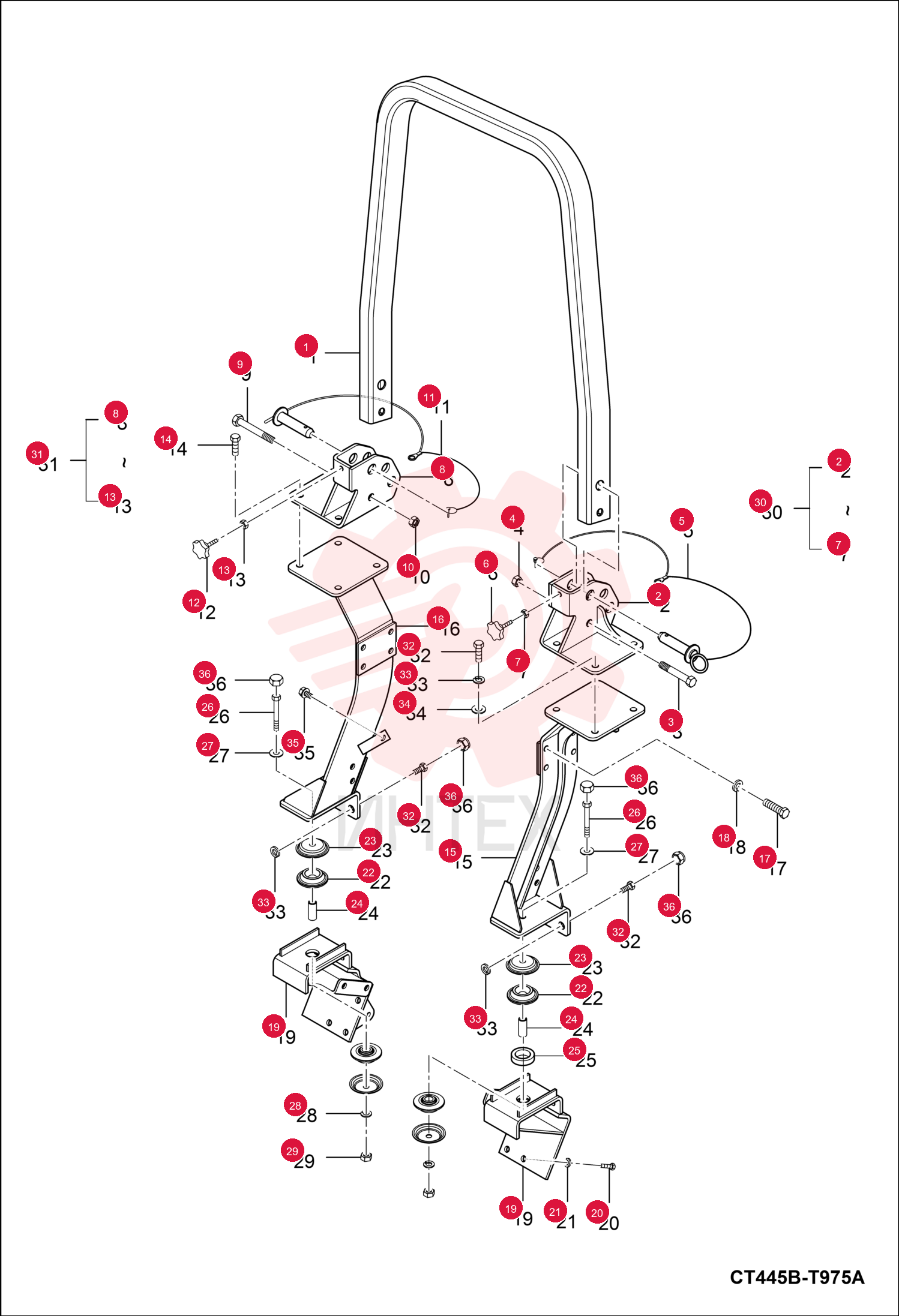

ROPS 7002642 (1)

ROPS 7002642 (1)

ROPS 7002642 (1)

1 7002642

  • 7002642 - ROPS

2 7002418

  • 7002418 - ROPS
  • SUPPORT LH

3 7002484

  • 7002484 - BOLT

4 7002587

  • 7002587 - NUT

5 7002046

  • 7002046 - PIN
  • ASSY

6 6694840

  • 6694840 - BOLT

7 6697458

  • 6697458 - NUT

8 7002419

  • 7002419 - ROPS
  • SUPPORT RH

9 7002484

  • 7002484 - BOLT

10 7002587

  • 7002587 - NUT

11 7002046

  • 7002046 - PIN
  • ASSY

12 6694840

  • 6694840 - BOLT

13 6697458

  • 6697458 - NUT

14 6693988

  • 6693988 - BOLT

15 7002917

  • 7002917 - SUPPORT
  • FENDER LH

16 7002918

  • 7002918 - SUPPORT
  • FENDER RH

17 6694002

  • 6694002 - BOLT

18 6694094

  • 6694094 - WASHER SPRING

19 7002950

  • 7002950 - HOLDER
  • CHECK CHAIN

20 6695549

  • 6695549 - BOLT

21 6694094

  • 6694094 - WASHER SPRING

22 6697202

  • 6697202 - WASHER
  • CUSHION

23 6697677

  • 6697677 - STOP

24 6696704

  • 6696704 - SPACER

25 7002523

  • 7002523 - COLLAR

26 7002798

  • 7002798 - BOLT

27 6694094

  • 6694094 - WASHER SPRING

28 7002315

  • 7002315 - WASHER
  • PLAIN

29 6694044

  • 6694044 - NUT

30 7002352

  • 7002352 - SUPPORT
  • ROPS LH
  • assy - Ref. 2-7

31 7002353

  • 7002353 - SUPPORT
  • ROPS RH
  • assy - Ref. 8-13

32 6694002

  • 6694002 - BOLT

33 6694094

  • 6694094 - WASHER SPRING

34 7002315

  • 7002315 - WASHER
  • PLAIN

35 6694027

  • 6694027 - BOLT FLANGE

36 7002283

  • 7002283 - CAP
  • NUT
