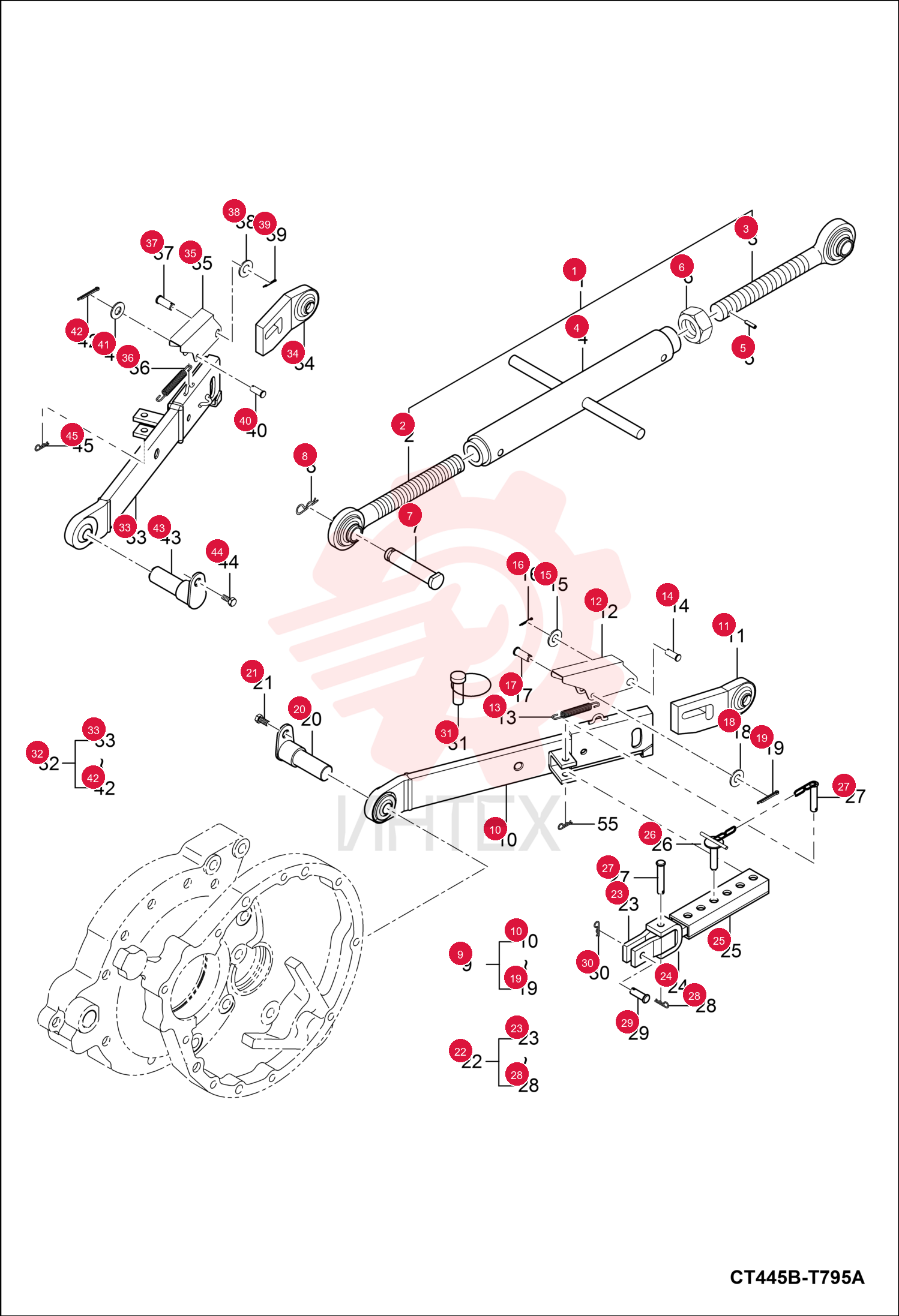

LINK, TOP 7002945 (2)

LINK, TOP 7002945 (2)

LINK, TOP 7002945 (2)

1 7002945

  • 7002945 - LINK
  • TOP
  • Ref. 2-6

2 6694356

  • 6694356 - JOINT
  • LINK TOP RH
  • RH thread

3 6694357

  • 6694357 - JOINT
  • LINK TOP LH
  • LH thread

4 7002438

  • 7002438 - LINK
  • TOP

5 7002805

  • 7002805 - PIN
  • SPRING

6 7002585

  • 7002585 - NUT

7 6697501

  • 6697501 - PIN
  • LINK TOP

8 6697495

  • 6697495 - PIN
  • SET

9 7002855

  • 7002855 - LINK
  • LOWER LH
  • assy - Ref. 10-19

10 7002856

  • 7002856 - LINK
  • LOWER LH

11 7001961

  • 7001961 - HOUSING
  • LOWER LINK LH

12 7002537

  • 7002537 - COVER

13 6696745

  • 6696745 - SPRING

14 6696345

  • 6696345 - PIN

15 6696915

  • 6696915 - WASHER PLAIN

16 6696918

  • 6696918 - PIN
  • SPLIT

17 6696363

  • 6696363 - PIN JOINT

18 6696912

  • 6696912 - WASHER PLAIN

19 6696380

  • 6696380 - PIN SPLIT

20 7002944

  • 7002944 - PIN
  • LINK LOWER

21 7002485

  • 7002485 - BOLT

22 7002913

  • 7002913 - SWAYBAR
  • assy - Ref. 23-28

23 6695355

  • 6695355 - BRACKET

24 7002914

  • 7002914 - BRACKET

25 7002575

  • 7002575 - HOUSING

26 6697347

  • 6697347 - PIN LOCK
  • 1 pin W/chain

27 6696365

  • 6696365 - PIN JOINT

28 6696375

  • 6696375 - PIN SNAP

29 6696329

  • 6696329 - PIN

30 6696372

  • 6696372 - PIN SNAP

31 6697495

  • 6697495 - PIN
  • SET

32 7002857

  • 7002857 - LINK
  • LOWER RH
  • assy - Ref. 33-42

33 7002858

  • 7002858 - LINK
  • LOWER RH

34 7002262

  • 7002262 - HOUSING
  • LINK LOWER RH

35 7002537

  • 7002537 - COVER

36 6696745

  • 6696745 - SPRING

37 6696345

  • 6696345 - PIN

38 6696915

  • 6696915 - WASHER PLAIN

39 6696918

  • 6696918 - PIN
  • SPLIT

40 6696363

  • 6696363 - PIN JOINT

41 6696912

  • 6696912 - WASHER PLAIN

42 6696380

  • 6696380 - PIN SPLIT

43 7002944

  • 7002944 - PIN
  • LINK LOWER

44 7002485

  • 7002485 - BOLT

45 6696375

  • 6696375 - PIN SNAP
