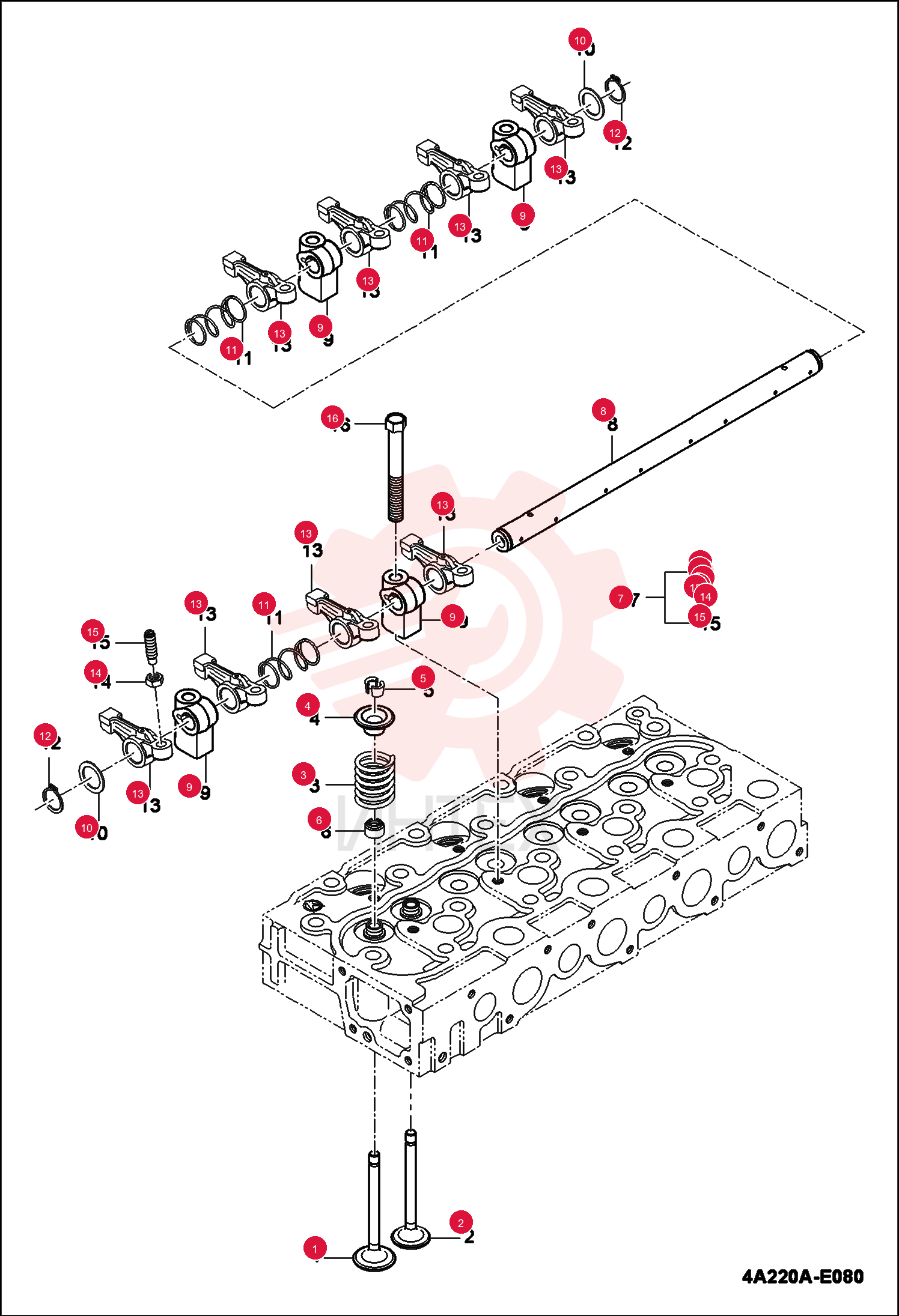

VALVE, INTAKE 6696154 (1)

VALVE, INTAKE 6696154 (1)

VALVE, INTAKE 6696154 (1)

1 6696154

  • 6696154 - VALVE
  • INTAKE

2 6695896

  • 6695896 - VALVE EXHAUST

3 6696888

  • 6696888 - SPRING VALVE

4 6696478

  • 6696478 - RETAINER VALVE SPRING

5 7012882

  • 7012882 - RETAINER
  • VALVE SPRING
  • Was 6695779

6 6696889

  • 6696889 - SEAL VALVE STEM

7 7002821

  • 7002821 - SHAFT
  • ROCKER ARM

8 6696499

  • 6696499 - BRACKET ROCKER ARM

9 6696407

  • 6696407 - WASHER

10 6696500

  • 6696500 - SPRING ROCKER ARM

11 6694108

  • 6694108 - RING SNAP

12 6696498

  • 6696498 - ARM ROCKER

13 6695274

  • 6695274 - NUT
  • ADJUSTING

14 6696560

  • 6696560 - SCREW ADJUSTING

15 7000235

  • 7000235 - BOLT
