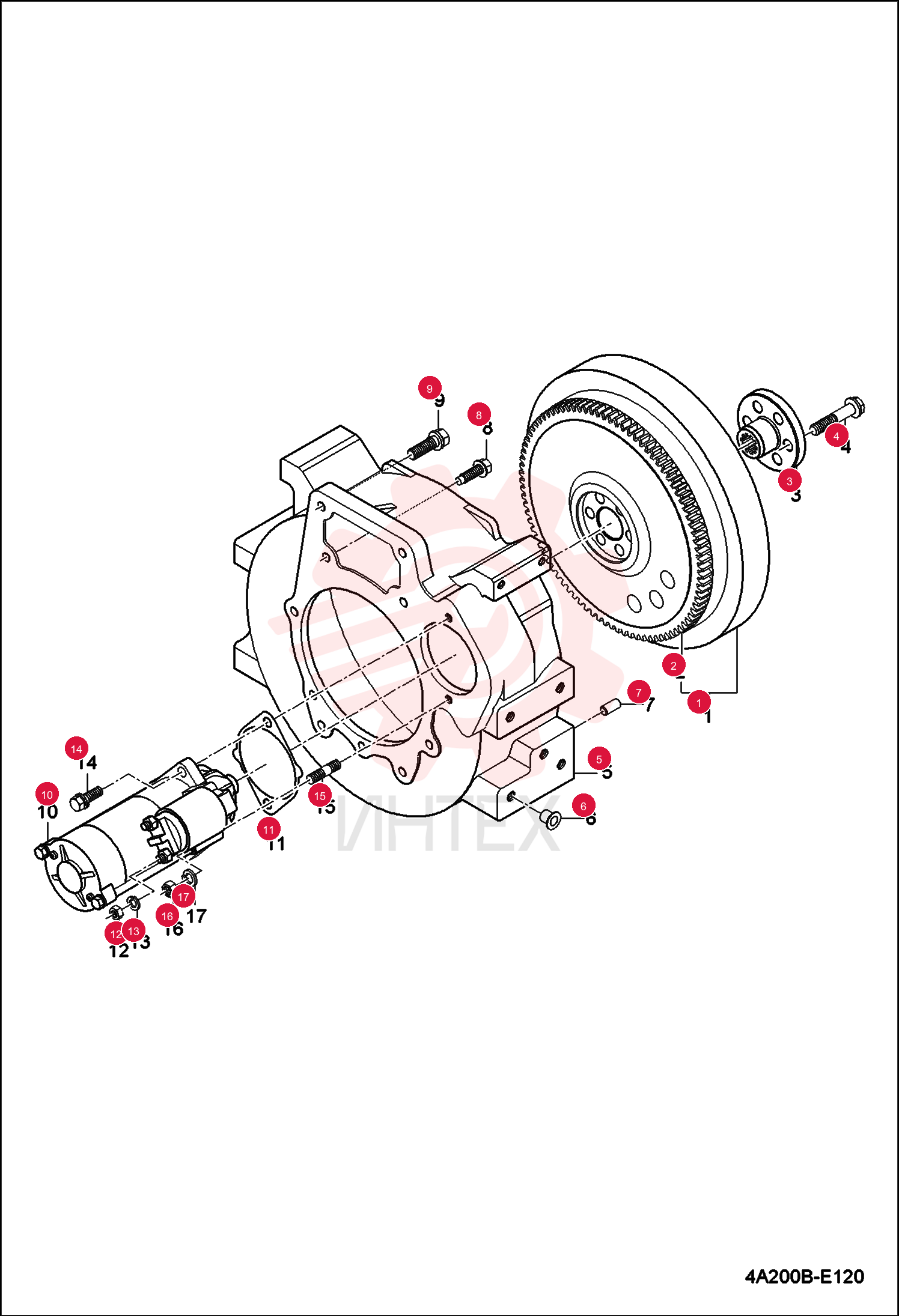

FLYWHEEL ENGINE ASSEMBLY 7012884

FLYWHEEL ENGINE ASSEMBLY 7012884

FLYWHEEL ENGINE ASSEMBLY 7012884

1 7012884

  • 7012884 - FLYWHEEL ENGINE ASSEMBLY
  • W/Ref. 2

2 6696485

  • 6696485 - GEAR
  • RING

3 7012875

  • 7012875 - HUB
  • SPLINE

4 7012874

  • 7012874 - BOLT
  • FLYWHEEL

5 7002178

  • 7002178 - HOUSING
  • FLYWHEEL

6 6694351

  • 6694351 - PLUG

7 6694027

  • 6694027 - BOLT FLANGE

8 6697072

  • 6697072 - BOLT FLANGE

9 6693988

  • 6693988 - BOLT

10 7012886

  • 7012886 - STARTER
  • Valeo E6864-63011

11 6695348

  • 6695348 - STARTER
  • Valeo E5500-6301

12 6695950

  • 6695950 - GASKET

13 6652792

  • 6652792 - NUT
  • Was 6694053

14 6697775

  • 6697775 - WASHER SPRING

15 6693982

  • 6693982 - BOLT

16 6696777

  • 6696777 - STUD

17 27DM10

  • 27DM10 - NUT
  • Was 6694059

18 6694093

  • 6694093 - WASHER SPRING
